73450 (315-8) - Toro Garden Tractor (SN: 270000001 - 270999999) (2007) Wheel Assembly Parts Diagram

Garden Tractor

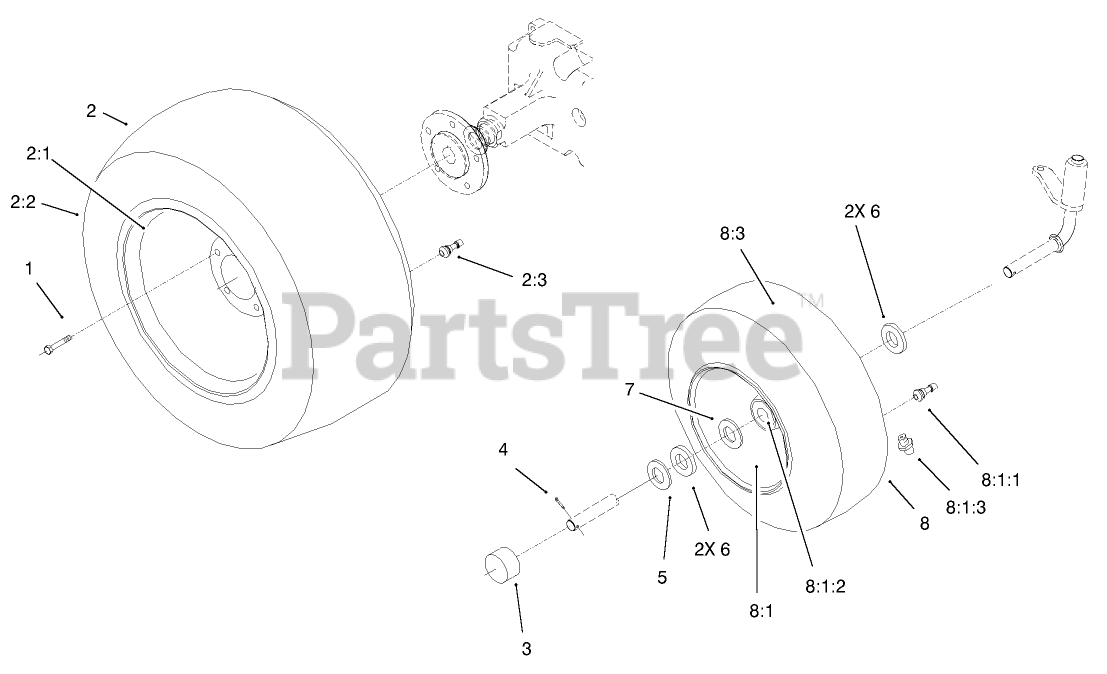

Wheel Assembly Parts Diagram

  • Title

1

Toro 83-2720

BOLT-LUG

$4.49

$

In Stock, only 3 left!

0

2

Tire ASM

Note: Not serviced separately

$

$

Not available

2:1

Toro 111516

WHEEL

$325.99

$

Usually ships in 3-6 days

0

2:2

Toro 116744

See Supercession: 116-5363
(Superseded to 116-5363)

$223.99

$

Usually ships in 3-6 days

0

2:3

Toro 5108

VALVE

$7.99

$

In Stock, only 4 left!

0

3

Toro 61-9780

CAP-HUB

$8.99

$

In Stock, Qty 20+

0

4

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, only 3 left!

0

5

Toro 28-2480

WASHER-PLAIN

$5.49

$

In Stock, Qty 18

0

6

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

7

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

8

Front Wheel ASM

Note: Not serviced separately

$

$

Not available

8:1

Toro 93-9801

WHEEL ASM

$272.99

$

Usually ships in 3-6 days

0

8:1:1

Toro 5108

VALVE

$7.99

$

In Stock, only 4 left!

0

8:1:2

Toro 110513

BEARING-WHEEL

$23.99

$

In Stock, Qty 20+

0

8:1:3

Toro 109500

ZERK-GREASE

$4.49

$

Usually ships in 3-6 days

0

8:3

Toro 117127

TIRE (16 X 6.5-8) 2-PLY -2 WHEEL AXEL

$

$

Not available
