735009 - Ariens Dethatcher Attachment Dethatcher Parts Diagram

Dethatcher Attachment

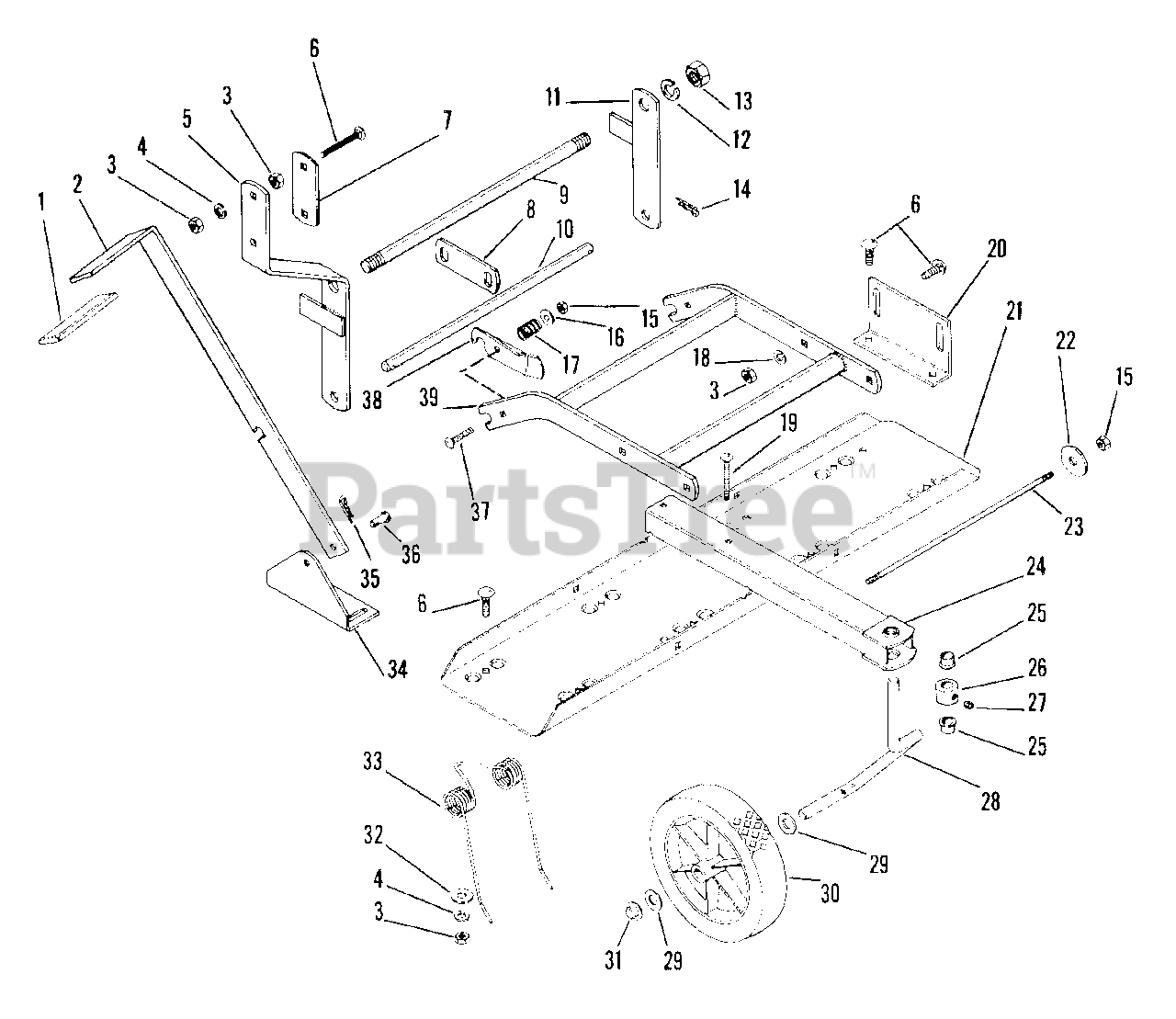

Dethatcher Parts Diagram

  • Title

1

Ariens 07515100

GRIP-VINYL

$

$

Not available

2

Ariens 03555900

LIFT HANDLE

$

$

Not available

3

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

4

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03555500

BRACKET ASSY R.H.

$

$

Not available

6

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 13

0

7

Ariens 03556100

STRAP-HANDLE

$

$

Not available

8

Ariens 03556200

TIE STRAP

$

$

Not available

9

Ariens 03555800

MOUNTING ROD

$

$

Not available

10

Ariens 03555700

PIVOT ROD

$

$

Not available

11

Ariens 03555600

STRAP ASSY L.H.

$

$

Not available

12

Ariens 06301000

WSHR-LK .563X.141 MED PL
(Superseded to 06307300)

$1.49

$

In Stock, Qty 18

0

13

Ariens 06500700

NUT-HEX .625-11
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

14

Ariens 06703700

PIN-HAIR EXT .12X.31X2.37 PL
(Superseded to 06711900)

$2.99

$

In Stock, only 3 left!

0

15

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

In Stock, only 2 left!

0

17

Ariens 08322300

SG-COMP .062X.462X.75
(Superseded to 08321700)

$9.49

$

Usually ships in 4-12 days

0

18

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 10

0

19

Ariens 06209100

BLT-RDHDSQNK .25-20X2.50 PL
(Superseded to 06223200)

$

$

Not available

20

Ariens 02740900

BRACKET-FRAME MOUNT

$

$

Not available

21

Ariens 03556000

TINE TRAY

$

$

Not available

22

Ariens 06406100

WSHR-FL-STL .380X1.50X.062 PL
(Superseded to 06439300)

$3.49

$

In Stock, Qty 12

0

23

Ariens 03555200

ROD-TINE

$

$

Not available

24

Ariens 02740800

WHEEL SUPPORT ASSY

$

$

Not available

25

Ariens 05514100

BSHG-FLG .500X.562X.687 NY

$5.99

$

Usually ships in 4-12 days

0

26

Ariens 02741700

LOCKING COLLAR

$

$

Not available

27

Ariens 06000600

SCR-SET .32-18X.25 SKHCUP OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

28

Ariens 02741200

AXLE-WHEEL

$

$

Not available

29

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 07116600

WHL
(Superseded to 07114400)

$

$

Not available

31

Ariens 02108600

SHOE KIT 2" 1335

$

$

Not available

32

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

33

Ariens 02741600

SPRING TINE

$6.49

$

Usually ships in 4-12 days

0

34

Ariens 03555300

LIFT BRACKET

$

$

Not available

35

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 17

0

36

Ariens 02530100

CLEVIS PIN

$

$

Not available

37

Ariens 06202100

BLT-RDHDSQNK .25-20X1.50 SHTPL

$

$

Not available

38

Ariens 01135700

AXLE LOCK

$31.99

$

Usually ships in 4-12 days

0

39

Ariens 03555400

MOUNTING BRACKET

$

$

Not available
