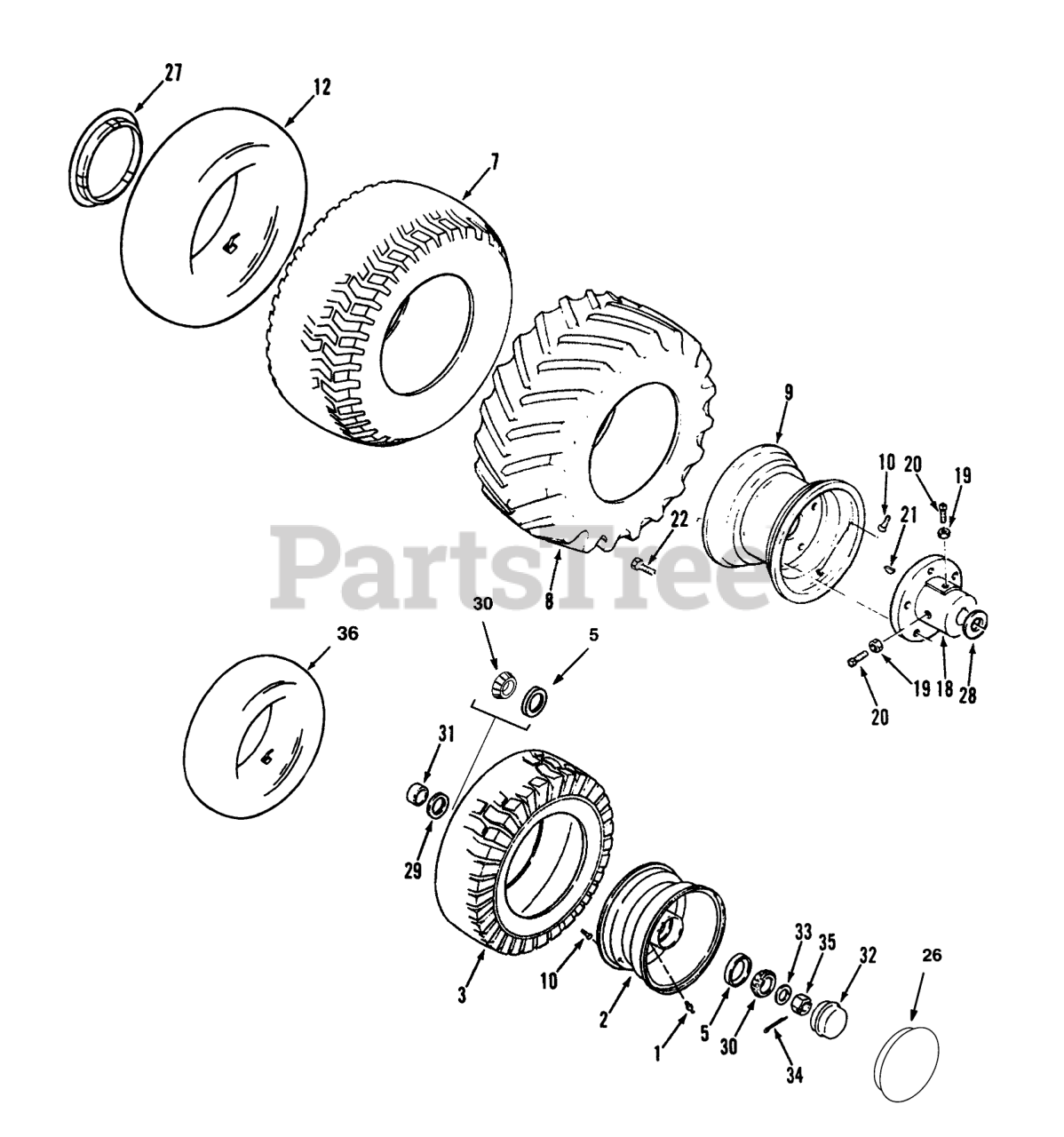

73501 (520-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) WHEEL AND TIRES Parts Diagram

Garden Tractor

WHEEL AND TIRES Parts Diagram

  • Title

1

Toro 109500

ZERK-GREASE

$3.49

$

Usually ships in 3-6 days

0

2

Toro 117287

Wheel-Front (Includes Item 1 & Qty. 2 of Item 5)

$

$

Not available

3

Toro 116867

TIRE-16 X 7.50 TURF

$

$

Not available

5

Toro 112821

Cup
(Superseded to 254-72)

$9.99

$

In Stock, Qty 20+

0

7

Toro 116971

TIRE 23 X 10.50-12

$

$

Not available

8

Toro 7607

Tire-Cleat, Rear
(Superseded to 110934)

$

$

Not available

9

Toro 110680

RIM ASM

$

$

Not available

Toro 110677

WHEEL

$

$

Not available

10

Toro 5108

VALVE

$6.99

$

In Stock, Qty 13

0

12

Toro 109546

Rear Tube
(Superseded to 231-90)

$110.99

$

Usually ships in 3-6 days

0

Toro 100291

Tube Cleat Tires
(Superseded to 231-90)

$110.99

$

Usually ships in 3-6 days

0

18

Toro 105763

Hub Rear
(Superseded to 105763-03)

$165.99

$

Usually ships in 3-6 days

0

19

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

20

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

21

Toro 937108

KEY-WOODRUFF

$4.99

$

In Stock, Qty 11

0

22

Toro 83-2720

BOLT-LUG

$3.99

$

Usually ships in 3-6 days

0

26

Toro 114427

8"-HUB CAP LOGO

$

$

Not available

27

Toro 114428

12"-HUB CAP LOGO

$

$

Not available

28

Toro 106826

WASHER-THRUST

$11.99

$

In Stock, Qty 5

0

29

Toro 112822

Seal
(Superseded to 93-9807)

$26.99

$

In Stock, only 3 left!

0

30

Toro 112823

Bearing
(Superseded to 254-94)

$9.49

$

In Stock, Qty 13

0

31

Toro 112824

SPACER

$15.99

$

In Stock, only 2 left!

0

32

Toro 112825

DUST CAP

$

$

Not available

33

Toro 920225

Washer
(Superseded to 9202254)

$3.49

$

In Stock, only 2 left!

0

34

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

35

Toro 32136-5

NUT-HEX, SLOTTED

$7.99

$

In Stock, only 2 left!

0

36

Toro 100079

TUBE

$

$

Not available
