73501 (520-H) - Toro Garden Tractor (SN: 059002869 - 059002946) (1995) Belt Guard And Footrest Assembly Parts Diagram

Garden Tractor

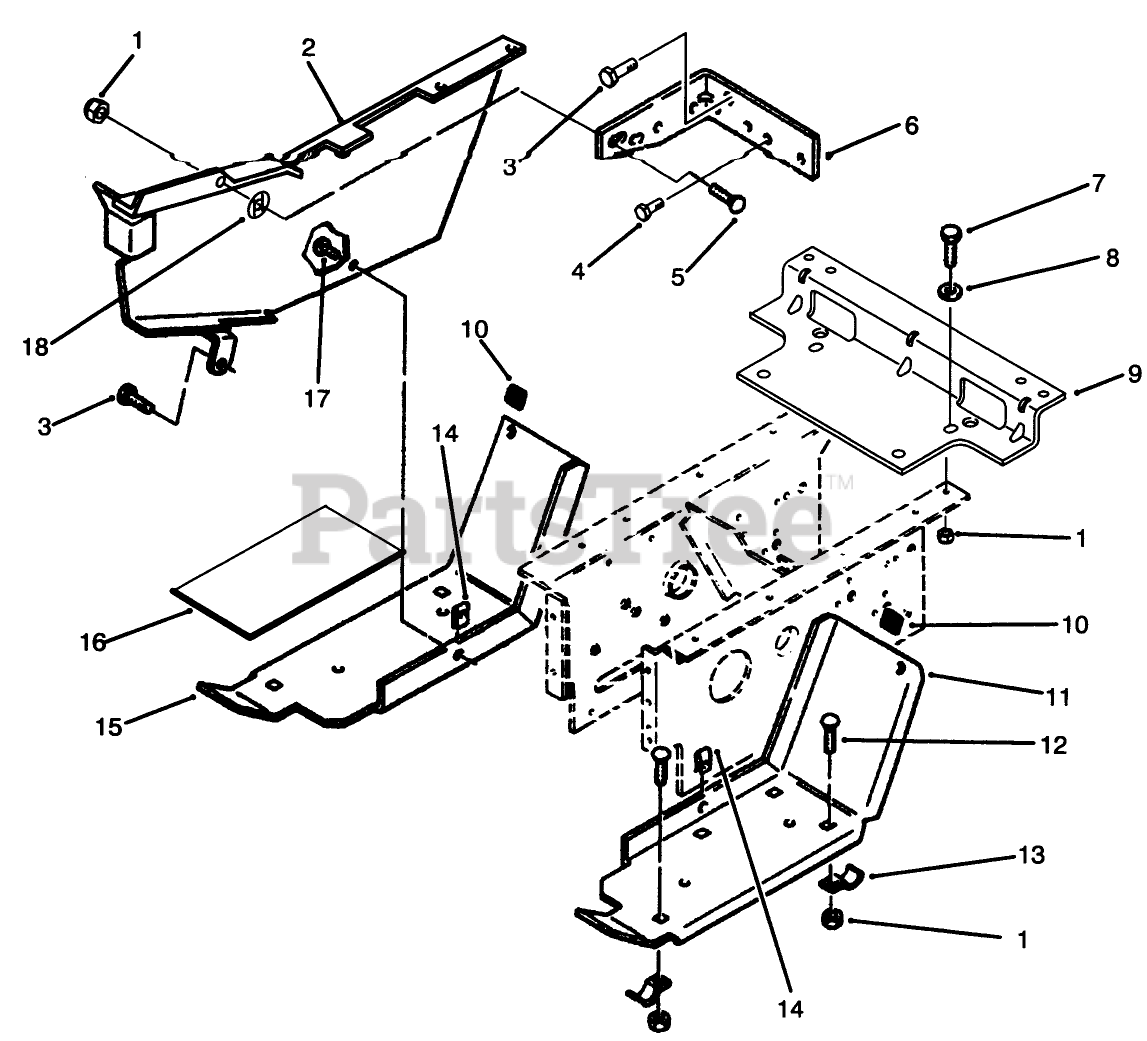

Belt Guard And Footrest Assembly Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 92-1527

GUARD - BELT WA *R

$

$

Not available

3

Toro 9266944

See Supercession: 926694
(Superseded to 92-6694)

$

$

Not available

4

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

5

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Toro 109554

BRACKET-BELT*B

$

$

Not available

7

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

9

Toro 113023

DISCONTINUED

$

$

Not available

10

Toro 518211

BUMPER

$4.49

$

In Stock, only 2 left!

0

11

Toro 106223

FOOTREST LH *R

$

$

Not available

12

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

13

Toro 7456

BRACKET

$

$

Not available

14

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Toro 106222

See Supercession: 106222-01
(Superseded to 106222-01)

$

$

Not available

16

Toro 110635

DISCONTINUED

$

$

Not available

Toro 110634

RH FOOTREST MAT

Note: Not illustrated

$

$

Not available

17

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

18

Toro 108457

DISCONTINUED

$

$

Not available
