73501 (520-H) - Toro Garden Tractor (SN: 059002869 - 059002946) (1995) Governor Parts Diagram

Garden Tractor

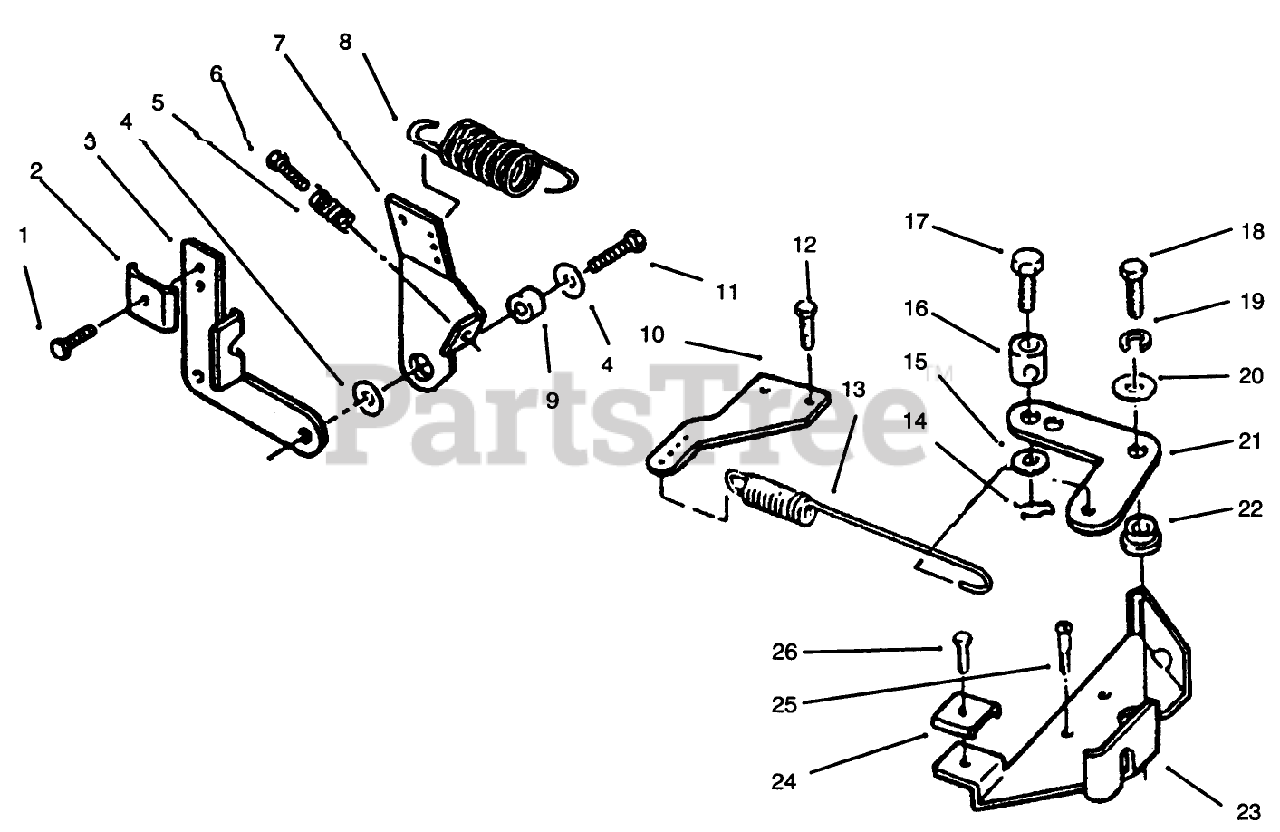

Governor Parts Diagram

  • Title

1

Toro 72-3900

SCREW-TAPPING

$

$

Not available

2

Toro 57-9190

CLIP

$

$

Not available

3

Toro NN10508

See Supercession: 57-9150
(Superseded to 57-9150)

$

$

Not available

4

Toro 59-0830

WASHER-FLAT

$

$

Not available

5

Toro 59-1030

SCREW-TAP

$

$

Not available

6

Toro 59-0430

SPRING

$

$

Not available

7

Toro 79-6370

DISCONTINUED

$

$

Not available

8

Toro 57-9100

DISCONTINUED

$

$

Not available

9

Toro 57-9120

BUSHING

$

$

Not available

10

Toro 79-6420

DISCONTINUED

$

$

Not available

11

Toro NN10357

See Supercession: 59-0830
(Superseded to 59-0830)

$

$

Not available

12

Toro 59-1050

SCREW-TAPPING PAN HD

$

$

Not available

13

Toro NN10932

DISCONTINUED

$

$

Not available

14

Toro 59-0720

PIN-COTTER

$

$

Not available

15

Toro 201270

DISCONTINUED

$

$

Not available

16

Toro 57-9120

BUSHING

$

$

Not available

17

Toro 72-3890

SCREW

$

$

Not available

18

Toro 82-1370

DISCONTINUED

$

$

Not available

19

Toro 82-1620

WASHER-LOCK, SPRING

$

$

Not available

20

Toro 59-0830

WASHER-FLAT

$

$

Not available

21

Toro 201256

See Supercession: 79-6410
(Superseded to 79-6410)

$

$

Not available

22

Toro 79-6400

DISCONTINUED

$

$

Not available

23

Toro 79-6390

BRKT-GOVERNOR CONTRL

$

$

Not available

24

Toro 57-9190

CLIP

$

$

Not available

25

Toro 59-1010

SCREW-HWH

$

$

Not available

26

Toro 201327

HEX HD CAP SCREW

$

$

Not available
