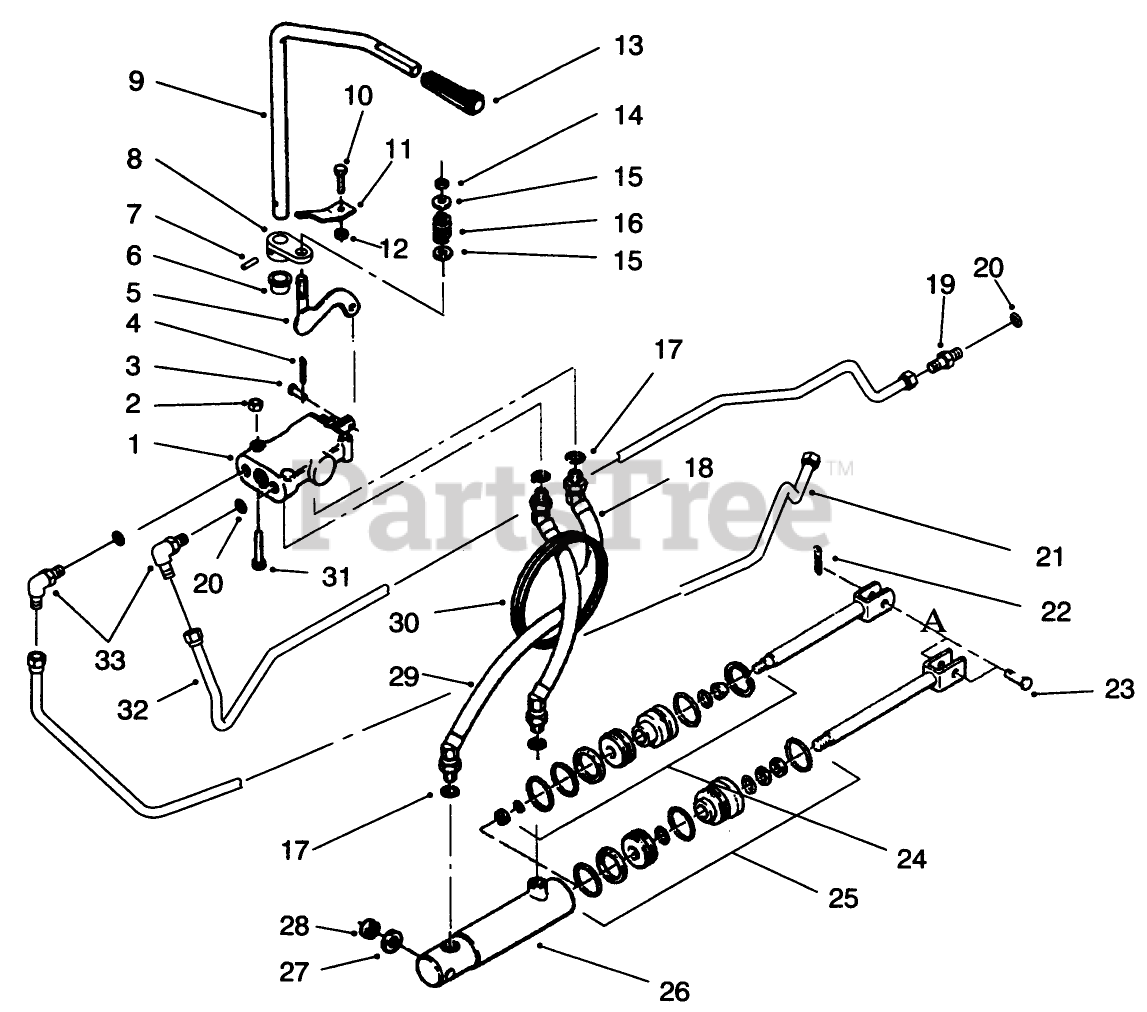

73501 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Hydraulic Control System Parts Diagram

Garden Tractor

Hydraulic Control System Parts Diagram

  • Title
1

Toro 114000

DISCONTINUED

Note: Note: In Illustration Center lines A Continue on next paqe

$

$

Not available

2

Toro 3296-42

NUT-LOCK, NI

Note: Note: In Illustration Center lines A Continue on next paqe

$0.99

$

In Stock, Qty 20+

0

3

Toro 9321204

PIN-CLEVIS

Note: Note: In Illustration Center lines A Continue on next paqe

$5.49

$

Usually ships in 3-6 days

0

4

Toro 3272-1

PIN-COTTER

Note: Note: In Illustration Center lines A Continue on next paqe

$0.99

$

In Stock, Qty 9

0

5

Toro 78-5640

DISCONTINUED

Note: Note: In Illustration Center lines A Continue on next paqe

$

$

Not available

6

Toro 5983

BUSHING-NYLINER

Note: Note: In Illustration Center lines A Continue on next paqe

$7.49

$

In Stock, Qty 7

0

7

Toro 933198

SPIROL PIN 7/32X7/8

Note: Note: In Illustration Center lines A Continue on next paqe

$1.99

$

Usually ships in 3-6 days

0

8

Toro 116302

ARM-CONTROL

Note: Note: In Illustration Center lines A Continue on next paqe

$

$

Not available

9

Toro 117328

DISCONTINUED

Note: Note: In Illustration Center lines A Continue on next paqe

$

$

Not available

10

Toro 321-4

SCREW-HH

Note: Note: In Illustration Center lines A Continue on next paqe

$1.49

$

In Stock, Qty 20+

0

11

Toro 116305

BRACKET-CONTROL R *B

Note: Note: In Illustration Center lines A Continue on next paqe

$8.49

$

Usually ships in 3-6 days

0

12

Toro 3296-42

NUT-LOCK, NI

Note: Note: In Illustration Center lines A Continue on next paqe

$0.99

$

In Stock, Qty 20+

0

13

Toro 116634

DISCONTINUED
(Superseded to 94-6694)

Note: Note: In Illustration Center lines A Continue on next paqe

$

$

Not available

14

Toro 3296-29

NUT-LOCK, NI

Note: Note: In Illustration Center lines A Continue on next paqe

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

Note: Note: In Illustration Center lines A Continue on next paqe

$2.49

$

In Stock, Qty 18

0

16

Toro 104841

SPRING

Note: Note: In Illustration Center lines A Continue on next paqe

$2.49

$

In Stock, only 2 left!

0

17

Toro 973310

O RING

Note: Note: In Illustration Center lines A Continue on next paqe

$6.99

$

Usually ships in 3-6 days

0

18

Toro 110125

See Supercession: 99-5373
(Superseded to 99-5373)

Note: Note: In Illustration Center lines A Continue on next paqe

$205.99

$

Usually ships in 3-6 days

0

19

Toro 102628

FITTING

Note: Note: In Illustration Center lines A Continue on next paqe

$

$

Not available

20

Toro 973370

See Supercession: 237-42
(Superseded to 237-42)

Note: Note: In Illustration Center lines A Continue on next paqe

$3.49

$

In Stock, Qty 20+

0

21

Toro 86-9280

TUBE-HYD PRESSURE

Note: Note: In Illustration Center lines A Continue on next paqe

$149.99

$

Usually ships in 3-6 days

0

22

Toro 3272-11

PIN-COTTER

Note: Note: In Illustration Center lines A Continue on next paqe

$1.49

$

In Stock, Qty 7

0

23

Toro 9329974

Pin-Clevis

Note: Note: In Illustration Center lines A Continue on next paqe

$

$

Currently unavailable

24

Toro 101699

S/A O-RING&GASKET AS

Note: Note: In Illustration Center lines A Continue on next paqe

$184.99

$

Usually ships in 3-6 days

0

25

Toro 109088

DISCONTINUED

Note: Note: In Illustration Center lines A Continue on next paqe

$

$

Not available

26

Toro 119340

DISCONTINUED

Note: Note: In Illustration Center lines A Continue on next paqe

$

$

Not available

27

Toro 9202324

WASHER

Note: Note: In Illustration Center lines A Continue on next paqe

$1.99

$

In Stock, only 3 left!

0

28

Toro 101757

SPACER-OUTER

Note: Note: In Illustration Center lines A Continue on next paqe

$6.99

$

In Stock, only 1 left!

0

29

Toro 110124

See Supercession: 99-5372
(Superseded to 99-5372)

Note: Note: In Illustration Center lines A Continue on next paqe

$205.99

$

Usually ships in 3-6 days

0

30

Toro 106267

GROMMET

Note: Note: In Illustration Center lines A Continue on next paqe

$

$

Not available

31

Toro 321-11

SCREW-HH

Note: Note: In Illustration Center lines A Continue on next paqe

$0.99

$

In Stock, Qty 20+

0

32

Toro 94-1802

DISCONTINUED

Note: Note: In Illustration Center lines A Continue on next paqe

$

$

Not available

33

Toro 108365

See Supercession: 103-1802
(Superseded to 103-1802)

Note: Note: In Illustration Center lines A Continue on next paqe

$26.99

$

In Stock, only 2 left!

0

Toro 109081

DISCONTINUED

Note: Note: In Illustration Center lines A Continue on next paqe

$

$

Not available

Toro 109081

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 100571

DISCONTINUED

Note: Note: In Illustration Center lines A Continue on next paqe

$

$

Not available

Toro 100571

DISCONTINUED

Note: Not illustrated

$

$

Not available
