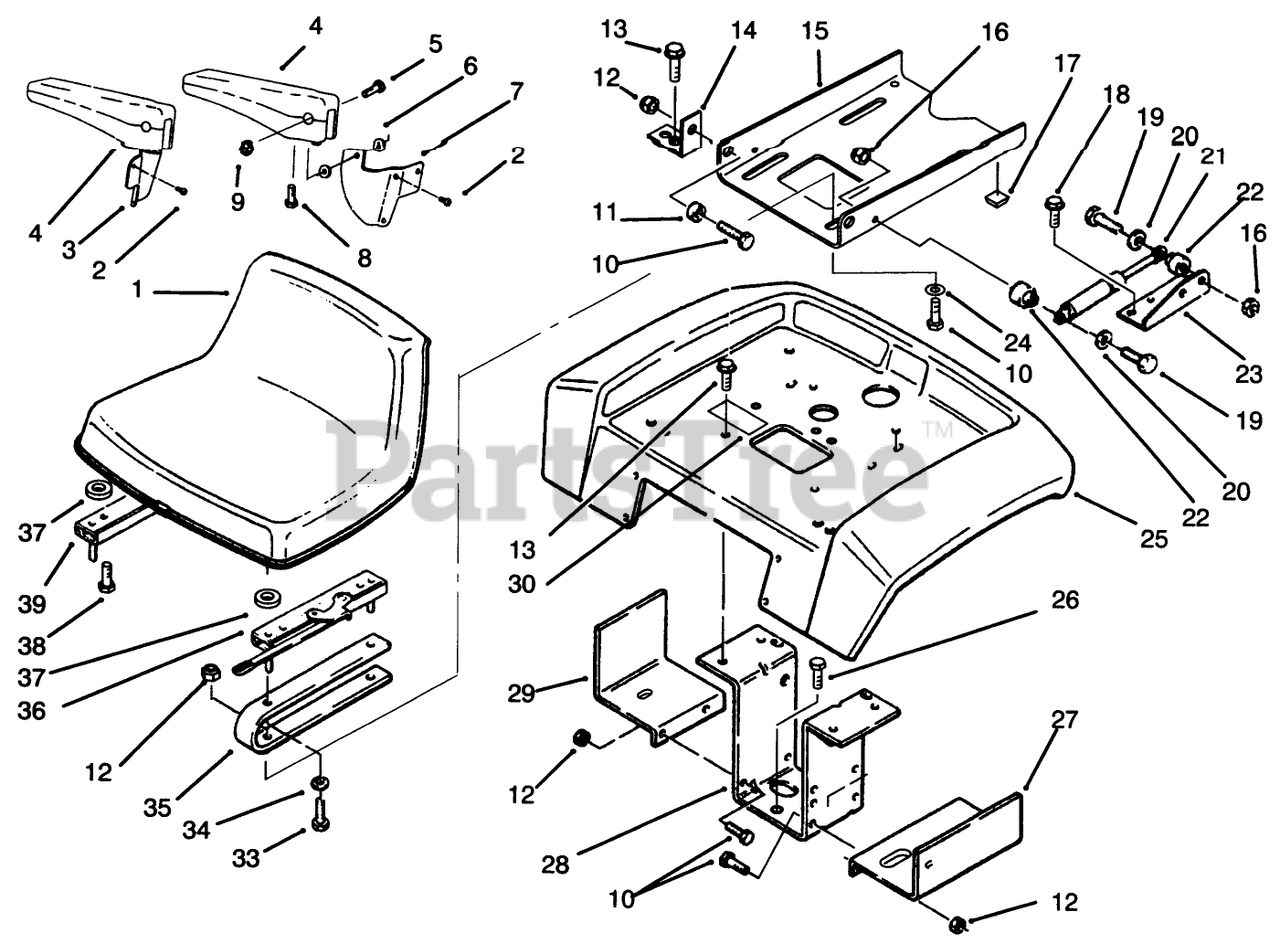

73501 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Seat, Fender And Fender Supports Parts Diagram

Garden Tractor

Seat, Fender And Fender Supports Parts Diagram

  • Title

1

Toro 88-3220

DISCONTINUED
(Superseded to 98-1625)

$

$

Not available

2

Toro 92-0992

3/8-16 X 5/8 SCREW

$

$

Not available

3

Toro 92-0987

RH ARM BRACKET

$181.99

$

Usually ships in 3-6 days

0

4

Toro 92-0988

DISCONTINUED

$

$

Not available

5

Toro 92-0989

3/8-16X1-1/2 SCREW

$

$

Not available

6

Toro 92-0993

NYLON SPACER

$

$

Not available

7

Toro 92-0986

LH ARM BRACKET

$

$

Not available

8

Toro 92-0990

3/8-16 X 3/4 SCREW

$

$

Not available

9

Toro 92-0991

3/8-16 ACORN LOCKNUT

$

$

Not available

10

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 9266944

See Supercession: 926694
(Superseded to 92-6694)

$

$

Not available

14

Toro 105524

DISCONTINUED

$

$

Not available

15

Toro 78-2990

DISCONTINUED
(Superseded to 78-2990-03)

$

$

Not available

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

Usually ships in 3-6 days

0

18

Toro 9266944

See Supercession: 926694
(Superseded to 92-6694)

$

$

Not available

19

Toro 321-8

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

21

Toro 114343

GAS SPRING

$144.99

$

In Stock, only 1 left!

0

22

Toro 114344

SPACER

$2.99

$

Usually ships in 3-6 days

0

23

Toro 114345

BRACKET-CYLINDER *R

$

$

Not available

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

25

Toro 110960

See Supercession: 94-3722-01
(Superseded to 94-3722-01)

$

$

Not available

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 108464

See Supercession: 108464-03
(Superseded to 108464-03)

$

$

Not available

28

Toro 79-4990

See Supercession: 79-4990-03
(Superseded to 79-4990-03)

$134.99

$

Usually ships in 3-6 days

0

29

Toro 106236

See Supercession: 94-6692-03
(Superseded to 94-6692-03)

$

$

Not available

30

Toro 116446

DECAL-DO NOT TOW

$7.49

$

In Stock, only 1 left!

0

33

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

35

Toro 114263

See Supercession: 114263-03
(Superseded to 114263-03)

$

$

Not available

36

Toro 114264

DISCONTINUED
(Superseded to 93-0319)

$

$

Not available

37

Toro 109989

SPACER-NYLON

$5.99

$

In Stock, only 2 left!

0

38

Toro 9108652

Bolt

$

$

Currently unavailable

39

Toro 114265

DISCONTINUED

$

$

Not available

Toro 88-3230

KIT-ARMREST

$

$

Not available
