73502 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) HOODSTAND, CONSOLE Parts Diagram

Garden Tractor

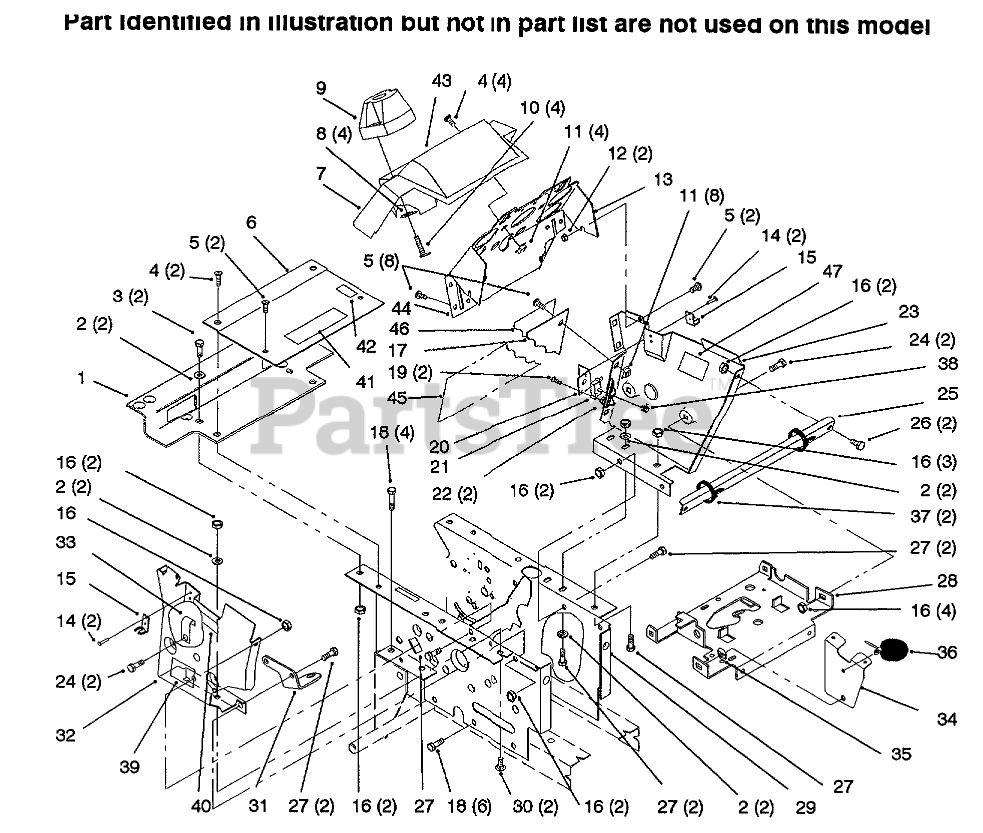

HOODSTAND, CONSOLE Parts Diagram

  • Title

1

Toro 113023

Bracket-Fender

$

$

Not available

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 9108392

SCREW 1/4-20X.87

$

$

Not available

5

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

6

Toro 79-6770

Plate-Top Hoodstand
(Superseded to 92-7293)

$

$

Not available

7

Toro 115620

COVER-CONSOLE 5 GAGE

$183.99

$

Usually ships in 3-6 days

0

8

Toro 9202704

WASHER-FLAT

$1.49

$

In Stock, Qty 15

0

9

Toro 118410

COVER-STEERING SHAFT

$

$

Not available

10

Toro 118780

SCREW-#6 PLASTITE

$

$

Not available

11

Toro 32115-5

NUT-RETAINED

$6.49

$

Usually ships in 3-6 days

0

12

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

13

Toro 117267

ASM-Panel
(Superseded to 117267-03)

$

$

Not available

14

Toro 117433

RIVET-POP

$

$

Not available

15

Toro 117343

KEEPER-LATCH

$4.49

$

In Stock, only 2 left!

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 113928

Plate-Hoodstand
(Superseded to 92-7295)

$

$

Not available

18

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

19

Toro 9109482

Screw

$

$

Currently unavailable

20

Toro 114628

BRACKET-SWITCH SU

$

$

Not available

21

Toro 94-1839

SENSOR-AIR CLEANER VACUUM

$

$

Not available

22

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

23

Toro 79-4890

Panel-LH
(Superseded to 79-4890-03)

$

$

Not available

24

Toro 116000

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

25

Toro 113932

STIFFENER-PANEL B

$

$

Not available

26

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 116309

WLD-SUPPORTB

$

$

Not available

29

Toro 79-5120

Hoodstand
(Superseded to 79-5120-03)

$

$

Not available

30

Toro 9000369

Bolt

$

$

Currently unavailable

31

Toro 78-1540

Bracket-Control
(Superseded to 78-1540-03)

$

$

Not available

32

Toro 113962

Panel-RH
(Superseded to 113962-03)

$96.99

$

In Stock, only 1 left!

0

33

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

34

Toro 117191

Bracket-Holder
(Superseded to 117191-03)

$

$

Not available

35

Toro 108457

NUT-PUSH

$

$

Not available

36

Toro 117257

TIE-WRAP SNAP IN

$

$

Not available

37

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

38

Toro 114767

CLAMP-HOSE 5/16"

$

$

Not available

39

Toro 94-6342

DECAL - MODEL 520 HYDRO

$

$

Not available

41

Toro 92-8946

DECAL-DANGER

$6.49

$

Usually ships in 3-6 days

0

42

Toro 116445

DECAL-PARKING BRAKE

$

$

Not available

43

Toro 78-8350

DECAL-IND LIGHTS

$35.99

$

Usually ships in 3-6 days

0

44

Toro 119230

DECAL-FRONT PANEL

$

$

Not available

45

Toro 111960

DECAL PTO CLUTCH

$14.99

$

Usually ships in 3-6 days

0

46

Toro 92-9838

DECAL - DANGER

$

$

Not available

47

Toro 111926

DECAL ELECT SYSTEM

$

$

Not available
