73502 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Hoodstand, Console Parts Diagram

Garden Tractor

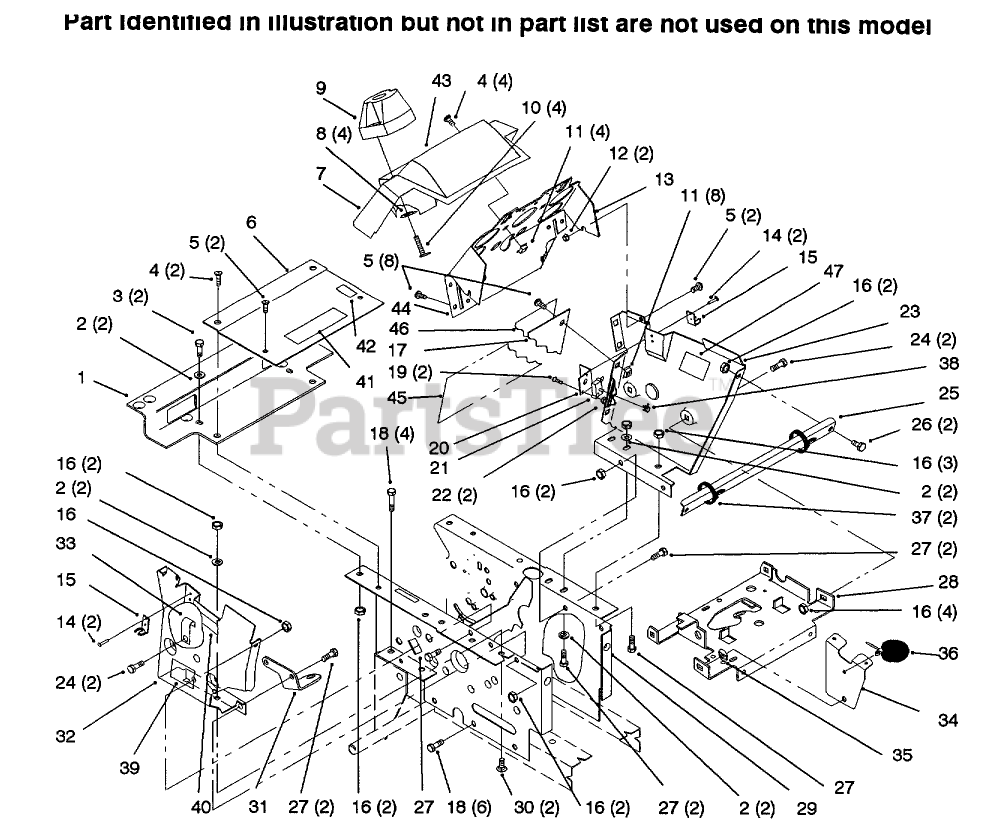

Hoodstand, Console Parts Diagram

  • Title

1

Toro 113023

DISCONTINUED

$

$

Not available

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 9108392

SCREW 1/4-20X.87

$

$

Not available

5

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

6

Toro 79-6770

DISCONTINUED
(Superseded to 92-7293)

$

$

Not available

7

Toro 115620

COVER-CONSOLE 5 GAGE

$

$

Not available

8

Toro 9202704

WASHER-FLAT

$1.99

$

In Stock, Qty 17

0

9

Toro 118410

COVER-STEERING SHAFT

$

$

Not available

10

Toro 118780

DISCONTINUED

$

$

Not available

11

Toro 32115-5

NUT-RETAINED

$7.99

$

Usually ships in 3-6 days

0

12

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 5

0

13

Toro 117267

See Supercession: 117267-03
(Superseded to 117267-03)

$

$

Not available

14

Toro 117433

RIVET-POP

$

$

Not available

15

Toro 117343

KEEPER-LATCH

$5.49

$

In Stock, only 2 left!

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 113928

See Supercession: 92-7295
(Superseded to 92-7295)

$

$

Not available

18

Toro 9266944

See Supercession: 926694
(Superseded to 92-6694)

$

$

Not available

19

Toro 9109482

Screw

$

$

Currently unavailable

20

Toro 114628

BRACKET-SWITCH SU

$

$

Not available

21

Toro 94-1839

SENSOR-AIR CLEANER VACUUM

$

$

Not available

22

Toro 9157324

NUT-HEX, NYL INS

$1.49

$

In Stock, Qty 7

0

23

Toro 79-4890

See Supercession: 79-4890-03
(Superseded to 79-4890-03)

$

$

Not available

24

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Toro 113932

STIFFENER-PANEL

$

$

Not available

26

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 116309

WLD-SUPPORT*B

$

$

Not available

29

Toro 79-5120

DISCONTINUED
(Superseded to 79-5120-03)

$

$

Not available

30

Toro 9000369

Bolt

$

$

Currently unavailable

31

Toro 78-1540

DISCONTINUED
(Superseded to 78-1540-03)

$

$

Not available

32

Toro 113962

See Supercession: 113962-03
(Superseded to 113962-03)

$

$

Not available

33

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

34

Toro 117191

See Supercession: 117191-03
(Superseded to 117191-03)

$

$

Not available

35

Toro 108457

DISCONTINUED

$

$

Not available

36

Toro 117257

DISCONTINUED

$

$

Not available

37

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

38

Toro 114767

DISCONTINUED

$

$

Not available

39

Toro 94-6342

DISCONTINUED

$

$

Not available

41

Toro 92-8946

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

42

Toro 116445

DECAL-PARKING BRAKE

$

$

Not available

43

Toro 78-8350

DECAL-IND LIGHTS

$41.99

$

Usually ships in 3-6 days

0

44

Toro 119230

DISCONTINUED

$

$

Not available

45

Toro 111960

DECAL PTO CLUTCH

$

$

Not available

46

Toro 92-9838

DECAL - DANGER

$

$

Not available

47

Toro 111926

DISCONTINUED

$

$

Not available
