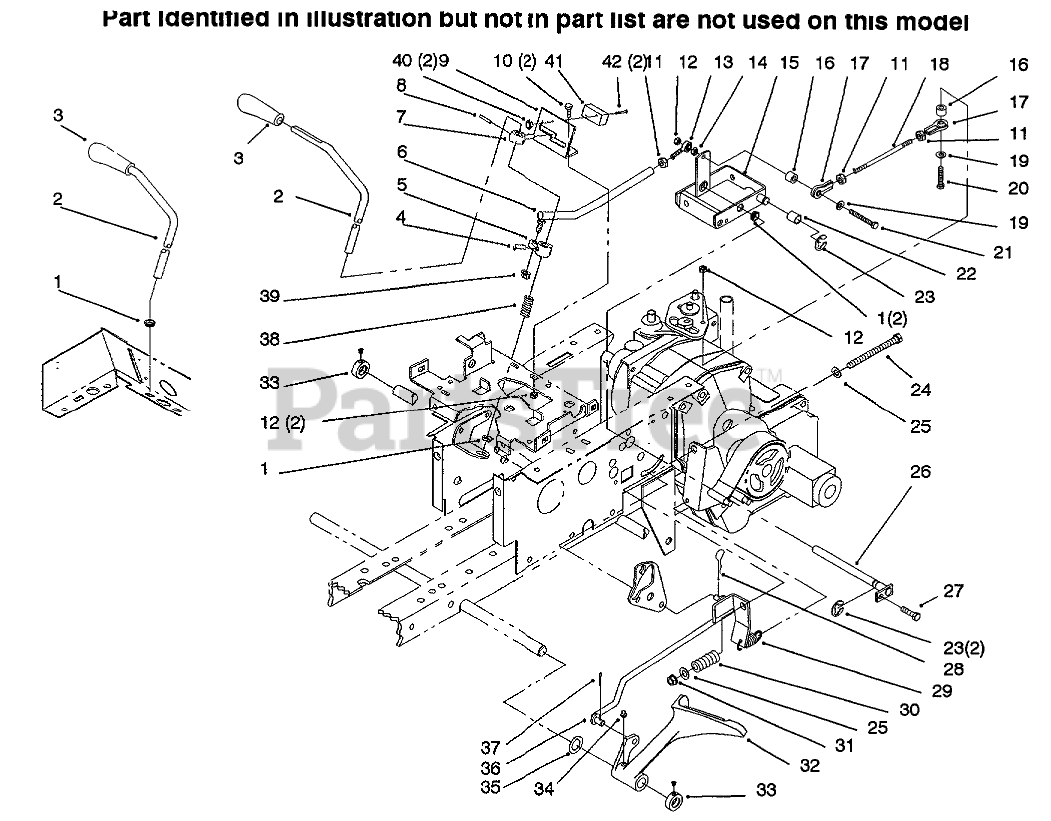

73502 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) HYDRO CONTROLS, BRAKE Parts Diagram

Garden Tractor

HYDRO CONTROLS, BRAKE Parts Diagram

  • Title

1

Toro 5983

NYLINER BUSHING

$4.99

$

In Stock, Qty 19

0

2

Toro 117329

ROD-MOTION CONTROL

$

$

Not available

3

Toro 94-3728

Knob
(Superseded to 94-6668)

$

$

Not available

4

Toro 933198

SPIROL PIN 7/32X7/8

$1.49

$

Usually ships in 3-6 days

0

5

Toro 116321

ARM-CONTROL

$

$

Not available

6

Toro 116324

ASSY-ROD & BALL JOINT

$348.99

$

Usually ships in 3-6 days

0

7

Toro 118660

GUIDE-CONTROL

$142.99

$

Usually ships in 3-6 days

0

8

Toro 32121-94

PIN-SPECIAL

$

$

Not available

9

Toro 78-5711

BRKT-CONTROL

$30.99

$

Usually ships in 3-6 days

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, Qty 5

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 116407

ROD END, 1/4-28

$52.99

$

Usually ships in 3-6 days

0

14

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

15

Toro 113454

Cam Comtrol
(Superseded to 113454-03)

$

$

Not available

16

Toro 100304

Spacer

$6.49

$

In Stock, only 1 left!

0

17

Toro 110189

ASSY ROD END

$17.99

$

In Stock, only 1 left!

0

18

Toro 108904

ROD-CONTROL

$24.99

$

Usually ships in 3-6 days

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 1 left!

0

21

Toro 9114584

HHCS 1/4X2.25 FULL T

$3.49

$

In Stock, only 1 left!

0

22

Toro 100656

BEARING-CAM RETURN

$5.99

$

In Stock, Qty 5

0

23

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 15

0

24

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 108496

ASSY-ROD CAM PIVOT

$

$

Not available

27

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

28

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 14

0

29

Toro 103125

SPRING

$9.49

$

In Stock, Qty 7

0

30

Toro 108680

SPRING-COMPRESSION

$11.99

$

In Stock, only 1 left!

0

31

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

32

Toro 94-3707

Pedal-Brake
(Superseded to 94-3707-01)

$

$

Not available

33

Toro 111383

COLLAR

$6.99

$

In Stock, only 3 left!

0

33:1

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

34

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 11

0

35

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

36

Toro 109372

ASY BRAK RD WAR

$

$

Not available

36

Toro 94-6654

Rod

$

$

Currently unavailable

37

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

38

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 8

0

39

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 11

0

40

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

41

Toro 115230

SWITCH - CLUTCH

$30.99

$

Usually ships in 3-6 days

0

42

Toro 9109484

SCREW-PPH

$0.99

$

In Stock, Qty 10

0
