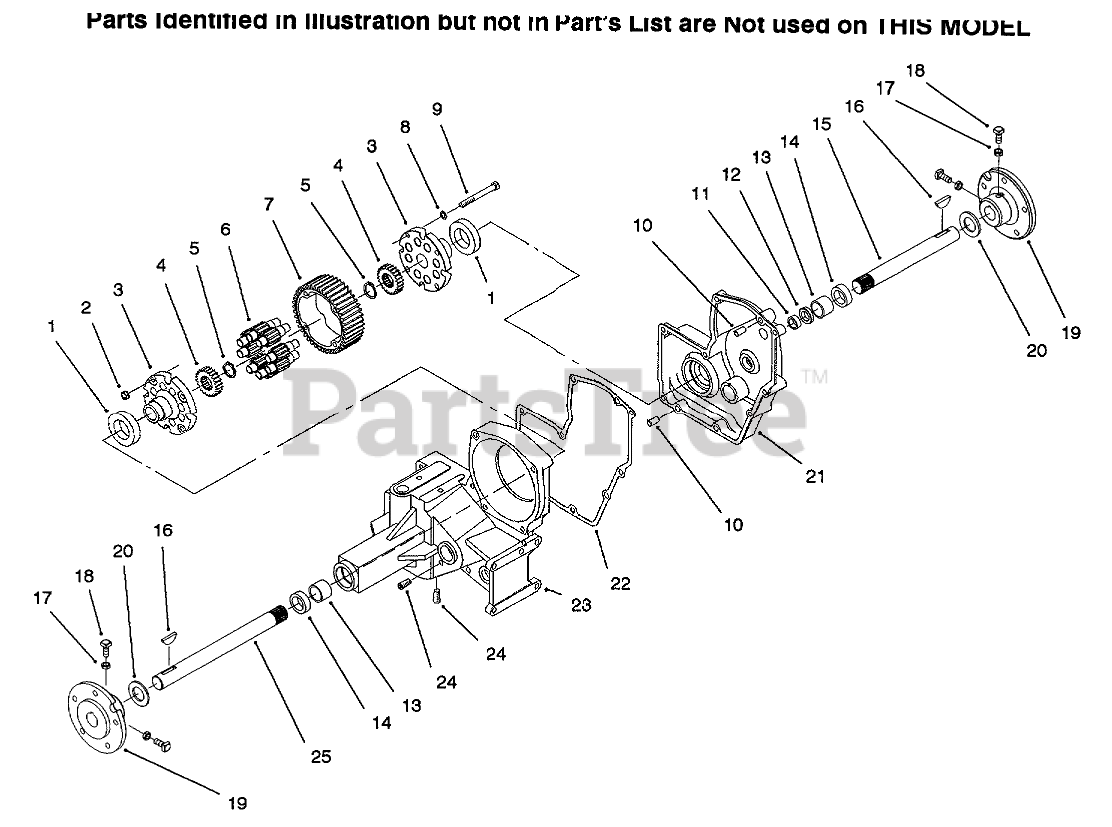

73502 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) HYDROSTATIC TRANSMISSION Parts Diagram

Garden Tractor

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

1

Toro 111199

BEARING-BALL

$122.99

$

In Stock, only 4 left!

0

2

Toro 108881

NUT

$6.49

$

In Stock, Qty 10

0

3

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 2 left!

0

4

Toro 101889

GEAR-AXLE DIFFERENTIAL

$85.99

$

Usually ships in 3-6 days

0

5

Toro 105876

RING-SNAP

$4.99

$

In Stock, only 2 left!

0

6

Toro 101623

GEAR-PINION, 11T

$113.99

$

Usually ships in 3-6 days

0

7

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1066.99

$

Usually ships in 3-6 days

0

8

Toro 107374

WASHER

$0.99

$

Usually ships in 3-6 days

0

9

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, Qty 20+

0

10

Toro 108363

PIN-LOCATING

$

$

Not available

11

Toro 1538

NEEDLE BEARING

$40.99

$

Usually ships in 3-6 days

0

12

Toro 108357

Seal
(Superseded to 253-44)

$27.99

$

In Stock, only 3 left!

0

13

Toro 9416

BEARING

$70.99

$

Usually ships in 3-6 days

0

14

Toro 6449

SEAL-OIL

$20.99

$

In Stock, only 2 left!

0

15

Toro 108361

AXLE-REAR LH

$

$

Not available

16

Toro 937108

KEY-WOODRUFF

$4.99

$

In Stock, Qty 11

0

17

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

18

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

19

Toro 105763

Hub Rear
(Superseded to 105763-03)

$165.99

$

Usually ships in 3-6 days

0

20

Toro 106826

WASHER-THRUST

$11.99

$

In Stock, Qty 5

0

21

Toro 111201

CASE TRANS LH

$

$

Not available

22

Toro 108312

GASKET-TRANSMISSION

$21.99

$

Usually ships in 3-6 days

0

24

Toro 281-10

PLUG

$15.99

$

Usually ships in 3-6 days

0

25

Toro 113927

CASE-TRANS RH

$1208.99

$

Usually ships in 3-6 days

0

26:1

Toro 101887

GEAR 46T

$

$

Not available

26:2

Toro 101625

PINION SHAFT

$

$

Not available

27

Toro 108362

AXLE-REAR RH

$

$

Not available
