73502 (520-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) FUEL TANK & HYDRO FAN CONTROL ASSEMBLY 500 Parts Diagram

Garden Tractor

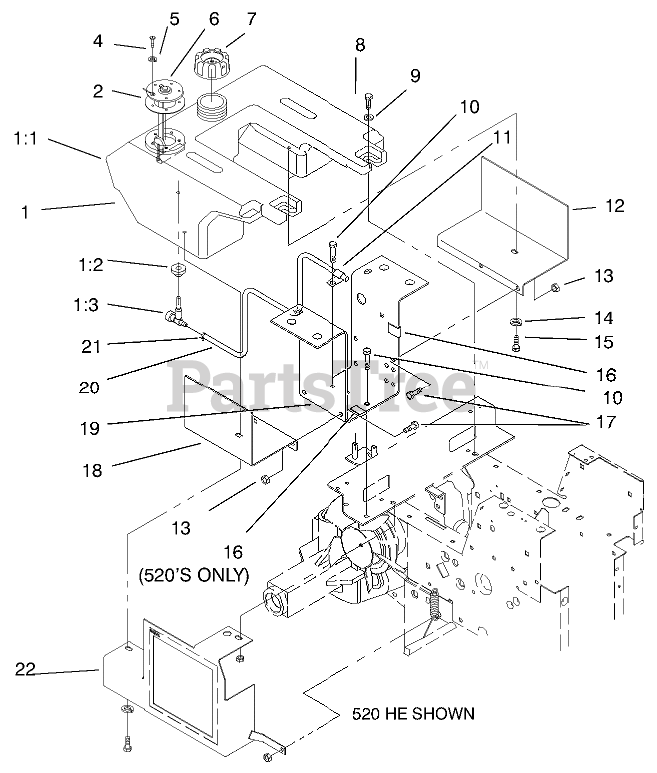

FUEL TANK & HYDRO FAN CONTROL ASSEMBLY 500 Parts Diagram

  • Title

2

Toro 113372

GASKET-SENDER, FUEL

$3.99

$

In Stock, only 3 left!

0

4

Toro 9108074

Screw

$

$

Currently unavailable

5

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

6

Toro 113358

SENDER-FUEL LEVEL

$

$

Not available

7

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0

8

Toro 9266974

SCREW-HWHTF
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

9

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

11

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

12

Toro 94-6693-03

BRACKET-SUPPORT

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 519337

CLIP-CABLE

$1.99

$

Usually ships in 3-6 days

0

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 94-6692-03

BRACKET-SUPPORT

$45.99

$

Usually ships in 3-6 days

0

19

Toro 79-4990-03

SUPPORT-FENDER

$108.99

$

Usually ships in 3-6 days

0

20

Toro 92-9513

Line-Fuel 47"
(Superseded to 110-7502)

$48.99

$

Usually ships in 3-6 days

0

21

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0
