73502 (520-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) HYDROSTATIC TRANSMISSION Parts Diagram

Garden Tractor

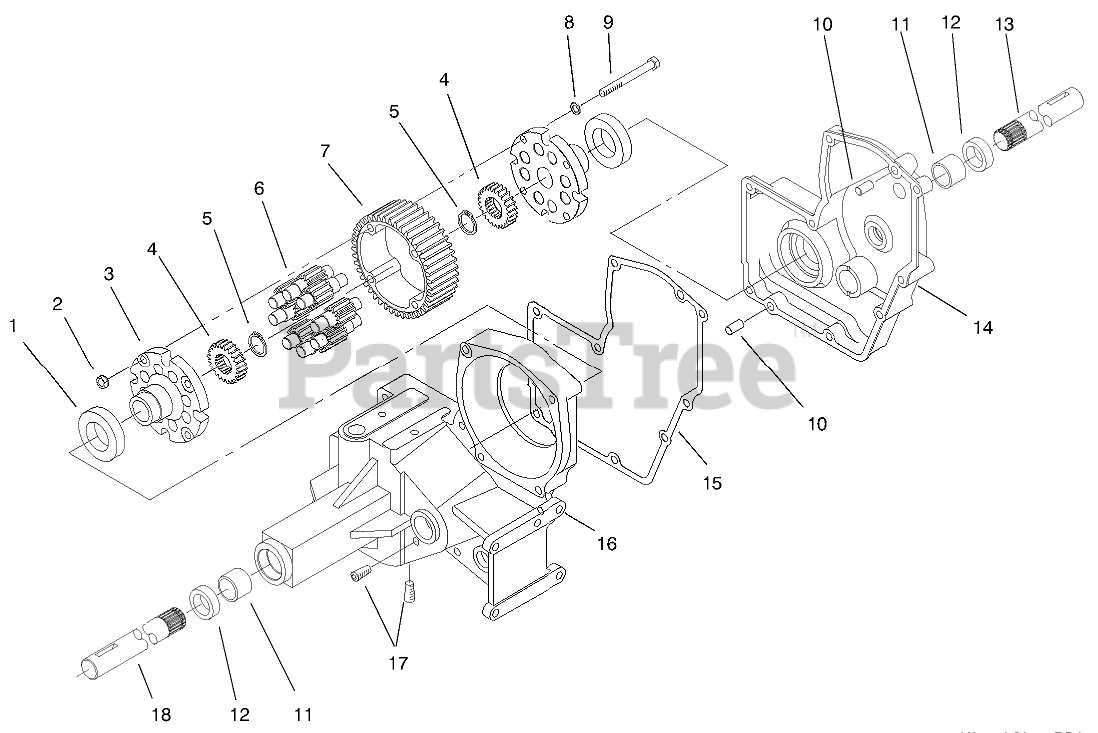

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

1

Toro 111199

BEARING-BALL

$122.99

$

In Stock, only 4 left!

0

2

Toro 108881

NUT

$6.49

$

In Stock, Qty 10

0

3

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 2 left!

0

4

Toro 101889

GEAR-AXLE DIFFERENTIAL

$85.99

$

Usually ships in 3-6 days

0

5

Toro 105876

RING-SNAP

$4.99

$

In Stock, only 2 left!

0

6

Toro 101623

GEAR-PINION, 11T

$113.99

$

Usually ships in 3-6 days

0

7

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1066.99

$

Usually ships in 3-6 days

0

8

Toro 107374

WASHER

$0.99

$

Usually ships in 3-6 days

0

9

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, Qty 20+

0

10

Toro 108363

PIN-LOCATING

$

$

Not available

11

Toro 9416

BEARING

$70.99

$

Usually ships in 3-6 days

0

12

Toro 6449

SEAL-OIL

$20.99

$

Usually ships in 3-6 days

0

13

Toro 108361

AXLE-REAR LH

$

$

Not available

14

Toro 111201-01

Case-Transaxle

$

$

Currently unavailable

15

Toro 108312

GASKET-TRANSMISSION

$21.99

$

Usually ships in 3-6 days

0

16

Toro 113927-01

Case-Transaxle
(Superseded to 113927)

$1208.99

$

Usually ships in 3-6 days

0

16

Toro 92-7298

CASE-TRANSMISSION RH

$

$

Not available

16:1

Toro 113927-01

Case-Transaxle
(Superseded to 113927)

$1208.99

$

Usually ships in 3-6 days

0

16:2

Toro 88-2790

DECAL - DANGER

$3.49

$

Usually ships in 3-6 days

0

17

Toro 281-10

PLUG

$15.99

$

Usually ships in 3-6 days

0

18

Toro 108362

AXLE-REAR RH

$

$

Not available
