73502 (520-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) STARTER Parts Diagram

Garden Tractor

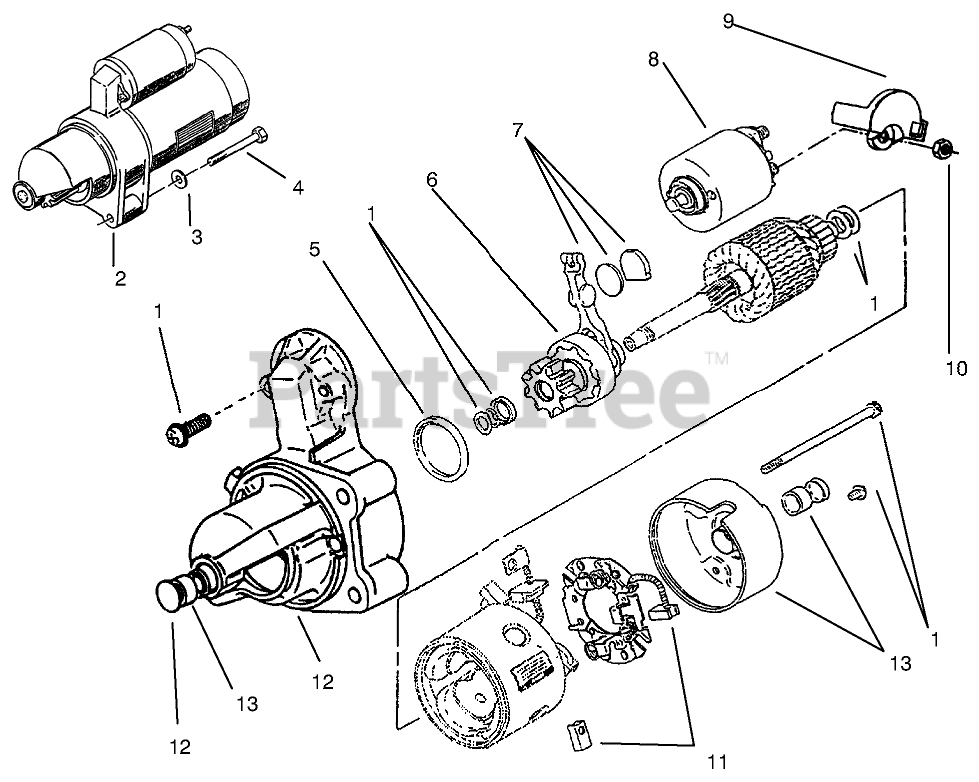

STARTER Parts Diagram

  • Title

1

Toro 62-2760

KIT

$

$

Not available

2

Toro 71-6040

STARTER
(Superseded to 112-7023)

$419.99

$

Usually ships in 3-6 days

0

3

Toro 57-9770

WASHER

$

$

Not available

4

Toro 79-6580

SCREW

$

$

Not available

5

Toro 72-3950

Dust Seal
(Superseded to NN10886)

$

$

Not available

6

Toro 72-3940

CLUTCH STARTER ASSEMBLY

$

$

Not available

7

Toro 62-2770

LEVER

$

$

Not available

8

Toro 72-3930

STARTER SOLENOID KIT

$

$

Not available

9

Toro NN10930

Cap-Starter Solenoid
(Superseded to 82-1720)

$

$

Not available

10

Toro 92-5935

HEX NUT

$

$

Not available

11

Toro 62-2740

BRUSH KIT

$

$

Not available

12

Toro NN10929

KIT-MTG BRKT

$455.99

$

Usually ships in 3-6 days

0

13

Toro 62-2730

BUSHING

$

$

Not available
