73502 (520-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) STEERING SYSTEM Parts Diagram

Garden Tractor

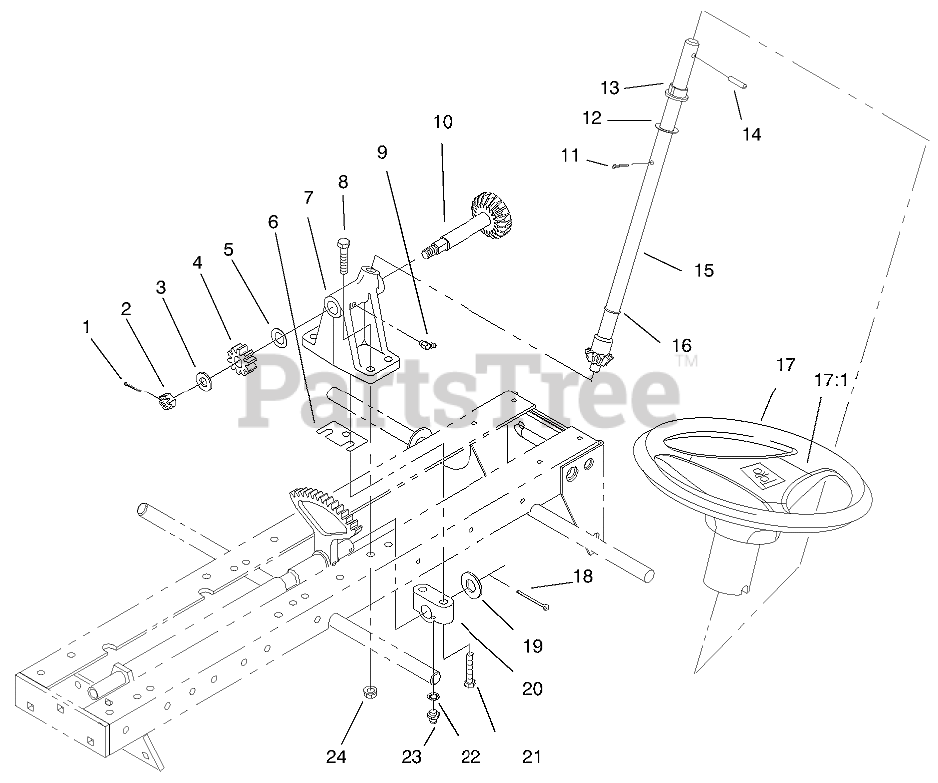

STEERING SYSTEM Parts Diagram

  • Title

1

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

2

Toro 32136-3

NUT-SHH

$1.99

$

Usually ships in 3-6 days

0

3

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 78-1481

PINION-SPUR

$

$

Not available

5

Toro 9202624

WASHER

$8.99

$

Usually ships in 3-6 days

0

6

Toro 78-1531

SHIM-.010

$

$

Not available

7

Toro 78-1411-03

SUPORT-STERING (BLACK)

$

$

Not available

8

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 302-11

FITTING-LUBE, 45 DEG

$1.49

$

In Stock, only 4 left!

0

10

Toro 78-1450

WLDMT-C SHAFT

$

$

Not available

11

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

12

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

13

Toro 109189

BEARING-FLANGED

$2.99

$

In Stock, Qty 20+

0

14

Toro 32121-111

PIN-ROLL

$2.99

$

In Stock, Qty 20+

0

15

Toro 92-0995

WLDMT-STRG SHAFT

$370.99

$

Usually ships in 3-6 days

0

16

Toro 237-69

O-RING

$6.99

$

Usually ships in 3-6 days

0

17

Toro 94-3519

WHEEL - STEERING 15"
(Superseded to 98-1473)

$231.99

$

Usually ships in 3-6 days

0

17:1

Toro 88-3870

COVER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

18

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, Qty 5

0

19

Toro 9202164

WSHR-.765X1.125X.060

$3.49

$

Usually ships in 3-6 days

0

20

Toro 88-3240

BLOCK-BEARING

$

$

Not available

21

Toro 9080376

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

22

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

23

Toro 302-16

ZERK FITTING

$8.49

$

Usually ships in 3-6 days

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
