73520 (520-H) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) CARBURETOR ASSEMBLY Parts Diagram

Garden Tractor

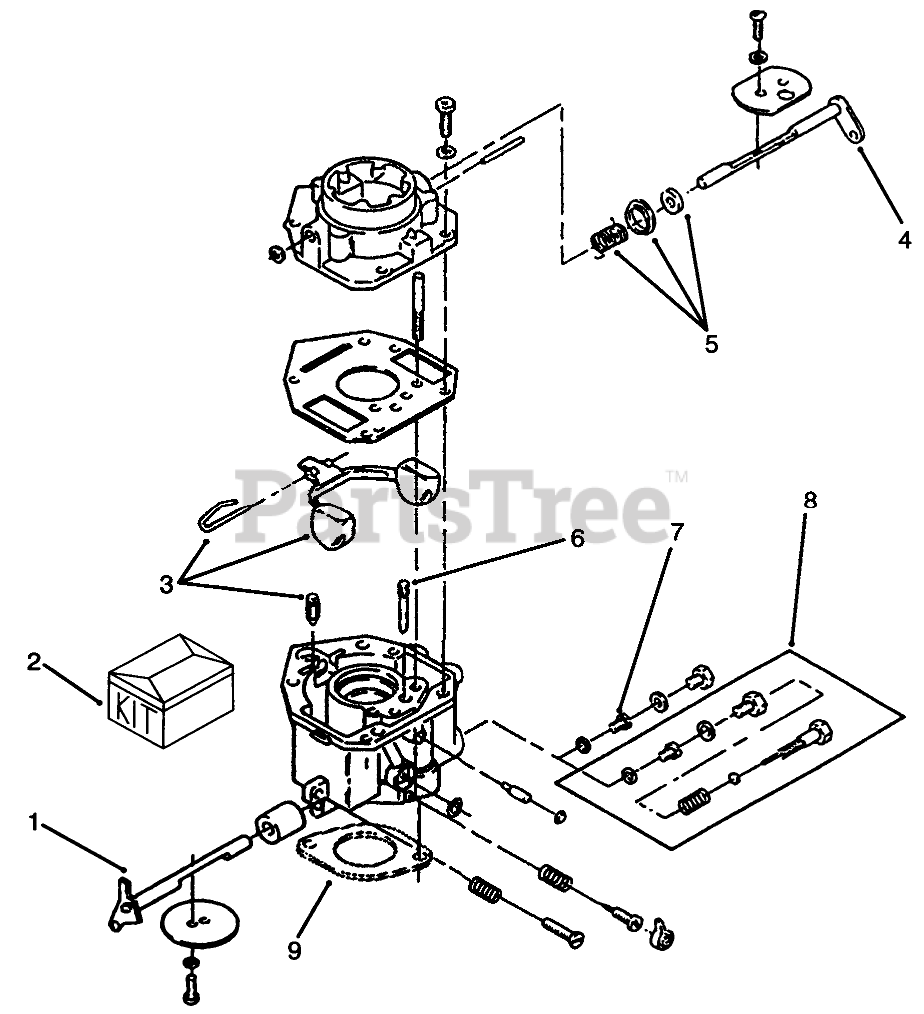

CARBURETOR ASSEMBLY Parts Diagram

  • Title
1

Toro NN10811

Kit-Shaft, Throttle (Includes Valve Setscrew, Air Filter, & Throttle Valve)

$

$

Not available

2

Toro 82-0780

Kit-Repair (Includes Screw & Plug Package, Gasket Package, Float Valve, Idle Adj. Needle & Spring, Mounting Gaskets, & Idle Limit Cap)

$412.99

$

Usually ships in 3-6 days

0

3

Toro 62-2800

Kit-Float (Includes Float, Pin & Valve)

$145.99

$

Usually ships in 3-6 days

0

4

Toro NN10207

Kit-Shaft, Choke (Incl. Choke Valve, Valve Setscrew, & Air Filter)
(Superseded to 72-3860)

$

$

Not available

5

Toro NN10208

Kit-Lever, Choke (Incl. Choke Lever Ring, Choke Spring, & Choke Collar)
(Superseded to 72-3870)

$

$

Not available

6

Toro NN10859

IDLE-JET

$

$

Not available

7

Toro 57-9050

POWER JET

$

$

Not available

8

Toro NN10858

FIXED-JET

$

$

Not available

9

Toro 57-9200

Gasket
(Superseded to 82-0850)

$11.99

$

In Stock, only 1 left!

0
