73520 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000177) (1995) CLUTCH, BRAKE & SPEED CONTROL LINKAGE Parts Diagram

Garden Tractor

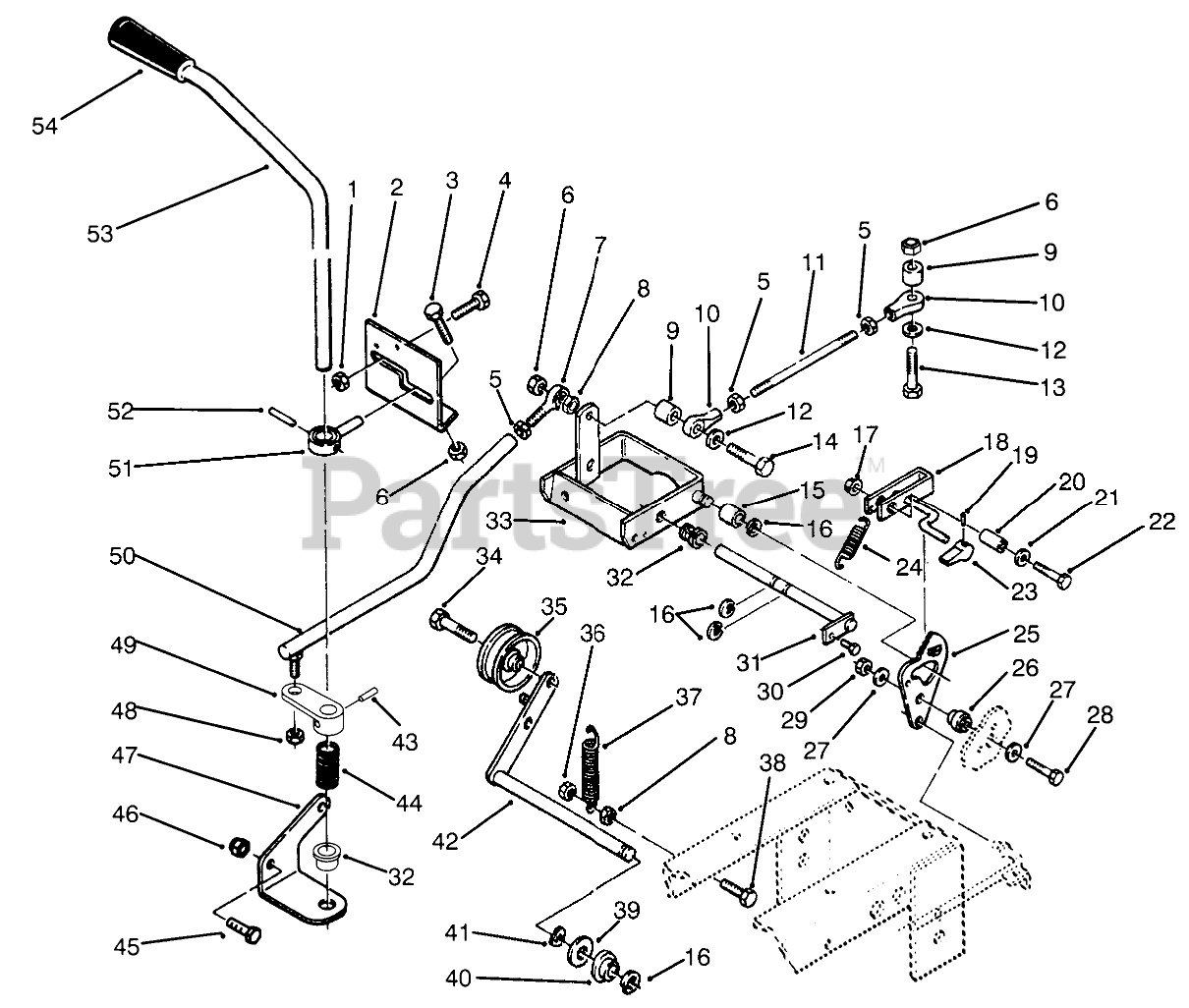

CLUTCH, BRAKE & SPEED CONTROL LINKAGE Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 78-5711

BRKT-CONTROL

$30.99

$

Usually ships in 3-6 days

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, Qty 5

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 116407

ROD END, 1/4-28

$52.99

$

Usually ships in 3-6 days

0

8

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

9

Toro 100304

Spacer

$6.49

$

In Stock, only 1 left!

0

10

Toro 110189

ASSY ROD END

$17.99

$

In Stock, only 1 left!

0

11

Toro 108904

ROD-CONTROL

$24.99

$

Usually ships in 3-6 days

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

14

Toro 911458

Bolt

$

$

Currently unavailable

15

Toro 100656

BEARING-CAM RETURN

$5.99

$

In Stock, Qty 5

0

16

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 15

0

17

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

18

Toro 78-8500

Lever-Parking Brake
(Superseded to 78-8500-03)

$

$

Not available

19

Toro 933135

PIN-SPIROL 3/32X5/8

$

$

Not available

20

Toro 102025

SPACER

$

$

Not available

21

Toro 920241

Washer
(Superseded to 9202414)

$5.49

$

Usually ships in 3-6 days

0

22

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 118860

KNOB-PARKING BRAKE

$

$

Not available

24

Toro 83-2820

EXTENSION-SPRING

$

$

Not available

25

Toro 108716

Cam Plate
(Superseded to 108716-03)

$

$

Not available

26

Toro 108717

Spacer

$

$

Not available

27

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 926694

SCREW

$

$

Not available

31

Toro 108496

ASSY-ROD CAM PIVOT

$

$

Not available

32

Toro 5983

NYLINER BUSHING

$4.99

$

In Stock, Qty 19

0

33

Toro 113454

Cam Comtrol
(Superseded to 113454-03)

$

$

Not available

34

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 112791

PULLEY-IDLER

$80.99

$

In Stock, only 4 left!

0

36

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

37

Toro 107938

SPRING-EXTENSION

$13.99

$

In Stock, only 1 left!

0

38

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

40

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

41

Toro 114823

CURVED-SPRING WASHER

$9.49

$

Usually ships in 3-6 days

0

42

Toro 78-6020

WLDMT-IDLER ARM

$

$

Not available

43

Toro 32121-94

PIN-SPECIAL

$

$

Not available

44

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 8

0

45

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

46

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

47

Toro 78-1540

Bracket-Control
(Superseded to 78-1540-03)

$

$

Not available

48

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 11

0

49

Toro 116321

ARM-CONTROL

$

$

Not available

50

Toro 116324

ASSY-ROD & BALL JOINT

$348.99

$

Usually ships in 3-6 days

0

51

Toro 118660

GUIDE-CONTROL

$142.99

$

Usually ships in 3-6 days

0

52

Toro 933198

SPIROL PIN 7/32X7/8

$1.49

$

Usually ships in 3-6 days

0

53

Toro 117329

ROD-MOTION CONTROL

$

$

Not available

54

Toro 116635

Knob-Motion Control
(Superseded to 94-6668)

$

$

Not available
