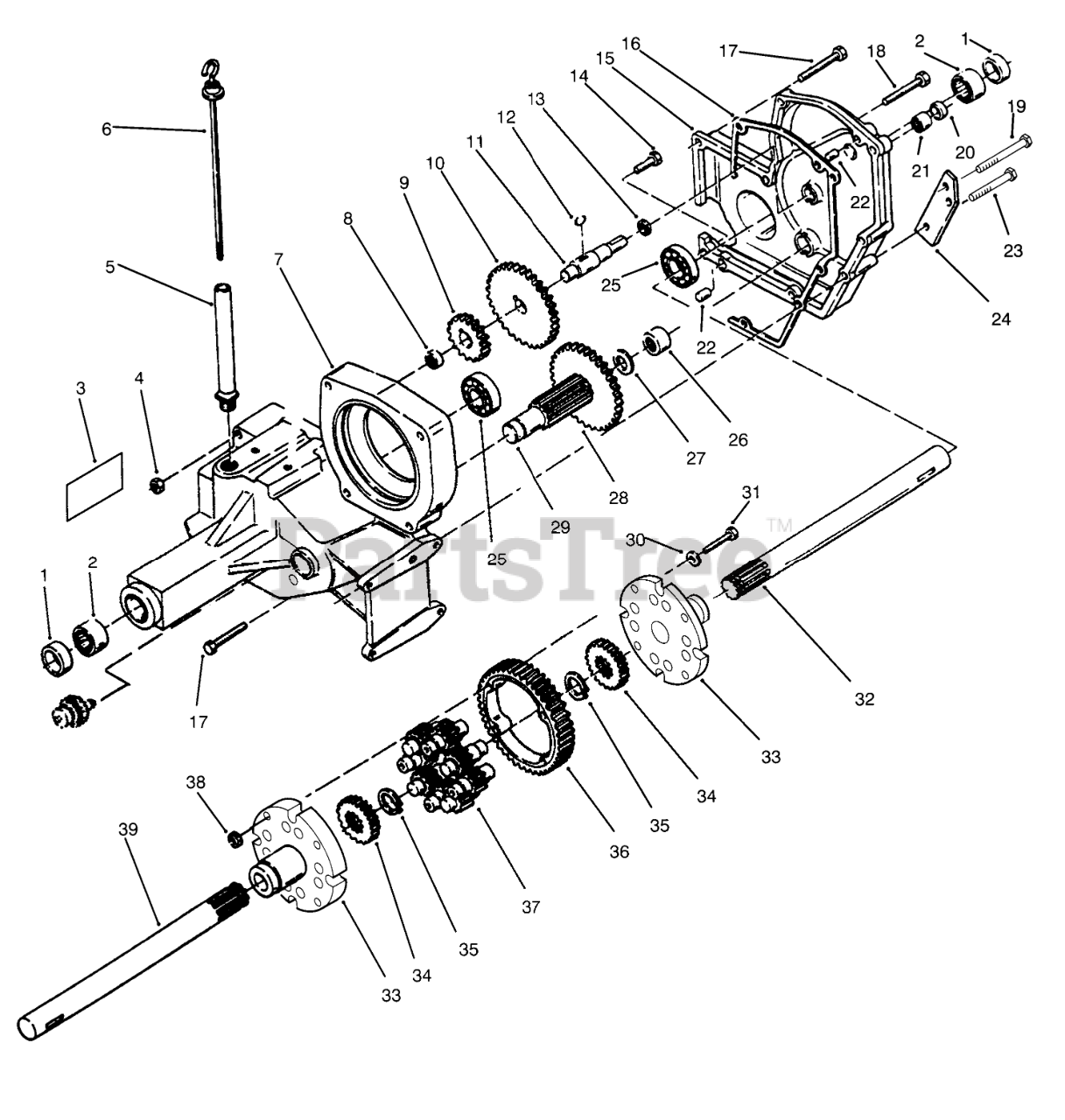

73520 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000177) (1995) TRANSAXLE Parts Diagram

Garden Tractor

TRANSAXLE Parts Diagram

  • Title

1

Toro 6449

SEAL-OIL

$20.99

$

In Stock, only 1 left!

0

2

Toro 9416

BEARING

$70.99

$

Usually ships in 3-6 days

0

3

Toro 88-2790

DECAL - DANGER

$3.49

$

Usually ships in 3-6 days

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 106448

NIPPLE-TRANS FILL

$

$

Not available

6

Toro 110768

Dipstick
(Superseded to 110768-03)

$

$

Not available

7

Toro 92-7298

Case-Transaxle,RH (Incl. Ref. #3)

$

$

Not available

8

Toro 1518

BEARING-NEEDLE

$26.99

$

Usually ships in 3-6 days

0

9

Toro 109742

GEAR 20 TEETH

$

$

Not available

10

Toro 109752

GEAR 46 TEETH

$

$

Not available

11

Toro 109370

SHAFT GEAR

$

$

Not available

12

Toro 937024

WOODRUFF KEY

$2.49

$

Usually ships in 3-6 days

0

13

Toro 7956

Race Thrust
(Superseded to 702982)

$8.99

$

In Stock, Qty 5

0

14

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 111201

CASE TRANS LH

$

$

Not available

16

Toro 108312

GASKET-TRANSMISSION

$21.99

$

Usually ships in 3-6 days

0

17

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 19

0

18

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Toro 323-26

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

20

Toro 108357

Seal
(Superseded to 253-44)

$27.99

$

In Stock, only 3 left!

0

21

Toro 1538

NEEDLE BEARING

$40.99

$

Usually ships in 3-6 days

0

22

Toro 108363

PIN-LOCATING

$

$

Not available

23

Toro 323-25

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

24

Toro 109367

BRACKET-BRAKEB

$

$

Not available

25

Toro 111199

BEARING-BALL

$122.99

$

In Stock, only 4 left!

0

26

Toro 1532

BEARING-NEEDLE

$50.99

$

In Stock, only 4 left!

0

27

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

28

Toro 101887

GEAR 46T

$

$

Not available

29

Toro 101625

PINION SHAFT

$

$

Not available

30

Toro 107374

WASHER

$0.99

$

Usually ships in 3-6 days

0

31

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, Qty 20+

0

32

Toro 108361

AXLE-REAR LH

$

$

Not available

33

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 2 left!

0

34

Toro 101889

GEAR-AXLE DIFFERENTIAL

$85.99

$

Usually ships in 3-6 days

0

35

Toro 105876

RING-SNAP

$4.99

$

In Stock, only 2 left!

0

36

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1066.99

$

Usually ships in 3-6 days

0

37

Toro 101623

GEAR-PINION, 11T

$113.99

$

Usually ships in 3-6 days

0

38

Toro 108881

NUT

$6.49

$

In Stock, Qty 10

0

39

Toro 108362

AXLE-REAR RH

$

$

Not available

Toro 92-7297

Transaxle-Complete (Incl. Ref. #3)

$

$

Not available

Toro 109703

Assembly-Gear (Incl. Ref. #28-29)

$

$

Not available
