73521 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Gauges, Warning Lights Controls Parts Diagram

Garden Tractor

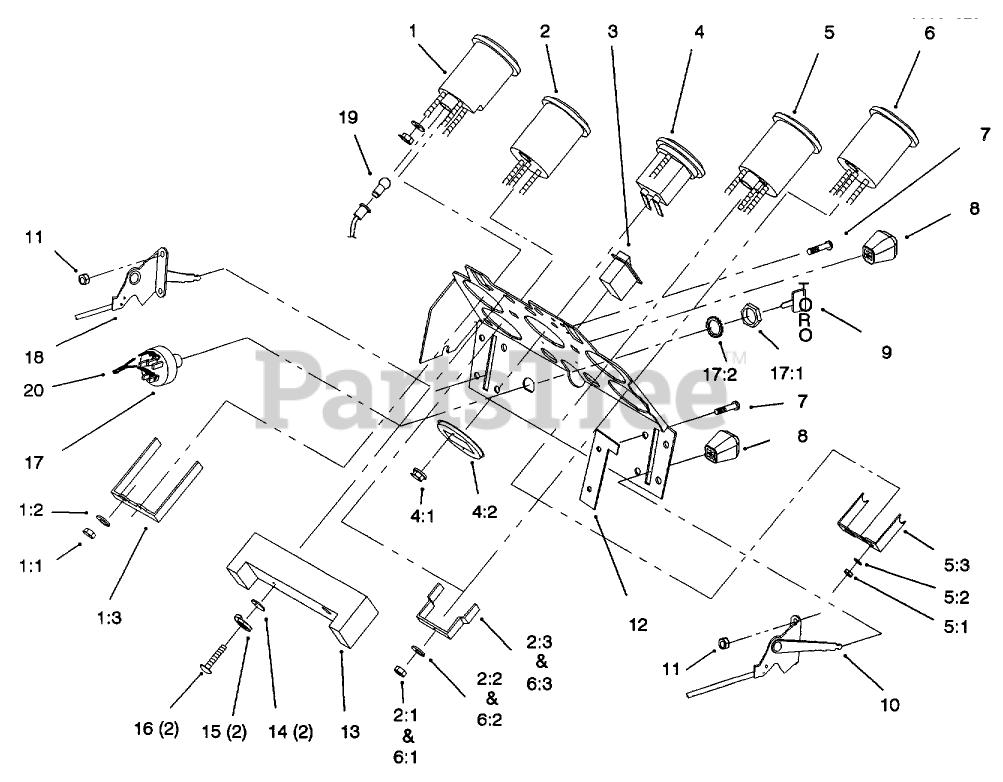

Gauges, Warning Lights Controls Parts Diagram

  • Title

1

Toro 78-0060

TACHOMETER

$

$

Not available

1:1

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

1:2

Toro 3255-25

See Supercession: 3255-20
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

1:3

Toro 78-0090

BRACKET - GAUGE MOUNT

$

$

Not available

2

Toro 78-0040

See Supercession: 95-3830
(Superseded to 95-3830)

$230.99

$

Usually ships in 3-6 days

0

2:1

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

2:2

Toro 3255-25

See Supercession: 3255-20
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

2:3

Toro 78-0080

CLAMP-MOUNTING

$

$

Not available

3

Toro 92-9844

See Supercession: 107-9238
(Superseded to 107-9238)

$64.99

$

Usually ships in 3-6 days

0

4

Toro 94-3723

See Supercession: 66-2950
(Superseded to 66-2950)

$

$

Not available

4:1

Toro 32149-9

NUT-HEX, KEPS

$1.49

$

Usually ships in 3-6 days

0

4:2

Toro 94-1849

Retainer

$

$

Currently unavailable

5

Toro 79-2660

DISCONTINUED

$

$

Not available

5:1

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5:2

Toro 3255-25

See Supercession: 3255-20
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

5:3

Toro 78-0100

Bracket-Mounting

$

$

Currently unavailable

6

Toro 78-0030

DISCONTINUED
(Superseded to 17-8049)

$

$

Not available

6:1

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

6:2

Toro 3255-25

See Supercession: 3255-20
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

6:3

Toro 78-0080

CLAMP-MOUNTING

$

$

Not available

7

Toro 9107922

SCREW-PPH

$11.99

$

Usually ships in 3-6 days

0

8

Toro 66-0120

KNOB

$6.49

$

In Stock, Qty 6

0

9

Toro 62-7770

KEY-IGNITION

$5.49

$

In Stock, Qty 14

0

10

Toro 114027

CONTROL-CHOKE

$

$

Not available

11

Toro 9157404

See Supercession: 3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 13

0

12

Toro 114641-03

Stop-Choke

$

$

Currently unavailable

13

Toro 79-2130

DISCONTINUED

$

$

Not available

14

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

15

Toro 3253-15

WASHER-LOCK

$1.99

$

Usually ships in 3-6 days

0

16

Toro 9107834

Screw

$

$

Currently unavailable

17

Toro 111216

See Supercession: 103990
(Superseded to 103990)

$29.99

$

In Stock, only 3 left!

0

17:1

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

17:2

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

18

Toro 115392

CONTROL-THROTTLE

$124.99

$

In Stock, only 1 left!

0

19

Toro 79-0450

DISCONTINUED

$

$

Not available
