73541 (520 xi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) AIR COOLED ENGINE ASSEMBLY Parts Diagram

Garden Tractor

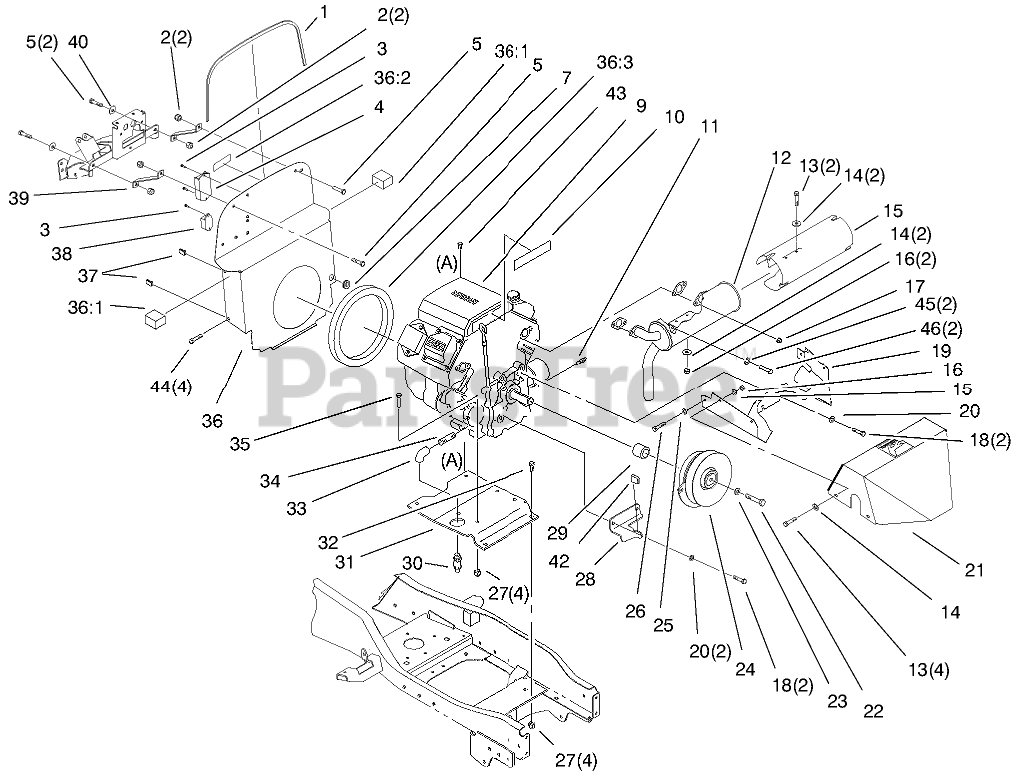

AIR COOLED ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-4125

TRIM-LOCK

$

$

Not available

1

Toro 98-8077

TRIM - LOCK, BULKHEAD

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 12-5450

Screw-Thread Forming (Only On: 73540, 73541)

$8.99

$

Usually ships in 3-6 days

0

4

Toro 94-7612

MODULE - KOHLER

$

$

Not available

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 240-9

GROMMET

$4.49

$

In Stock, only 1 left!

0

9

Engine (Only On: 73470)

$

$

Not available

10

Toro 98-3579

Decal-18hp Engine (Only On: 73470)

$

$

Not available

10

Toro 98-3580

Decal-20hp Engine (Only On: 73540, 73541)

$

$

Not available

11

Toro 94-7619

SENDER-OIL TEMPERATURE

$

$

Not available

12

Toro 94-7558

MUFFLER

$

$

Not available

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 94-7560

REFLECTOR - HEAT

$

$

Not available

16

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

17

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, only 3 left!

0

18

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Toro 94-7522-03

SHROUD-MUFFLER

$

$

Not available

20

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 94-7524-03

SHROUD-MUFFLER

$

$

Not available

22

Toro 94-7973

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

23

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

24

Toro 94-2190

CLUTCH-PTO

$843.99

$

Usually ships in 3-6 days

0

25

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 33113-008

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

28

Toro 94-2356-03

CLUTCH-STOP

$

$

Not available

29

Toro 94-2068

SPACER-CLUTCH

$26.99

$

Usually ships in 3-6 days

0

30

Toro 92-6877

VALVE-DRAIN, OIL

$39.99

$

In Stock, Qty 5

0

31

Toro 94-2199-03

PLATE-ENGINE

$

$

Not available

32

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Toro 2811-16

ELBOW-90 DEGEE

$24.99

$

Usually ships in 3-6 days

0

34

Toro 98-7200

NIPPLE

$

$

Not available

35

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 98-5060-03

Bulkhead ASM (Only On: 73470, 73540)
(Superseded to 98-5060)

$

$

Not available

36

Toro 98-5062-03

Bulkhead ASM (Only On: 73541)

$

$

Currently unavailable

36:1

Toro 98-3086

SEAL-FOAM, SIDE

$

$

Not available

36:2

Toro 98-5012

Decal-Warning (Only On: 73470, 73540)

$

$

Not available

36:2

Toro 98-5015

Decal-Warning (Only On: 73541)

$

$

Not available

36:3

Toro 95-4104

SEAL-FOAM

$

$

Not available

37

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

38

Toro 95-3029

Cruise Module (Only On: 73540, 73541)

$114.99

$

Usually ships in 3-6 days

0

39

Toro 95-4117-03

BRACKET-BULKHEAD

$

$

Not available

40

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 98-5023

BUMPER

$6.99

$

Usually ships in 3-6 days

0

43

Toro 32144-109

SCREW-TAPTITE

$4.99

$

In Stock, Qty 18

0

44

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

45

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

46

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 4 left!

0
