73541 (520 xi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) CRUISE CONTROL ASSEMBLY Parts Diagram

Garden Tractor

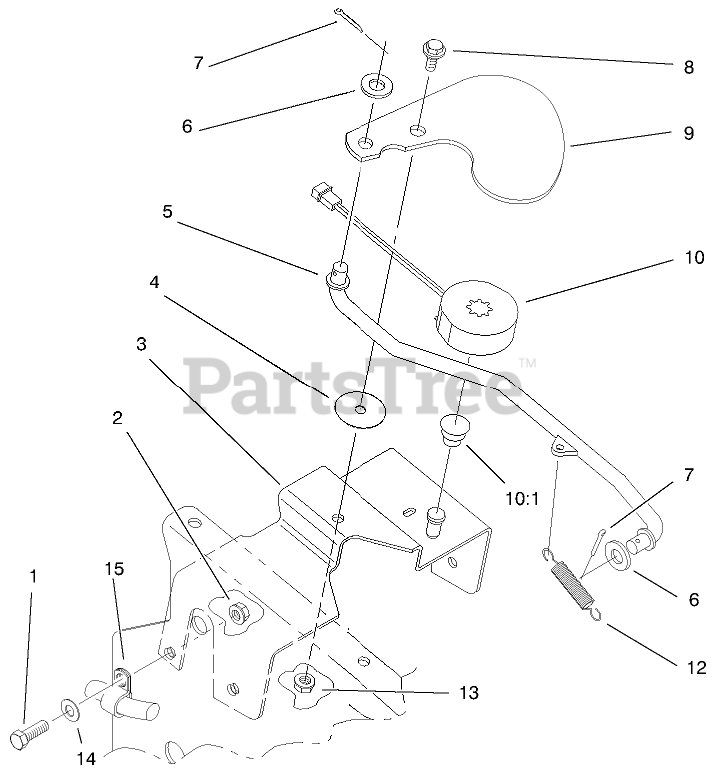

CRUISE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 323-6

Screw-HH (Only On: 73540, 73541)

$2.49

$

In Stock, Qty 20+

0

2

Toro 3296-39

Nut-Lock (Only On: 73540, 73541)

$2.99

$

In Stock, Qty 20+

0

3

Toro 94-2494-03

Bracket-Cruise Control (Only On: 73540, 73541)

$

$

Not available

4

Toro 94-7575

Spacer-Cruise (Only On: 73540, 73541)

$

$

Not available

5

Toro 94-7980

Rod-Cruise Control (Only On: 73540, 73541)

$

$

Not available

6

Toro 3256-26

Washer-Flat (Only On: 73540, 73541)

$0.99

$

In Stock, Qty 20+

0

7

Toro 3272-10

Pin-Cotter (Only On: 73540, 73541)

$1.49

$

In Stock, Qty 20+

0

8

Toro 94-7582

Bolt-Shoulder (Only On: 73540, 73541)

$3.49

$

Usually ships in 3-6 days

0

9

Toro 94-2158

Plate-Magnet (Only On: 73540, 73541)

$

$

Not available

10

Toro 93-4366

Magnet ASM (Only On: 73540, 73541)
(Superseded to 99-8090)

$301.99

$

Usually ships in 3-6 days

0

10:1

Toro 93-6601

Spring-Conical (Only On: 73450, 73451)

$2.49

$

Usually ships in 3-6 days

0

12

Toro 66-4160

Spring (Only On: 73540, 73541)

$

$

Not available

13

Toro 108881

NUT

$6.49

$

In Stock, Qty 10

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 98-2358

CLAMP - R

$

$

Not available
