73541 (520 xi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) GROUP 8-FUEL SYSTEM (MODELS 73540 & 73541) Parts Diagram

Garden Tractor

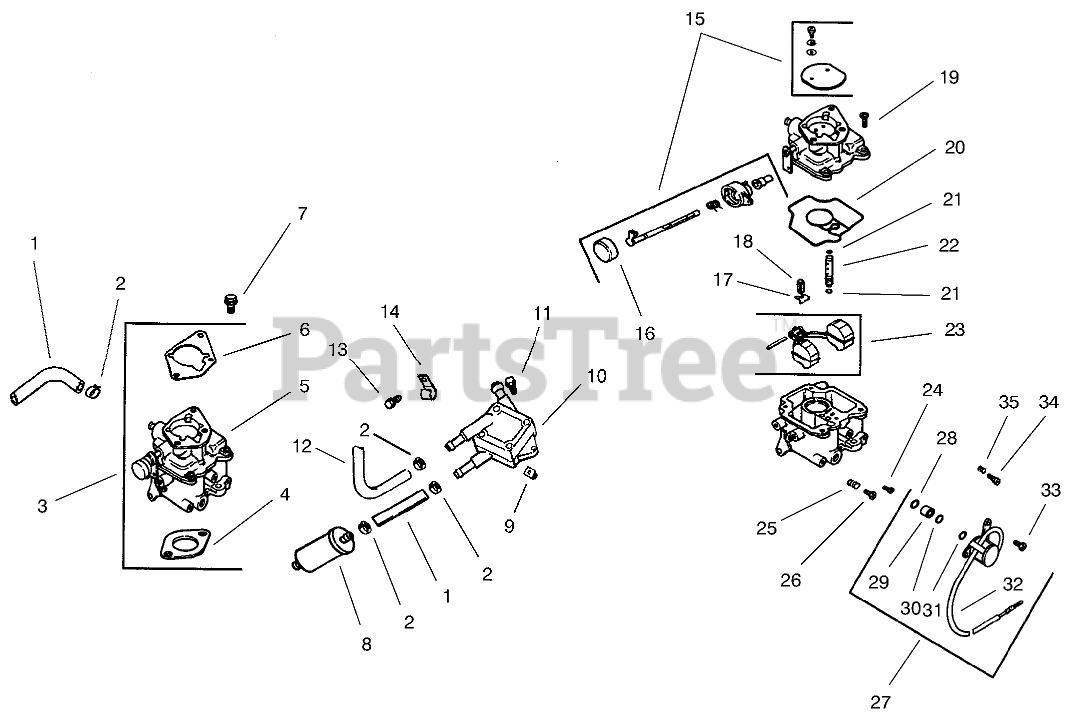

GROUP 8-FUEL SYSTEM (MODELS 73540 & 73541) Parts Diagram

  • Title

1

2535310

Line fuel

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

1

2535310

Line fuel

Note: Kohler Engine Num CH20S-64583

$

$

Not available

2

Toro X-426-9

Clamp

Note: Kohler Engine Num CH20S-64583

$

$

Currently unavailable

2

Toro X-426-9

Clamp

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Currently unavailable

3

2485332

Kit, carburetor w/gasket (Includes 4-6)

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

3

2485332

Kit, carburetor w/gasket (Includes 4-6)

Note: Kohler Engine Num CH20S-64583

$

$

Not available

4

24 041 06

Gasket

Note: Kohler Engine Num CH20S-64583

$

$

Not available

4

24 041 06

Gasket

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

5

Toro 24 053 32

Carburetor assembly (Includes 15-35)

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Currently unavailable

5

Toro 24 053 32

Carburetor assembly (Includes 15-35)

Note: Kohler Engine Num CH20S-64583

$

$

Currently unavailable

6

24 041 17

Gasket

Note: Kohler Engine Num CH20S-64583

$

$

Not available

6

24 041 17

Gasket

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

7

Toro M-0651030

Screw

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Currently unavailable

7

Toro M-0651030

Screw

Note: Kohler Engine Num CH20S-64583

$

$

Currently unavailable

8

Toro 24 050 02

Filter-Fuel

Note: Kohler Engine Num CH20S-64583

$

$

Currently unavailable

8

Toro 24 050 02

Filter-Fuel

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Currently unavailable

9

24 100 01

Nut

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

9

24 100 01

Nut

Note: Kohler Engine Num CH20S-64583

$

$

Not available

10

2439304

Pump-Fuel

Note: Kohler Engine Num CH20S-64583

$

$

Not available

10

2439304

Pump-Fuel

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

11

2408612

Screw

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

11

2408612

Screw

Note: Kohler Engine Num CH20S-64583

$

$

Not available

12

Toro 24 353 04

Line, fuel17"

Note: Kohler Engine Num CH20S-64583

$

$

Currently unavailable

12

Toro 24 353 04

Line, fuel17"

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Currently unavailable

13

Toro M-0650012

Screw

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Currently unavailable

13

Toro M-0650012

Screw

Note: Kohler Engine Num CH20S-64583

$

$

Currently unavailable

14

Toro 47 154 01

Clamp

Note: Kohler Engine Num CH20S-64583

$

$

Currently unavailable

14

Toro 47 154 01

Clamp

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Currently unavailable

15

24 757 07

Kit, choke repair (Includes 16)

Note: Kohler Engine Num CH20S-64583

$

$

Not available

15

24 757 07

Kit, choke repair (Includes 16)

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

16

2417302

Cap-Choke Lever

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

16

2417302

Cap-Choke Lever

Note: Kohler Engine Num CH20S-64583

$

$

Not available

17

2415401

Clip, cable

Note: Kohler Engine Num CH20S-64583

$

$

Not available

17

2415401

Clip, cable

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

18

2446201

Valve-Inlet Needle

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

18

2446201

Valve-Inlet Needle

Note: Kohler Engine Num CH20S-64583

$

$

Not available

19

2408609

Screw

Note: Kohler Engine Num CH20S-64583

$

$

Not available

19

2408609

Screw

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

20

24 041 09

Gasket-Body,Carburetor

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

20

24 041 09

Gasket-Body,Carburetor

Note: Kohler Engine Num CH20S-64583

$

$

Not available

21

2415302

"O"Ring

Note: Kohler Engine Num CH20S-64583

$

$

Not available

21

2415302

"O"Ring

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

22

2433701

Jet-Slow

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

22

2433701

Jet-Slow

Note: Kohler Engine Num CH20S-64583

$

$

Not available

23

24 757 02

Roat Repair Kit

Note: Kohler Engine Num CH20S-64583

$

$

Not available

23

24 757 02

Roat Repair Kit

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

24

2433702

Jet-Main

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

24

2433702

Jet-Main

Note: Kohler Engine Num CH20S-64583

$

$

Not available

25

2408910

Spring-Idle Speed Adj.

Note: Kohler Engine Num CH20S-64583

$

$

Not available

25

2408910

Spring-Idle Speed Adj.

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

26

2408610

Screw, idle adjusting

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

26

2408610

Screw, idle adjusting

Note: Kohler Engine Num CH20S-64583

$

$

Not available

27

24 757 01

Kit, solenoid (Includes 28-33)

Note: Kohler Engine Num CH20S-64583

$

$

Not available

27

24 757 01

Kit, solenoid (Includes 28-33)

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

28

24 153 06

O-Ring

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

28

24 153 06

O-Ring

Note: Kohler Engine Num CH20S-64583

$

$

Not available

29

2452101

Seat-Solenoid

Note: Kohler Engine Num CH20S-64583

$

$

Not available

29

2452101

Seat-Solenoid

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

30

24 153 05

O-Ring

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

30

24 153 05

O-Ring

Note: Kohler Engine Num CH20S-64583

$

$

Not available

31

24 153 04

O-Ring

Note: Kohler Engine Num CH20S-64583

$

$

Not available

31

24 153 04

O-Ring

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

32

2443501

Solenoid

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

32

2443501

Solenoid

Note: Kohler Engine Num CH20S-64583

$

$

Not available

33

2408607

Screw

Note: Kohler Engine Num CH20S-64583

$

$

Not available

33

2408607

Screw

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

34

2436801

Needle, idle

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

34

2436801

Needle, idle

Note: Kohler Engine Num CH20S-64583

$

$

Not available

35

2408911

Spring-Idle Adj.

Note: Kohler Engine Num CH20S-64583

$

$

Not available

35

2408911

Spring-Idle Adj.

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

24 757 03

Carburetor Repair Kit

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

24 757 03

Carburetor Repair Kit

Note: Not illustrated

$

$

Not available

24 757 03

Carburetor Repair Kit

Note: Kohler Engine Num CH20S-64583

$

$

Not available
