73542 (520 xi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) GROUP 8-FUEL SYSTEM (MODEL 73471 ONLY) Parts Diagram

Garden Tractor

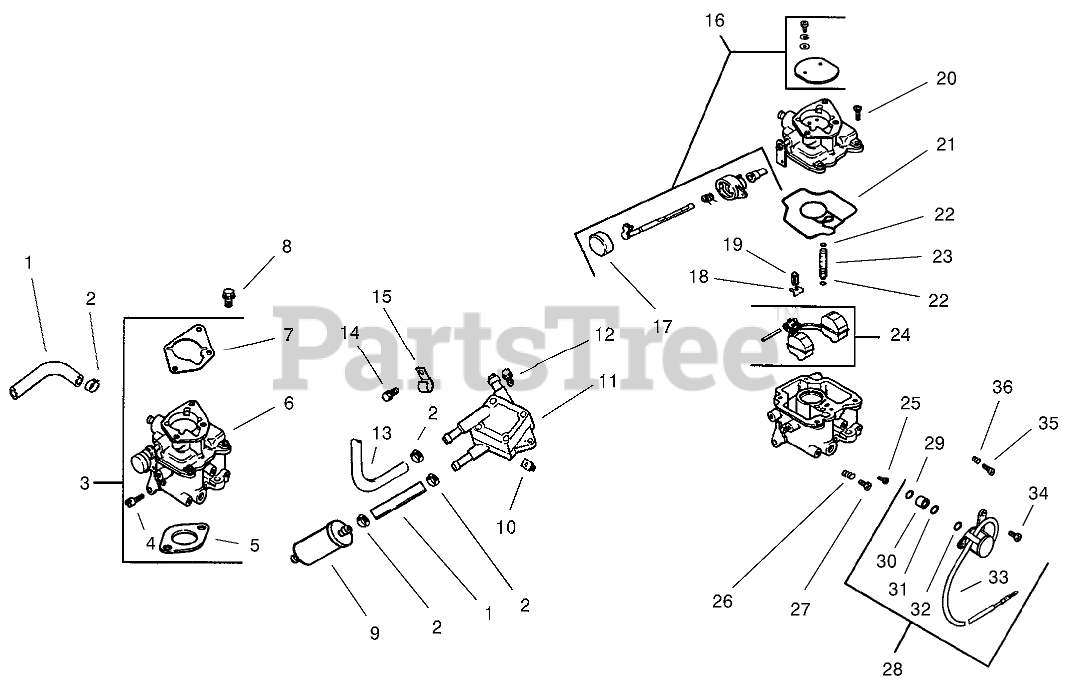

GROUP 8-FUEL SYSTEM (MODEL 73471 ONLY) Parts Diagram

  • Title

1

2535310

Line fuel

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

2

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$6.49

$

In Stock, Qty 16

0

3

2485335

Kit, carburetor w/gasket (Includes 4-7)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

4

2408605

Screw-Throttle Stop

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

5

Kohler 24 041 06

Gasket
(Superseded to 24 041 06-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$2.99

$

In Stock, Qty 20+

0

6

Kohler 24 053 32

Carburetor assembly (Includes 16-36, carburetor repair kit 24 757 03)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

7

Kohler 24 041 17

Gasket
(Superseded to 24 041 17-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$9.49

$

In Stock, Qty 6

0

8

Kohler M-0651030

Screw
(Superseded to M-651030-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

9

Kohler 24 050 02

Filter-Fuel
(Superseded to 24 050 02-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$12.99

$

In Stock, Qty 20+

0

10

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$2.49

$

In Stock, only 2 left!

0

11

2439304

Pump-Fuel

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

12

2408612

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

13

Kohler 24 353 04

Line, fuel17"
(Superseded to 25 111 81-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$17.99

$

In Stock, Qty 20+

0

14

Kohler M-0650012

Screw
(Superseded to M-650012-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$3.49

$

In Stock, Qty 7

0

15

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$5.49

$

In Stock, only 2 left!

0

16

Kohler 24 757 07

Kit, choke repair (Includes 17)
(Superseded to 24 757 07-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$116.99

$

In Stock, only 2 left!

0

17

2417302

Cap-Choke Lever

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

18

2415401

Clip, cable

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

19

2446201

Valve-Inlet Needle

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

20

2408609

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

21

Kohler 24 041 09

Gasket-Body,Carburetor
(Superseded to 24 041 09-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$39.99

$

In Stock, only 1 left!

0

22

2415302

"O"Ring

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

23

2433701

Jet-Slow

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

24

Kohler 24 757 02

Roat Repair Kit
(Superseded to 24 757 02-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$166.99

$

Usually ships in 2-5 days

0

25

2433702

Jet-Main

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

26

2408910

Spring-Idle Speed Adj.

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

27

2408610

Screw, idle adjusting

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

28

Kohler 24 757 01

Kit, solenoid (Includes 29-34)
(Superseded to 24 757 01-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$281.99

$

In Stock, only 3 left!

0

29

Kohler 24 153 06

O-Ring
(Superseded to 24 153 06-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$5.99

$

In Stock, only 1 left!

0

30

2452101

Seat-Solenoid

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

31

Kohler 24 153 05

O-Ring
(Superseded to 24 153 05-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$5.99

$

Usually ships in 2-5 days

0

32

Kohler 24 153 04

O-Ring
(Superseded to 24 153 04-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$5.49

$

Usually ships in 2-5 days

0

33

2443501

Solenoid

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

34

2408607

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

35

2436801

Needle, idle

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

36

2408911

Spring-Idle Adj.

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

Kohler 24 757 03

Carburetor Repair Kit
(Superseded to 24 757 03-S)

Note: Not illustrated

$139.99

$

Usually ships in 2-5 days

0

Kohler 24 757 03

Carburetor Repair Kit
(Superseded to 24 757 03-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$139.99

$

Usually ships in 2-5 days

0
