73545 (520 Lxi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) ELECTRICAL COMPONENTS ASSEMBLY Parts Diagram

Garden Tractor

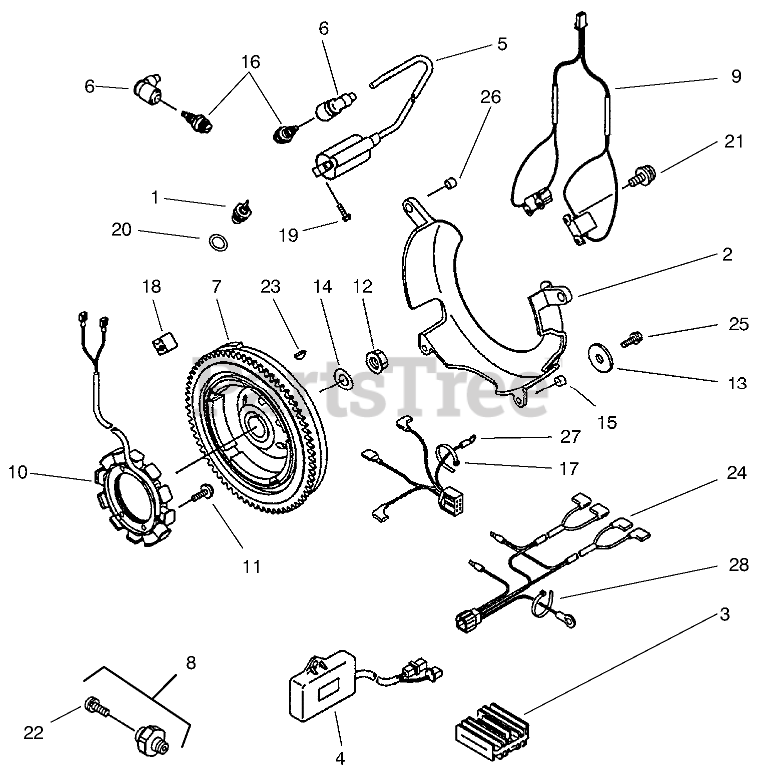

ELECTRICAL COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 98-7360

SENSOR

$256.99

$

Usually ships in 3-6 days

0

2

Toro 95-9814

COVER - FLYWHEEL

$

$

Not available

3

Toro 95-9815

REGULATOR-VOLTAGE

$

$

Not available

4

Toro 95-9816

IGNITER

$

$

Not available

5

Toro 95-9819

COIL - IGNITION

$

$

Not available

6

Toro KW10087

CAP-SPARKPLUG

$39.99

$

Usually ships in 3-6 days

0

7

Toro 95-9820

FLYWHEEL ASM

$

$

Not available

8

Toro 95-9824

SWITCH; OIL PRESSURE

$

$

Not available

9

Toro 95-9825

COIL - PULSING

$

$

Not available

10

Toro 95-9826

COIL - CHARGING

$

$

Not available

11

Toro 95-9827

SCREW

$

$

Not available

12

Toro 95-9828

NUT

$

$

Not available

13

Toro 95-9829

WASHER

$

$

Not available

14

Toro 95-9830

WASHER

$

$

Not available

15

Toro 95-9832

COLLAR

$

$

Not available

16

Toro 95-9833

SPARK PLUG

$

$

Not available

17

Toro 95-9834

BAND

$

$

Not available

18

Toro 95-9835

CLAMP

$

$

Not available

19

Toro 95-9836

BOLT - FLANGED

$

$

Not available

20

Toro 98-7359

GASKET

$

$

Not available

21

Toro 95-9838

SCREW - PAN,WSP,CROS

$

$

Not available

22

Toro 95-9839

SCREW - PAN,WP

$

$

Not available

23

Toro KW10163

KEY-WOODRUFF

$4.49

$

Usually ships in 3-6 days

0

24

Toro 95-9823

HARNESS

$

$

Not available

25

Toro 95-9837

BOLT-FLANGED (6X16)

$1.49

$

Usually ships in 3-6 days

0

26

Toro 95-9831

COLLAR

$

$

Not available

27

Toro 95-9821

HARNESS

$

$

Not available

28

Toro 98-7361

BAND

$

$

Not available
