73550 (523 Dxi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) ENGINE ASSEMBLY Parts Diagram

Garden Tractor

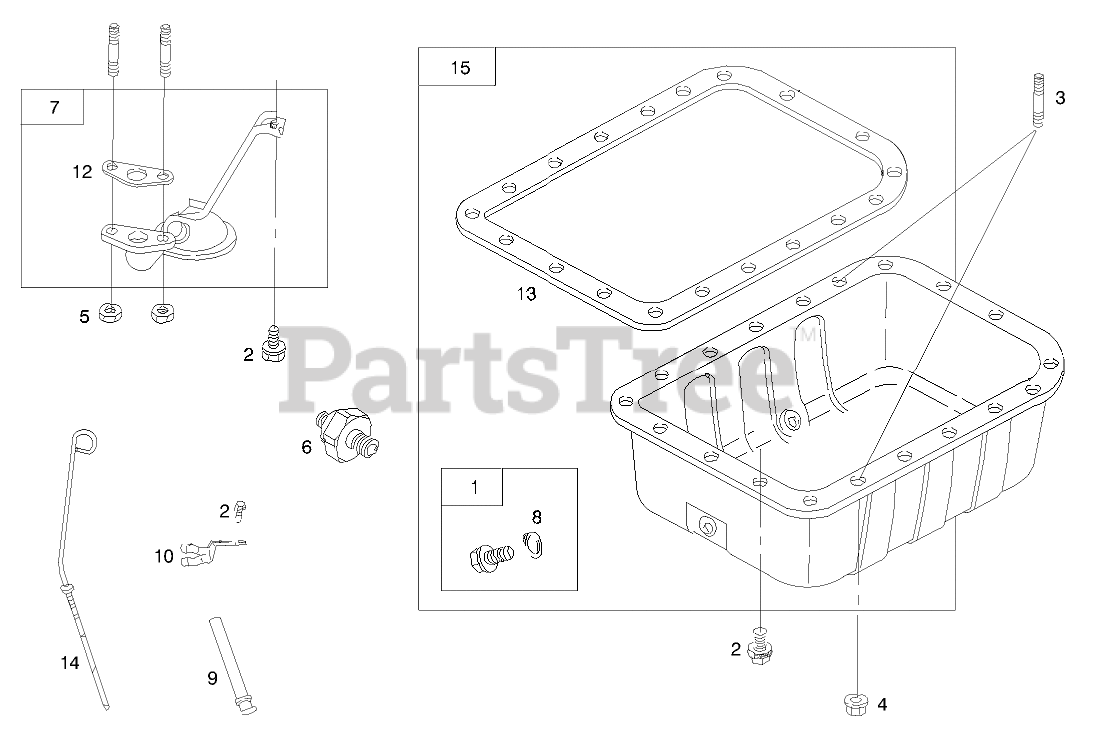

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 99-9110

PLUG-OIL DRAIN (12MM)

$

$

Not available

1

Toro 99-9670

HEAD-CYLINDER

$

$

Not available

2

Toro 99-9111

SCREW-HEX

$15.99

$

Usually ships in 3-6 days

0

3

Toro 99-9112

STUD-METRIC

$17.99

$

Usually ships in 3-6 days

0

4

Toro 99-9113

NUT-HEX, METRIC

$10.99

$

Usually ships in 3-6 days

0

5

Toro 99-9114

NUT-HEX, METRIC

$15.99

$

Usually ships in 3-6 days

0

6

Toro 99-9115

SWITCH-PRESSURE, OIL

$66.99

$

Usually ships in 3-6 days

0

7

Toro 99-9116

SCREEN-PUMP, OIL

$111.99

$

Usually ships in 3-6 days

0

8

Toro 99-9117

WASHER-SEAL (12MM)

$14.99

$

Usually ships in 3-6 days

0

8

Toro 99-9157

SWITCH-TEMPERATURE, WATER

$73.99

$

Usually ships in 3-6 days

0

9

Toro 99-9118

TUBE-DIPSTICK

$21.99

$

Usually ships in 3-6 days

0

9

Toro 99-9678

GASKET-SET
(Superseded to 115-2339)

$

$

Not available

10

Toro 99-9647

BRACKET-SUPPORT

$30.99

$

In Stock, Qty 16

0

12

Toro 99-9120

GASKET-STRAINER, OIL

$

$

Not available

13

Toro 99-9121

GASKET-PAN, OIL

$71.99

$

In Stock, only 1 left!

0

14

Toro 99-9650

Dipstick
(Superseded to 99-9122)

$

$

Not available

14

Toro 99-9679

KIT-VALVE OVERHAUL
(Superseded to 107-9907)

$

$

Not available

15

Toro 99-9676

PAN-OIL
(Superseded to 99-9649)

$492.99

$

Usually ships in 3-6 days

0

15

Toro 99-9039

SHAFT-GEAR

$180.99

$

Usually ships in 3-6 days

0
