73551 (523 Dxi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) ENGINE ASSEMBLY Parts Diagram

Garden Tractor

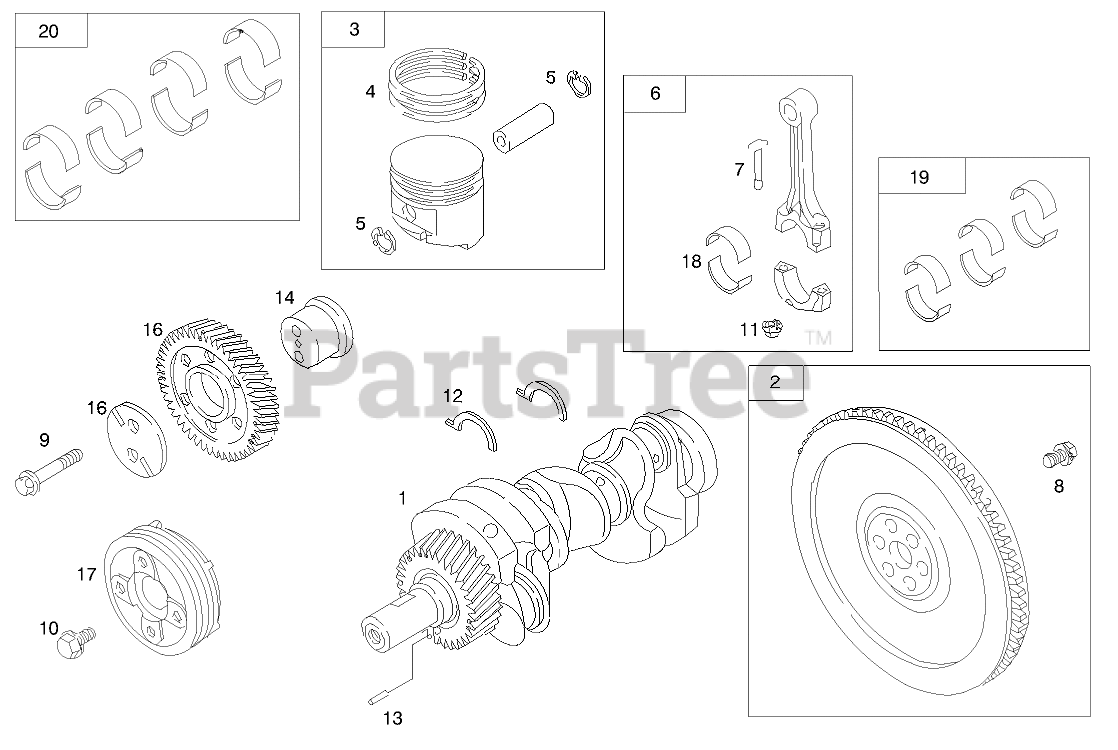

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 99-9023

CRANKSHAFT

$

$

Not available

1

Toro 99-9670

HEAD-CYLINDER

$

$

Not available

2

Toro 99-9671

FLYWHEEL
(Superseded to 99-9267)

$638.99

$

Usually ships in 3-6 days

0

3

Toro 99-9672

PISTON ASM

$

$

Not available

4

Toro 99-9606

RING SET

$191.99

$

Usually ships in 3-6 days

0

5

Toro 99-9607

LOCK-PIN, PISTON

$14.99

$

Usually ships in 3-6 days

0

6

Toro 99-9608

ROD-CONNECTING

$

$

Not available

7

Toro 99-9030

SCREW-ROD, CONNECTING

$22.99

$

Usually ships in 3-6 days

0

8

Toro 99-9031

SCREW-HEX

$26.99

$

Usually ships in 3-6 days

0

8

Toro 99-9157

SWITCH-TEMPERATURE, WATER

$73.99

$

Usually ships in 3-6 days

0

9

Toro 99-9032

SCREW-HEX

$12.99

$

Usually ships in 3-6 days

0

9

Toro 99-9678

GASKET-SET
(Superseded to 115-2339)

$

$

Not available

10

Toro 99-9033

SCREW-HEX

$

$

Not available

11

Toro 99-9034

NUT-HEX

$11.99

$

Usually ships in 3-6 days

0

12

Toro 99-9035

WASHER-THRUST

$114.99

$

Usually ships in 3-6 days

0

13

Toro 99-9037

PIN-LOCATING

$20.99

$

Usually ships in 3-6 days

0

14

Toro 99-9308

Gear-Drive
(Superseded to 99-9038)

$388.99

$

Usually ships in 3-6 days

0

14

Toro 99-9679

KIT-VALVE OVERHAUL
(Superseded to 107-9907)

$

$

Not available

15

Toro 99-9039

SHAFT-GEAR

$180.99

$

Usually ships in 3-6 days

0

16

Toro 99-9040

PLATE-GEAR, IDLER

$22.99

$

Usually ships in 3-6 days

0

17

Toro 99-9692

Pulley-Crankshaft
(Superseded to 99-9041)

$184.99

$

Usually ships in 3-6 days

0

18

Toro 99-9042

BEARING-ROD
(Superseded to 117-4893)

$103.99

$

In Stock, only 1 left!

0

19

Toro 99-9043

SET-BEARING, ROD
(Superseded to 117-4893)

$103.99

$

In Stock, only 1 left!

0

20

Toro 99-9045

SET-BEARING, MAIN (SET OF 8)

$

$

Not available
