73551 (523 Dxi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) HI-LO SHIFT ASSEMBLY Parts Diagram

Garden Tractor

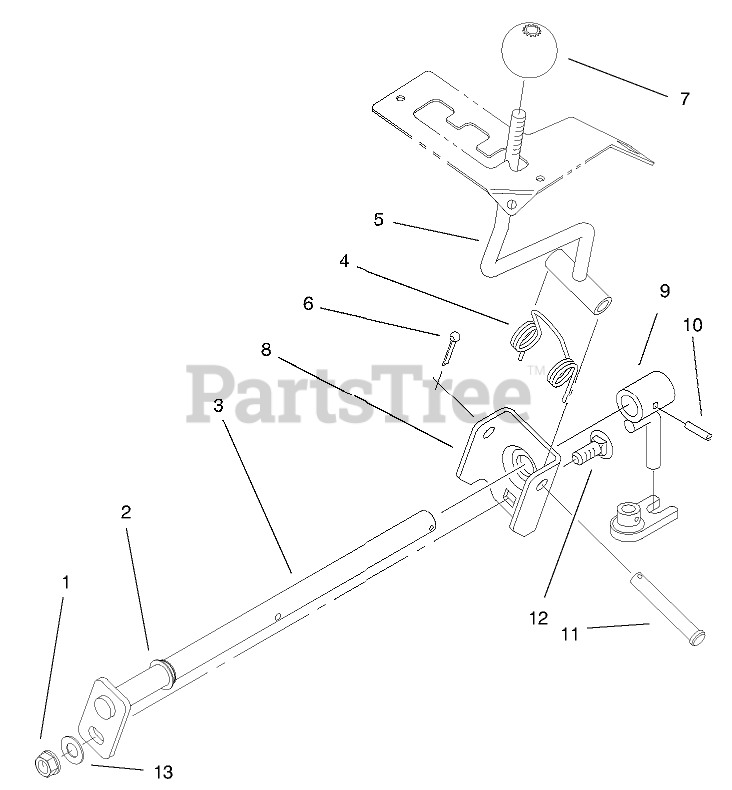

HI-LO SHIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 86-9320

BUSHING-FLANGE

$8.99

$

Usually ships in 3-6 days

0

3

Toro 94-7504

WA - HI/LO ROD

$

$

Not available

4

Toro 94-7835

SPRING - TORSION

$

$

Not available

5

Toro 94-7833

WA - HI/LO LEVER

$

$

Not available

6

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

7

Toro 95-4022

KNOB-HI / LO SHIFT

$

$

Not available

8

Toro 94-7834

BRACKET - PIVOT

$

$

Not available

9

Toro 94-7507

WA - HI/LO PIVOT

$95.99

$

Usually ships in 3-6 days

0

10

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

11

Toro 283-47

PIN-CLEVIS

$

$

Not available

12

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
