73570 (520 xi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) ELECTRICAL ASSEMBLY (MODEL NOS. 73542, & 73570 ONLY) Parts Diagram

Garden Tractor

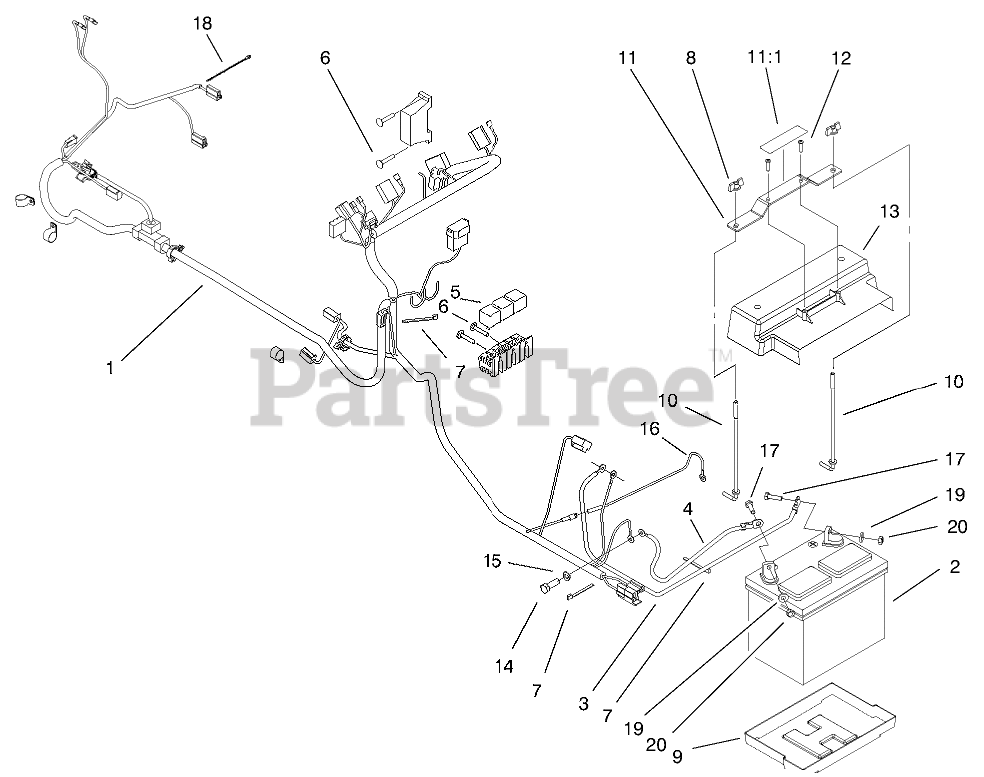

ELECTRICAL ASSEMBLY (MODEL NOS. 73542, & 73570 ONLY) Parts Diagram

  • Title

1

Toro 99-3723

Wire Harness-20/22 HP (Only On: 73542, 73570)

$

$

Not available

2

Toro 94-1867

Battery (Only On: 73542, 73570)
(Superseded to 104-2492)

$

$

Not available

3

Toro 95-7854

Cable-Battery,Red 27" (Only On: 73542, 73570)

$33.99

$

Usually ships in 3-6 days

0

4

Toro 95-7873

Cable-Battery (Only On: 73542, 73570)

$31.99

$

Usually ships in 3-6 days

0

5

Toro 98-7249

Relay-Spdt (Only On: 73542, 73570)

$22.99

$

In Stock, Qty 12

0

6

Toro 12-5450

Screw-Special Vex (Only On: 73542, 73570)

$8.99

$

Usually ships in 3-6 days

0

7

Toro 614249

Strap-Tie Sm (Only On: 73542, 73570)

$1.49

$

In Stock, Qty 20+

0

8

Toro 32103-22

Nut-Wing (Only On: 73542, 73570)

$2.99

$

In Stock, only 2 left!

0

9

Toro 106948

Tray-Battery (Only On: 73542, 73570)

$11.99

$

In Stock, only 1 left!

0

10

Toro 95-4042

Hook-Battery Retain (Only On: 73542, 73570)

$13.99

$

Usually ships in 3-6 days

0

11

Toro 98-5056

Assembly-Strap w/Decal (Only On: 73542, 73570)

$36.99

$

Usually ships in 3-6 days

0

11:1

Toro 93-1265

Decal-Hot Surface (Only On: 73542, 73570)

$6.49

$

Usually ships in 3-6 days

0

12

Toro 94-4496

Screw-Pan Hd (Only On: 73542, 73570)

$1.49

$

In Stock, Qty 20+

0

13

Toro 95-4044

Shield-Battery (Only On: 73542)

$

$

Not available

13

Toro 95-4092

Shield-Battery (Int-l)(Only On: 73570)

$31.99

$

Usually ships in 3-6 days

0

14

Toro 33104-020

Screw-HHF (Only On: 73542, 73570)

$3.49

$

In Stock, only 4 left!

0

15

Toro 3253-4

Washer-Lock/Sp (Only On: 73542, 73570)

$0.99

$

In Stock, Qty 20+

0

16

Toro 98-1492

Wire Harness-Kohler (Only On: 73542, 73570)

$

$

Not available

17

Toro 321-5

Screw-HH (Only On: 73542, 73570)

$0.99

$

In Stock, Qty 20+

0

18

Toro 98-5072

Tie-Cable (Only On: 73542, 73570)

$

$

Not available

19

Toro 3256-22

Washer-Flat (Only On: 73542, 73570)

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-42

Nut-Lock Ni (Only On: 73542, 73570)

$0.99

$

In Stock, Qty 20+

0

Toro NN10277

Fuse-30 Ampere (Only On: 73542, 73570)

$9.99

$

Usually ships in 3-6 days

0

Toro 218-578

Fuse-10 Amp Blade Type (Only On: 73542, 73570)

$2.99

$

In Stock, Qty 6

0

Toro 109102

Fuse-25 Amp (Only On: 73542, 73570)

$5.49

$

In Stock, only 2 left!

0
