73570 (520 xi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) FENDER & FUEL SYSTEM ASSEMBLY Parts Diagram

Garden Tractor

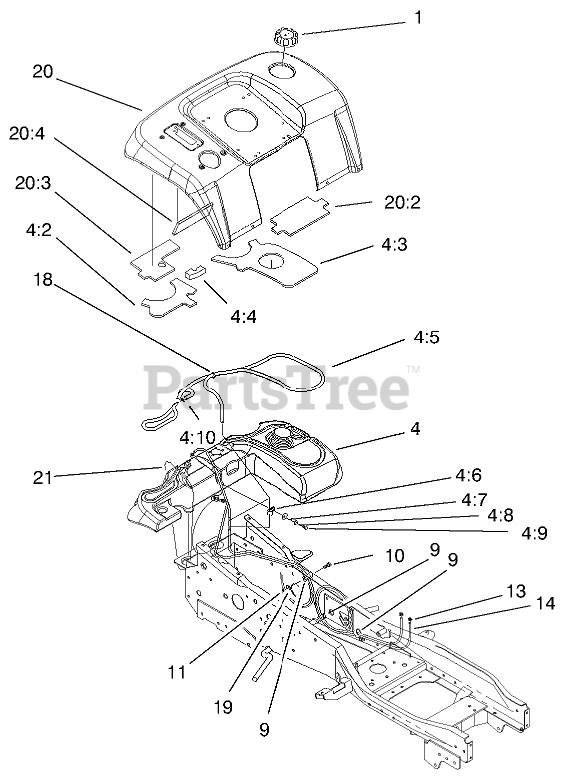

FENDER & FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 95-4192

UNLEADED GAS CAP ASM

$32.99

$

In Stock, only 3 left!

0

4

Toro 99-6141

GAS TANK ASM

$

$

Not available

4:2

Toro 99-6146

FOAM-TANK

$

$

Not available

4:3

Toro 99-6145

FOAM-TANK

$

$

Not available

4:4

Toro 99-6887

FOAM-TANK TOP

$

$

Not available

4:5

Toro 99-8553

HOSE-VENT

$

$

Not available

4:6

Toro 2412-94

CLAMP

$2.99

$

Usually ships in 3-6 days

0

4:7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4:8

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4:8

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

4:9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

4:10

Toro 94-8189

CLAMP-HOSE
(Superseded to 2412-146)

$1.99

$

In Stock, Qty 10

0

9

Toro 98-1616

CLAMP-TUBE
(Superseded to 1-603727)

$2.99

$

Usually ships in 3-6 days

0

10

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 95-4271

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

14

Toro 99-9680

HOSE-FUEL
(Superseded to 108-3282)

$43.99

$

Usually ships in 3-6 days

0

18

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 98-7208

REAR BODY ASM

$

$

Not available

20:2

Toro 95-4159

FOAM - TANK LH

$

$

Not available

20:3

Toro 95-4258

COVER-BRACE

$

$

Not available

20:4

Toro 95-4157

FOAM-TANK CENTER

$

$

Not available

21

Toro 99-5901

TIE-CABLE

$8.49

$

Usually ships in 3-6 days

0
