73570 (520 xi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) HOOD & HEADLIGHT ASSEMBLY Parts Diagram

Garden Tractor

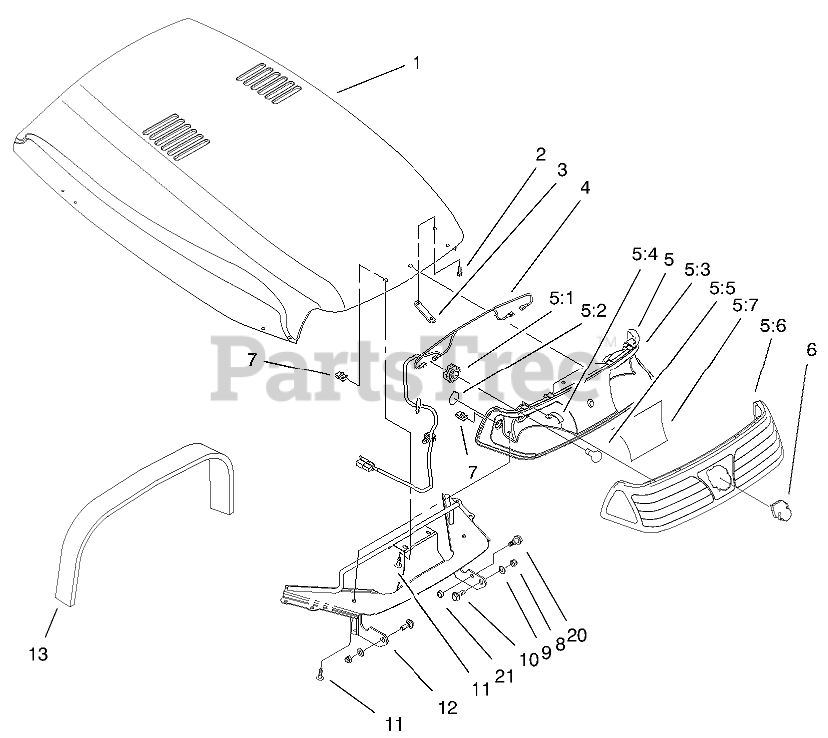

HOOD & HEADLIGHT ASSEMBLY Parts Diagram

  • Title
1

Toro 98-7205

HOOD ASM

$

$

Not available

2

Toro 63-8590

SCREW

$1.49

$

In Stock, Qty 6

0

3

Toro 99-2323

PLATE-NUT

$

$

Not available

4

Toro 95-0691

HARNESS-WIRE, LIGHTS

$

$

Not available

5

Toro 95-4166

HEADLIGHT ASM

$

$

Not available

5:1

Toro 98-3591

SEALED SOCKET ASM

$

$

Not available

5:2

Toro 98-1602

DECAL-SIDELIGHT

$

$

Not available

5:3

Toro 94-2098

REFLECTOR-HEADLIGHT
(Superseded to 95-4166)

$

$

Not available

5:4

Toro 95-4129

CLIP-RETAINER

$3.99

$

Usually ships in 3-6 days

0

5:5

Toro 7228

BULB

$23.99

$

Usually ships in 3-6 days

0

5:6

Toro 94-2099

LENS-HEADLIGHT

$143.99

$

Usually ships in 3-6 days

0

5:7

Toro 98-3597

DECAL-REFLECTOR, HEADLIGHT

$47.99

$

Usually ships in 3-6 days

0

6

Toro 95-4248

EMBLEM

$28.99

$

Usually ships in 3-6 days

0

7

$2.99

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

11

Toro 92-7020

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

12

Toro 99-4962-03

BULKHEAD-FRONT

$

$

Not available

13

Toro 95-4078

SEAL-FOAM, REAR

$

$

Not available

20

Toro 92-6986

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

21

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0
