73570 (520 xi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) DASH ASSEMBLY Parts Diagram

Garden Tractor

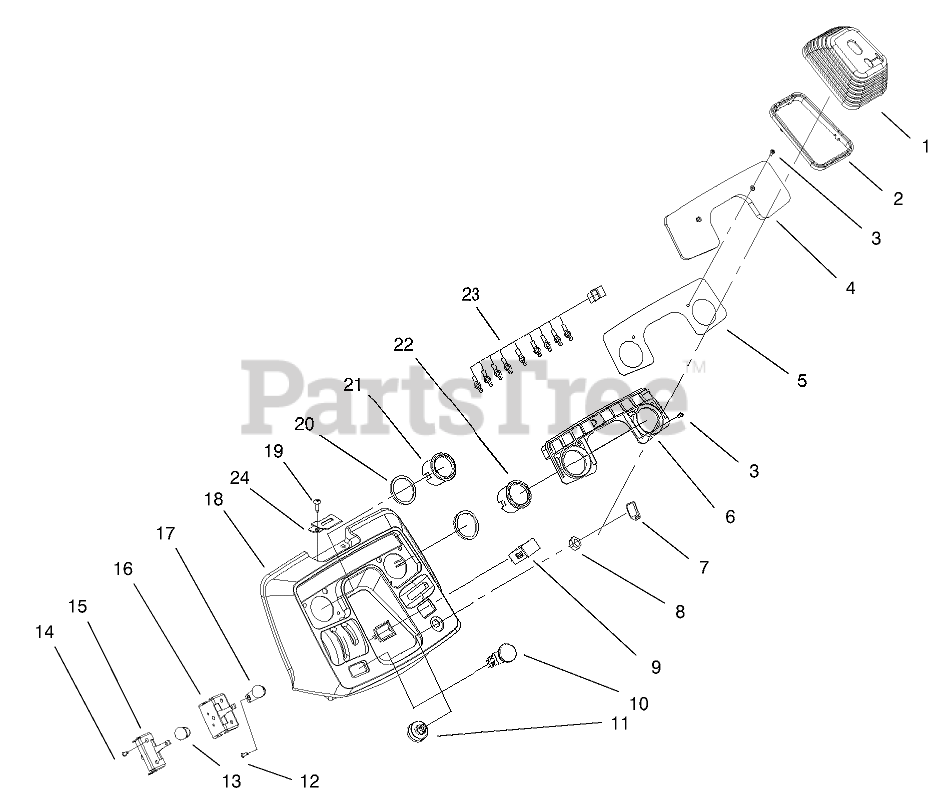

DASH ASSEMBLY Parts Diagram

  • Title

1

Toro 94-2102

BOOT-STEERING

$

$

Not available

2

Toro 95-3844

RETAINER-BOOT

$

$

Not available

3

Toro 95-4234

SCREW-PPH

$2.49

$

In Stock, Qty 6

0

4

Toro 95-3842

LENS-DASH

$

$

Not available

5

Toro 95-4072

Decal-Dash Lens (only on: 73542, 73570)

$25.99

$

Usually ships in 3-6 days

0

5

Toro 95-4071

Decal-Dash Lens (only on: 73471)

$

$

Not available

6

Toro 95-3843

HOUSING-LIGHT, DASH

$

$

Not available

7

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 12

0

8

Toro 700919

NUT

$5.49

$

In Stock, only 2 left!

0

9

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$67.99

$

In Stock, Qty 7

0

10

Toro 95-7489

SWITCH-PTO

$34.99

$

In Stock, only 1 left!

0

11

Toro 92-6785

SWITCH-IGNITION

$74.99

$

In Stock, only 1 left!

0

12

Toro 95-4236

SCREW-PPHTF

$

$

Not available

13

Toro 94-2121

KNOB-THROTTLE

$

$

Not available

14

Toro 32144-32

SCREW

$2.49

$

Usually ships in 3-6 days

0

15

Toro 95-4036

THROTTLE CONTROL ASM

$

$

Not available

16

Toro 95-4035

CHOKE CONTROL ASM

$60.99

$

Usually ships in 3-6 days

0

17

Toro 94-2122

KNOB-CHOKE

$22.99

$

Usually ships in 3-6 days

0

18

Toro 94-2101

DASH

$273.99

$

Usually ships in 3-6 days

0

19

Toro 92-7020

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

20

Toro 95-4238

GASKET-FOAM

$2.99

$

Usually ships in 3-6 days

0

21

Toro 94-7616

GAUGE-OIL TEMPERATURE

$

$

Not available

22

Toro 95-3830

GAUGE-FUEL

$184.99

$

Usually ships in 3-6 days

0

23

Toro 99-3719

Harness-Light Khl 18 (only on: 73471)

$

$

Not available

23

Toro 99-3720

Harness-Light Khl 20,22 (only on: 73542, 73570)

$

$

Not available

24

Toro 95-4287

Guard-Latch (only on: 73570)

$

$

Not available
