73570 (520 xi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) FENDER & FUEL SYSTEM ASSEMBLY Parts Diagram

Garden Tractor

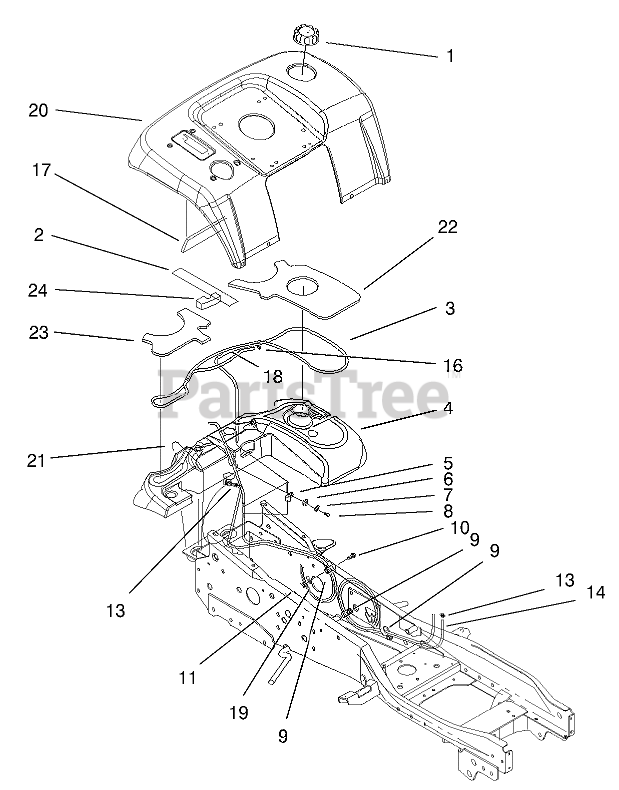

FENDER & FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 95-4192

UNLEADED GAS CAP ASM

$32.99

$

In Stock, only 3 left!

0

2

Toro 95-4270

Tape-3m

$

$

Not available

3

Toro 99-8553

HOSE-VENT

$

$

Not available

4

Toro 99-6141

GAS TANK ASM

$

$

Not available

5

Toro 2412-94

CLAMP

$2.99

$

Usually ships in 3-6 days

0

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

9

Toro 98-1616

CLAMP-TUBE
(Superseded to 1-603727)

$2.99

$

Usually ships in 3-6 days

0

10

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 95-4271

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

14

Toro 99-9680

HOSE-FUEL
(Superseded to 108-3282)

$43.99

$

Usually ships in 3-6 days

0

16

Toro 94-8189

CLAMP-HOSE
(Superseded to 2412-146)

$1.99

$

In Stock, Qty 10

0

17

Toro 95-4157

FOAM-TANK CENTER

$

$

Not available

18

Toro 614249

Tie Strap (only on: 73471, 73542)

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 98-7208

REAR BODY ASM

$

$

Not available

21

Toro 99-5901

TIE-CABLE

$8.49

$

Usually ships in 3-6 days

0

22

Toro 99-6145

FOAM-TANK

$

$

Not available

23

Toro 99-6146

FOAM-TANK

$

$

Not available

24

Toro 99-6887

FOAM-TANK TOP

$

$

Not available
