73570 (520 xi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) Group 10-Air Intake (models 73542 73570) Parts Diagram

Garden Tractor

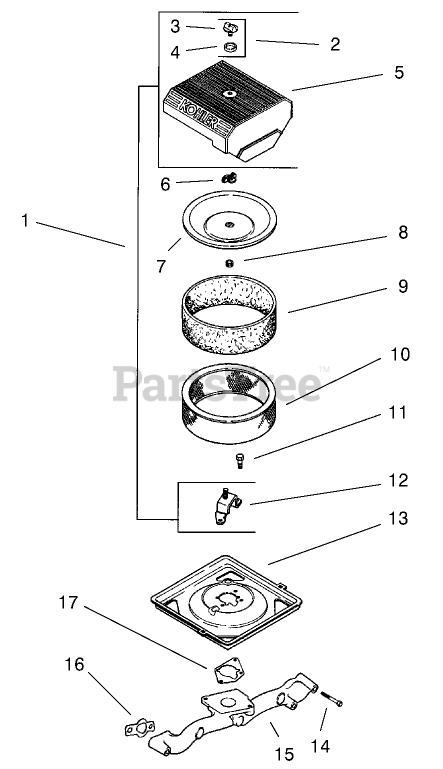

Group 10-Air Intake (models 73542 73570) Parts Diagram

  • Title

1

Toro 24 743 05

Kit-Air Cleaner Cover

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

2

Toro 54 755 01

Kit, knob with seal (Includes 3-4)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

3

Toro 25 341 03

Knob-Cover

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

4

Toro 24 153 15

O-Ring

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

5

Toro 24 096 24

Cover-Air Cleaner

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

6

12_100_01

Nut-Wing

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Not available

7

Toro 24_096_01

Cover-Inner Air Cleaner

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

8

Toro 24_032_03

Seal-Air Intake (Only On: 72103)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

9

Toro 24_083_02

Element-Precleaner

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

10

Toro 47_083_03

Element-Air Cleaner

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

11

Toro M-0639016

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

12

Toro 24 126 21

Bracket-Air Cleaner

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

13

Toro 24 094 03

Base-Air Cleaner

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

14

Toro M-0651055

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

15

Toro 24_164_14

Manifold

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

16

Toro 24_041_01

Gasket-Intake Manifold

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

17

Toro 24_041_06

Gasket-Air Cleaner

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable
