73570 (520 xi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) Group 3-Oil Pan Lubrication (model 73471 Only) Parts Diagram

Garden Tractor

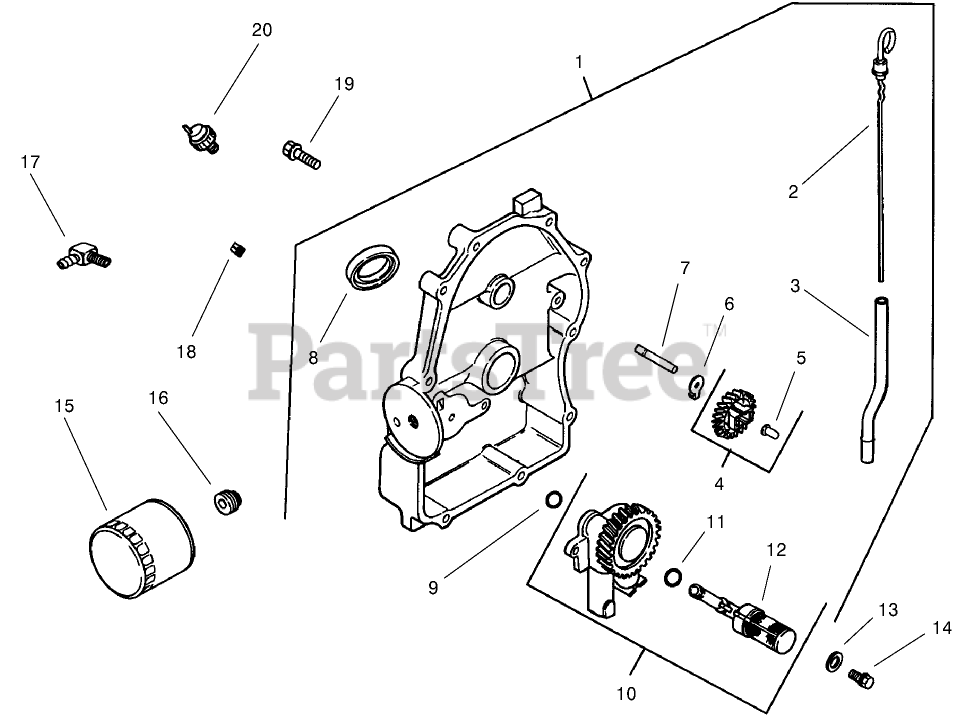

Group 3-Oil Pan Lubrication (model 73471 Only) Parts Diagram

  • Title

1

Toro 54 009 01

Plate, closure assembly (Includes 2-12)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

2

Toro 24 038 06

Dipstick

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

3

Toro 24 123 08

Tube-Dipstick

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

4

Toro 24_043_12

Kit-Governor Gear Assembly (Incl. Ref. #7)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

5

Toro 12_380_01

Pin-Governor

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

6

Toro 52_448_02

Tab-Locking

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

7

12_144_02

Shaft-Govenor Gear

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

8

Toro 52_032_08

Seal-Oil

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

9

Toro 24_153_08

O Ring

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

10

Toro 24 393 10

Oil pump assembly (Includes 11, 12)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

11

Toro 24_153_01

ORing

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

12

Toro 24 381 04

Pick Up-Oil

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

13

Toro M-0631005

Washer

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

14

Toro M-0645025

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

15

12_050_01

Filter-Oil

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

16

Toro 24_136_01

Nipple-Oil Filter

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

17

Toro 25 155 02

Connector

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

18

Toro X-75-23

Plug

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

19

Toro 24_086_16

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

20

Toro 52_099_06

Switch-Oil Pressure

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro 25 113 05

Decal-Oil Sentry

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro 25 113 05

Decal-Oil Sentry

Note: Not illustrated

$

$

Currently unavailable
