73570 (520 xi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) Group 5-Ignition/electrical (model 73741 Only) Parts Diagram

Garden Tractor

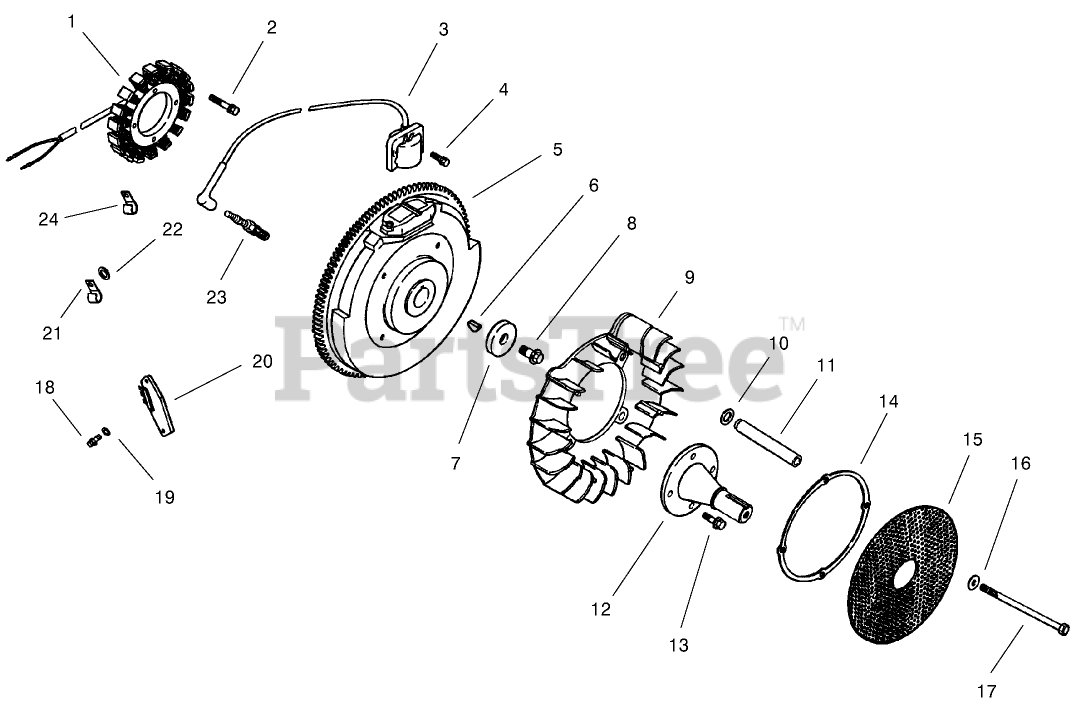

Group 5-Ignition/electrical (model 73741 Only) Parts Diagram

  • Title

1

Toro 24 085 03

Kit, 15 amp stator (Incl. 24 126 71 bracket)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

2

Toro M-0548025

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

3

Toro 24_584_01

Module-Ignition

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

4

Toro M-0545020

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

5

Toro 24_025_01

Flywheel Assembly

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

6

Toro X-42-15

Key

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

7

Toro 12_468_03

Washer

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

8

12_086_14

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

9

Toro 24 157 03

Fan (Only On: 72103, 72083)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

10

Toro 24 468 11

Washer, sping

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

11

Toro 24 112 14

Spacer

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

12

Toro 24 144 25

Shaft, front drive

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

13

Toro M-0839025

Screw M8x1.25x22 (Only On: 72042, 72043, 72062, 72063)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

14

Toro 24 141 06

Ring-Support

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

15

Toro 24 162 22

Screen-Grass

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

16

Toro X-25-53

Washer

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

17

Toro M-0603100

Screw-Hex

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

18

Toro 24_086_18

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

19

Toro X-25-92

Washer

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

20

Toro 25_403_03

Rectifier-Regulator

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

21

Toro 235173

Clip

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

22

Toro X-25-63

Washer

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

23

12_132_02

Spark Plug

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

24

Toro 48_154_02

Clip

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro 25 518 28

Lead-Black

Note: Not illustrated

$

$

Currently unavailable

Toro 25 518 28

Lead-Black

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro 24 176 08

Harness, wiring

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro 24 176 08

Harness, wiring

Note: Not illustrated

$

$

Currently unavailable

Toro 24 176 49

Harness, wiring (Includes 3 connectors)

Note: Not illustrated

$

$

Currently unavailable

Toro 24 176 49

Harness, wiring (Includes 3 connectors)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro 236602

Connector

Note: Not illustrated

$

$

Currently unavailable

Toro 236602

Connector

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro 15 155 01

Connector

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro 15 155 01

Connector

Note: Not illustrated

$

$

Currently unavailable

Toro 52 155 04

Connector

Note: Not illustrated

$

$

Currently unavailable

Toro 52 155 04

Connector

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro 24 126 71

Bracket-Wire, Stator

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro 24 126 71

Bracket-Wire, Stator

Note: Not illustrated

$

$

Currently unavailable

Toro 25_086_43

Screw

Note: Not illustrated

$

$

Currently unavailable

Toro 25_086_43

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro X-22-11

Washer-Lock (Only On: 72042, 72063, 72062, 72043)

Note: Not illustrated

$

$

Currently unavailable

Toro X-22-11

Washer-Lock (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro 41 155 03

Connector

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro 41 155 03

Connector

Note: Not illustrated

$

$

Currently unavailable

Toro 277563

Connector

Note: Not illustrated

$

$

Currently unavailable

Toro 277563

Connector

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro X-67-3

Screw

Note: Not illustrated

$

$

Currently unavailable

Toro X-67-3

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable
