73570 (520 xi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) Group 6-Blower Housing Baffles (model 73471 Only) Parts Diagram

Garden Tractor

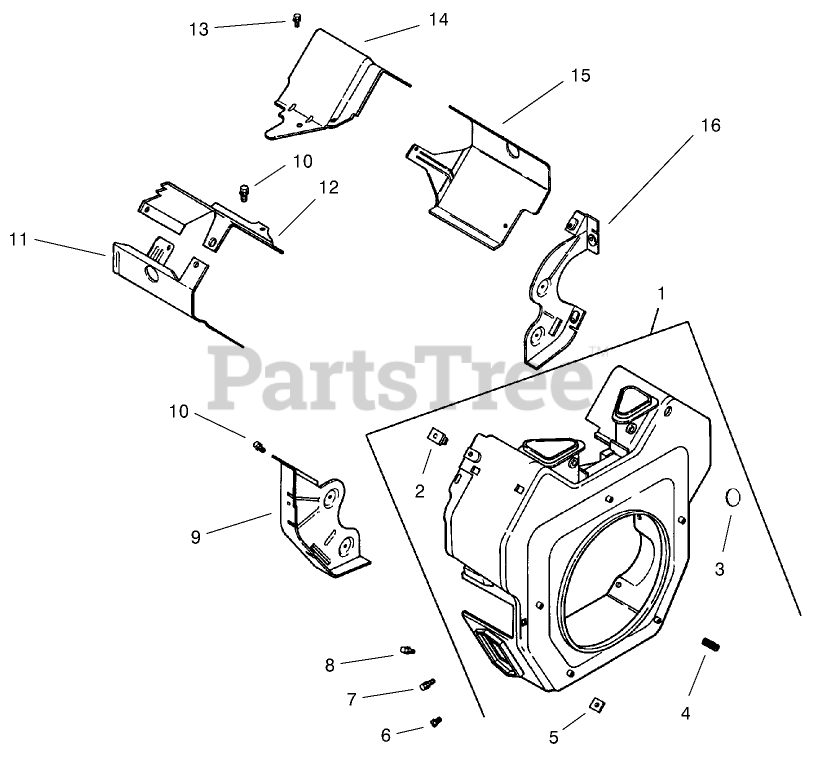

Group 6-Blower Housing Baffles (model 73471 Only) Parts Diagram

  • Title

1

Toro 24 027 83

Housing, blower (Includes 2-5)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

2

Toro 24_100_02

Nut INCL W/Blower Hsng (Only On: 72103)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

3

Toro 24 755 90

Kit, button plug

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

4

Toro 24 086 43

Screw-Set

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

5

Toro 24_100_01

Nut

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

6

Toro M-0551016

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

7

Toro M-0545016

Screw M5x0.8x16 (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

8

Toro M-0545020

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

9

Toro 24_146_02

Plate-Backing #2 side

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

10

Toro M-0645016

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

11

Toro 24_063_20

Baffle Cylinder #2 Side

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

12

Toro 24_063_17

Baffle-Valley #2 side

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

13

Toro M-0545010

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

14

Toro 24_063_24

Baffle, Valley 1 side

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

15

Toro 24 063 30

Baffle-Cyl. #1 Side

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

16

Toro 24_146_08

Plate-Backing #1

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

Toro 24 113 11

Decal-HP

Note: Not illustrated

$

$

Currently unavailable

Toro 24 113 11

Decal-HP

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable
