73570 (520 xi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) Group 7-Starting System (model 73471 Only) Parts Diagram

Garden Tractor

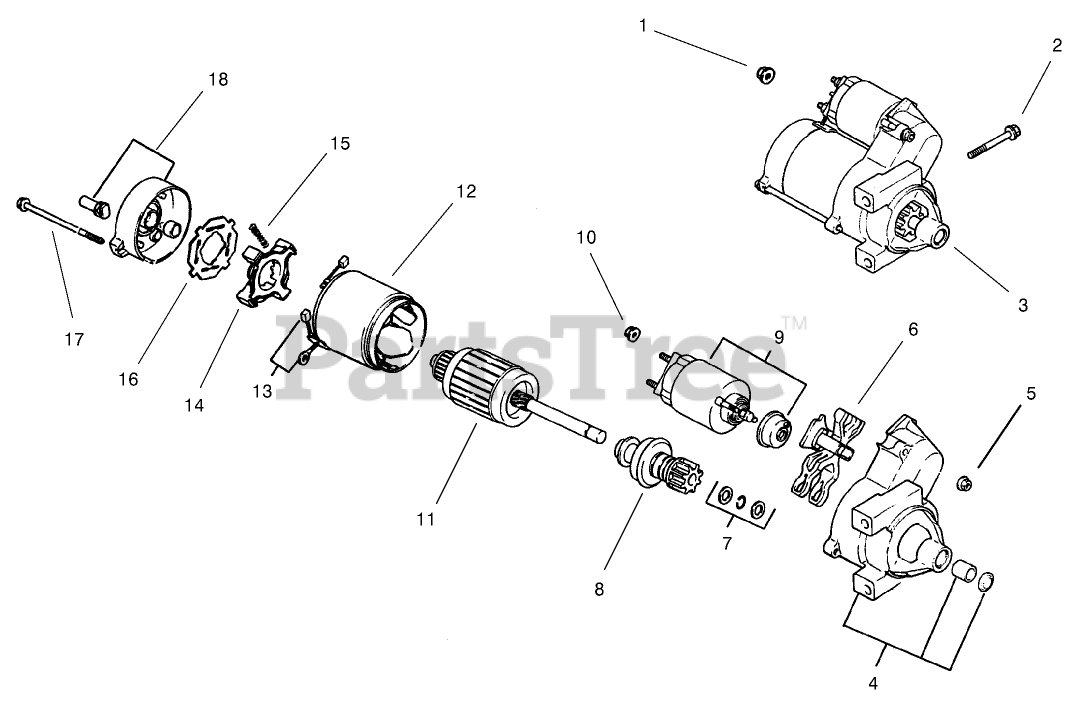

Group 7-Starting System (model 73471 Only) Parts Diagram

  • Title

1

Toro M-0841080

Nut

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

2

Toro M-0839080

Screw M8x1.25x80 (Only On: 72103, 72083)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

3

Toro 24_098_01

Starter-Solenoid Shift (Incl. Ref. #4-20)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

4

Toro 24_081_04

Cap-Drive End

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

5

Toro 52_100_10

Nut Starter

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

6

12_090_10

Lever Starter Drive

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

7

Toro 24 755 84

Washer

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

8

Toro 12_239_01

Drive-Pinion

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

9

Toro 52_435_02

Solenoid

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

10

Toro 52_100_09

Nut

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

11

Toro 12 170 04

Armature-Starter

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

12

Toro 12_471_01

Frame

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

13

Toro 52_221_01

Kit-Brush (Incl. Ref. # 16)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

14

Toro 52_323_03

Holder-Brush

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

15

Toro 52_089_09

Spring-Brush

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

16

Toro 52_168_01

Insulator

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

17

Toro 52_211_05

Bolt

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

18

Toro 24 301 01

Commutator-End Cap

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable
