73570 (520 xi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) Group 8-Fuel System (models 73542 73570) Parts Diagram

Garden Tractor

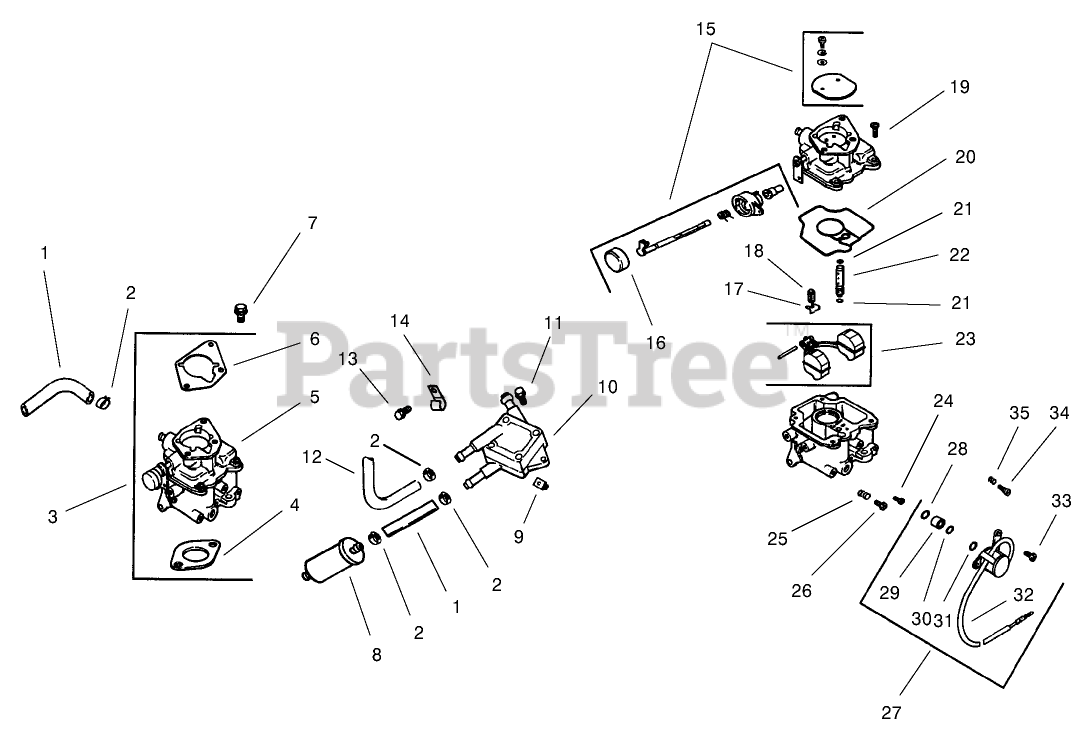

Group 8-Fuel System (models 73542 73570) Parts Diagram

  • Title

1

Toro 25_353_10

Line-Fuel

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

2

Toro X-426-9

Clamp

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

3

Toro 24 853 32

Kit, carburetor w/gasket (Includes 4-6)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

4

Toro 24_041_06

Gasket-Air Cleaner

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

5

Toro 24 053 32

Carburetor assembly (Includes 15-35)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

6

Toro 24_041_17

Gasket-Carburetor

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

7

Toro M-0651030

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

8

Toro 24 050 02

Filter-Fuel

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

9

Toro 24_100_01

Nut

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

10

Toro 24_393_04

Pump-Fuel

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

11

Toro 24_086_12

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

12

Toro 24 353 04

Line, fuel17"

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

13

Toro M-0650012

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

14

Toro 47 154 01

Clip-Cable (Only On: 72103)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

15

Toro 24_757_07

Kit-Choke Repair (Incl. Ref. #33

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

16

Toro 24_173_02

Cap-Choke Lever Carburetor Assembly (Incl. Ref. #1-25 32)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

17

Toro 24_154_01

Clip-Inlet Needle Valve

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

18

Toro 24_462_01

Valve-Inlet Needle

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

19

Toro 24_086_09

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

20

Toro 24_041_09

Gasket-Carburetor Body

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

21

Toro 24_153_02

ORing

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

22

Toro 24_337_01

Jet-Slow

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

23

Toro 24_757_02

Kit-Float Repair

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

24

Toro 24_337_02

Jet-Main

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

25

Toro 24_089_10

Spring-Idle Speed Adjust

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

26

Toro 24_086_10

Screw-Idle Speed Adjust

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

27

Toro 24_757_01

Kit-Solenoid Assembly

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

28

Toro 24_153_06

ORing

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

29

Toro 24_521_01

Seat-Solenoid

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

30

Toro 24_153_05

ORing

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

31

Toro 24_153_04

ORing

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

32

Toro 24_435_01

Solenoid

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

33

Toro 24_086_07

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

34

Toro 24_368_01

Needle-Idle Adjust

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

35

Toro 24_089_11

Spring-Idle Adjust

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

Toro 24_757_03

Kit-Carburetor Repair

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Currently unavailable

Toro 24_757_03

Kit-Carburetor Repair

Note: Not illustrated

$

$

Currently unavailable
