73570 (520 xi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) UPPER HYDRO LIFT ASSEMBLY Parts Diagram

Garden Tractor

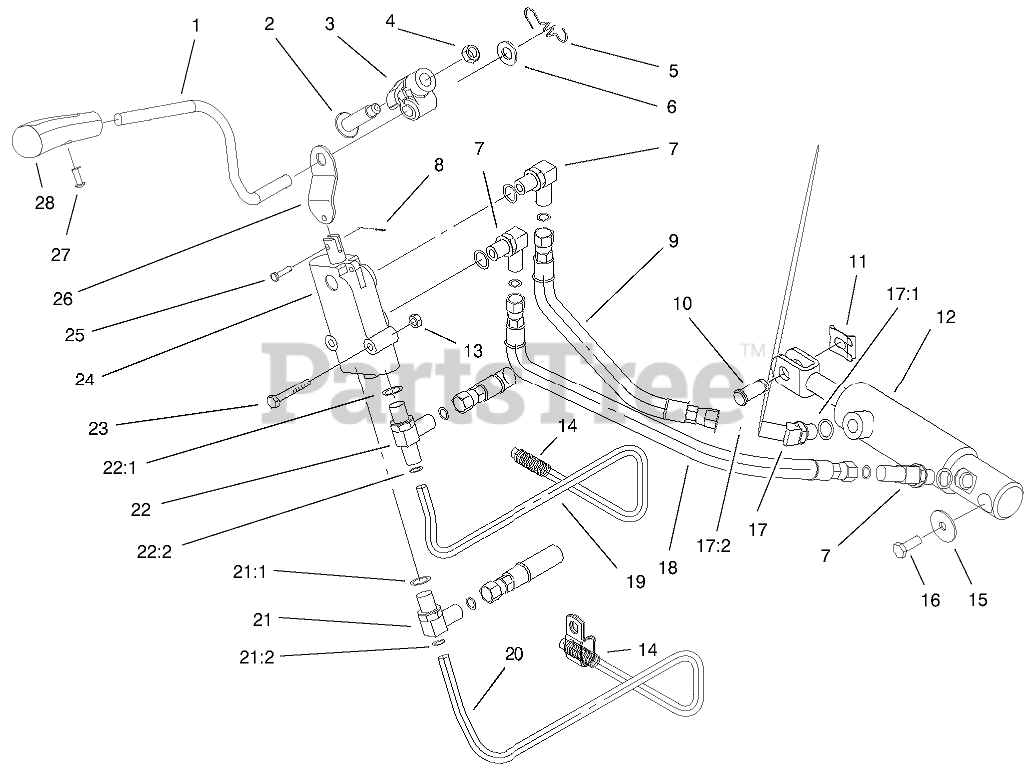

UPPER HYDRO LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 94-7714

HANDLE-LIFT

$34.99

$

Usually ships in 3-6 days

0

2

Toro 92-1099

BOLT-SHOULDER

$7.49

$

In Stock, Qty 10

0

3

Toro 95-4168

TRUNNION-LEVER, LIFT

$

$

Not available

4

Toro 610358

NUT-JAM, LOCKING

$2.49

$

In Stock, Qty 12

0

5

Toro 95-4221

SPRING-EXTENSION, LIFT

$

$

Not available

6

Toro 95-4235

WASHER

$

$

Not available

7

Toro 95-4141

FITTING-HYD, 90 DEGREE
(Superseded to 340-82)

$23.99

$

In Stock, only 1 left!

0

8

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

9

Toro 94-7945

HOSE ASM

$57.99

$

Usually ships in 3-6 days

0

10

Toro 98-1639

PIN-CLEVIS

$5.99

$

Usually ships in 3-6 days

0

11

Toro 95-4064

CLIP-PIN
(Superseded to 138-8491)

$7.49

$

In Stock, Qty 6

0

12

Toro 94-2300

LIFT CYLINDER ASM

$1075.99

$

Usually ships in 3-6 days

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 95-4258

COVER-BRACE

$

$

Not available

15

Toro 3256-57

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

16

Toro 95-4245

SCREW-THREAD LOCKING

$2.49

$

Usually ships in 3-6 days

0

17

Toro 95-4136

FITTING-HYD, 45 DEGREE
(Superseded to 340-137)

$43.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

17:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

18

Toro 94-7944

HOSE ASM

$60.99

$

Usually ships in 3-6 days

0

19

Toro 94-7970

TUBE-HYD

$110.99

$

In Stock, only 1 left!

0

20

Toro 95-3806

TUBE - HYDRAULIC

$151.99

$

Usually ships in 3-6 days

0

21

Toro 95-4138

FITTING-HYD. STRAIGHT
(Superseded to 340-2)

$11.99

$

In Stock, only 2 left!

0

21:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

21:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

22

Toro 95-4137

FITTING-HYD, LONG

$63.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

22:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

23

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 94-2458

VALVE - HYDRO LIFT

$

$

Not available

25

Toro 283-16

PIN-CLEVIS

$7.49

$

Usually ships in 3-6 days

0

26

Toro 98-1620

LINK-LIFT

$

$

Not available

27

Toro 95-4236

SCREW-PPHTF

$

$

Not available

28

Toro 94-2100

Knob-Lift (only on: 73471, 73542)

$24.99

$

Usually ships in 3-6 days

0

28

Toro 95-4106

Knob-Lift (Int-l)(only on: 73570)

$

$

Not available
