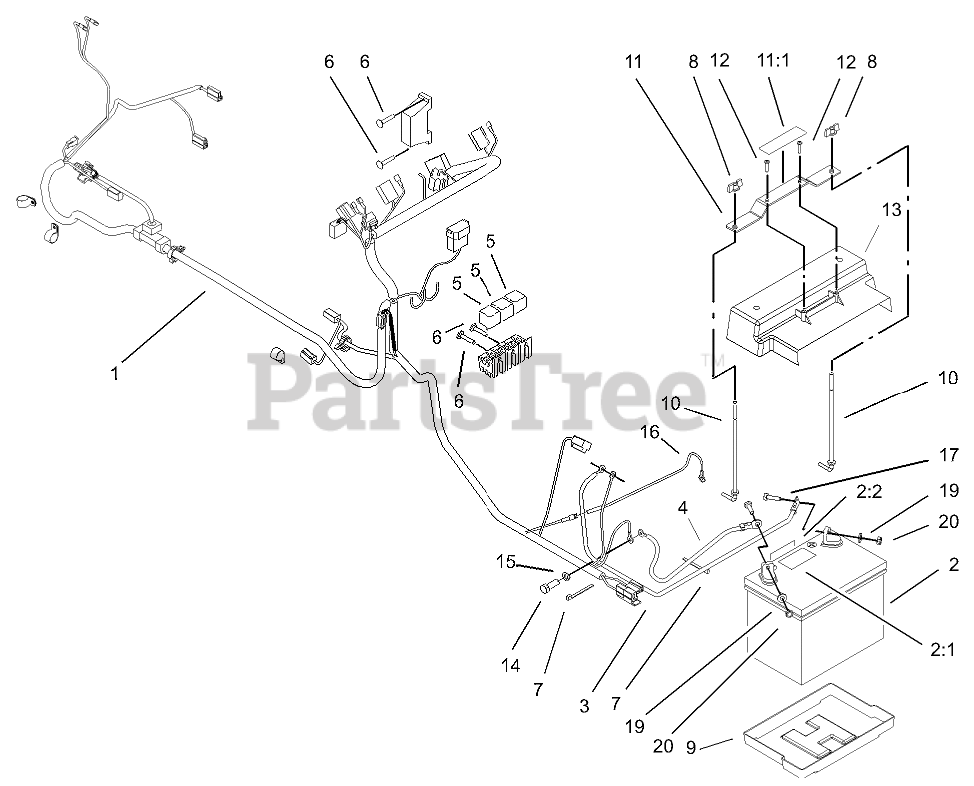

73570 (520 xi) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) ELECTRICAL ASSEMBLY Parts Diagram

Garden Tractor

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 99-3723

HARNESS-WIRE

$

$

Not available

2

Toro 104-2492

BATTERY-DRY

$

$

Not available

2:1

Toro 104-4163

Decal-Battery

$

$

Currently unavailable

2:2

Toro 104-5091

Decal-Battery

$

$

Currently unavailable

3

Toro 95-7854

CABLE-BATTERY, RED 27IN

$33.99

$

Usually ships in 3-6 days

0

4

Toro 95-7873

CABLE-BATTERY

$31.99

$

Usually ships in 3-6 days

0

5

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 12

0

6

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

7

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

8

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 2 left!

0

9

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

10

Toro 95-4042

HOOK-RETAIN, BATTERY

$13.99

$

Usually ships in 3-6 days

0

11

Toro 98-5056

STRAP ASM

$36.99

$

Usually ships in 3-6 days

0

11:1

Toro 93-1265

DECAL-SURFACE, HOT

$6.49

$

Usually ships in 3-6 days

0

12

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Toro 95-4092

SHIELD - BATTERY

$31.99

$

Usually ships in 3-6 days

0

14

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 4 left!

0

15

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 98-1492

HARNESS-WIRE

$

$

Not available

17

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

Toro 109102

FUSE-BLADE, 25 AMP

Note: Not illustrated

$5.49

$

In Stock, only 1 left!

0

Toro 218-578

FUSE-BLADE, 10 AMP

Note: Not illustrated

$2.99

$

In Stock, Qty 6

0

Toro NN10277

FUSE-30 AMP

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0
