73570 (520 xi) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) GROUP 5-IGNITION/ELECTRICAL ASSEMBLY Parts Diagram

Garden Tractor

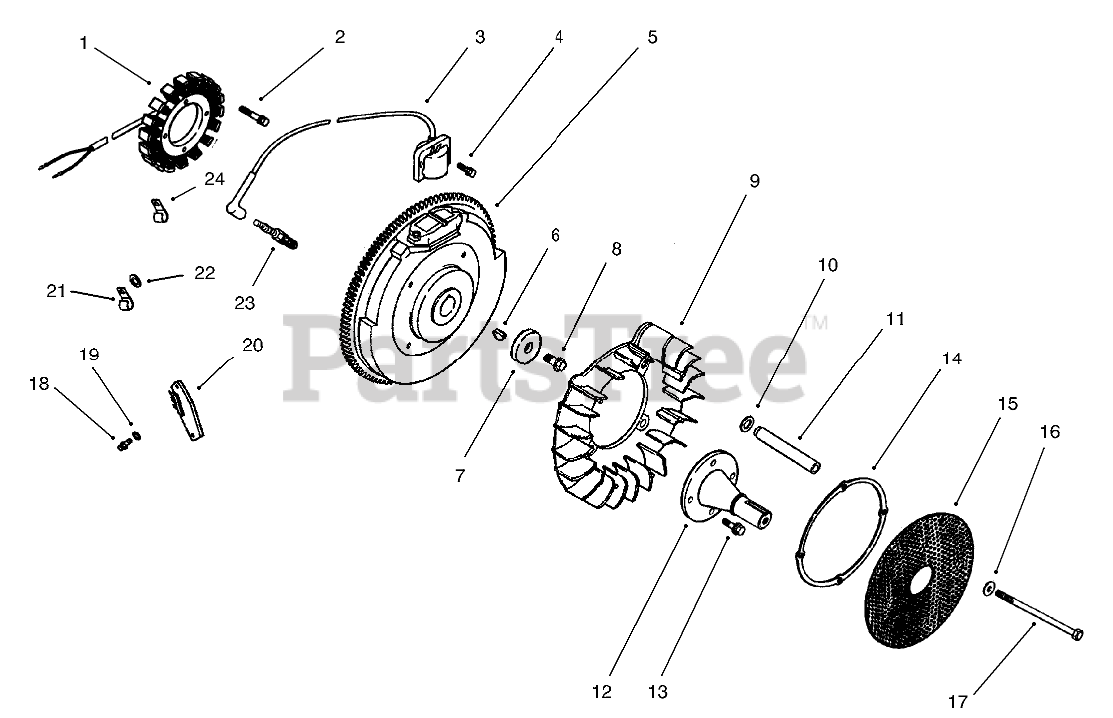

GROUP 5-IGNITION/ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Kohler 54 755 09

Kit, 15 amp stator (Incl. 24 126 71bracket)
(Superseded to 54 755 09-S)

Note: Used in Groundsmaster 4000 Series

$149.99

$

In Stock, Qty 6

0

2

Kohler M-0548025

Screw
(Superseded to M-548025)

Note: Used in Groundsmaster 4000 Series

$3.49

$

In Stock, Qty 12

0

3

Kohler 24 584 01

Module-Ignition
(Superseded to 24 584 01-S)

Note: Used in Groundsmaster 4000 Series

$93.99

$

Usually ships in 2-5 days

0

4

Kohler M-0545020

Screw

Note: Used in Groundsmaster 4000 Series

$

$

Not available

5

2402501

Flywheel

Note: Used in Groundsmaster 4000 Series

$

$

Not available

6

Kohler X-42-15

Key
(Superseded to X-42-15-S)

Note: Used in Groundsmaster 4000 Series

$2.99

$

In Stock, Qty 20+

0

7

Kohler 12 468 03

Washer
(Superseded to 25 468 09-S)

Note: Used in Groundsmaster 4000 Series

$6.49

$

In Stock, Qty 5

0

8

Kohler 12 086 14

Screw
(Superseded to 25 086 361-S)

Note: Used in Groundsmaster 4000 Series

$4.49

$

In Stock, Qty 8

0

9

2415703

Fan

Note: Used in Groundsmaster 4000 Series

$

$

Not available

10

2446811

Washer, sping

Note: Used in Groundsmaster 4000 Series

$

$

Not available

11

Kohler 24 112 14

Spacer
(Superseded to 24 112 14-S)

Note: Used in Groundsmaster 4000 Series

$23.99

$

In Stock, Qty 11

0

12

2414425

Shaft, front drive

Note: Used in Groundsmaster 4000 Series

$

$

Not available

13

Kohler M-0839025

Screw
(Superseded to M-839025)

Note: Used in Groundsmaster 4000 Series

$2.49

$

Usually ships in 2-5 days

0

14

2414106

Ring-Support

Note: Used in Groundsmaster 4000 Series

$

$

Not available

15

Kohler 24 162 22

Screen-Grass
(Superseded to 24 162 38-S)

Note: Used in Groundsmaster 4000 Series

$24.99

$

In Stock, only 1 left!

0

16

Kohler X-25-53

Washer
(Superseded to X-25-53-S)

Note: Used in Groundsmaster 4000 Series

$3.49

$

In Stock, Qty 14

0

17

Kohler M-0603100

Screw-Hex
(Superseded to M-603100-S)

Note: Used in Groundsmaster 4000 Series

$4.49

$

In Stock, Qty 7

0

18

Kohler 24 086 18

Screw
(Superseded to 24 086 18-S)

Note: Used in Groundsmaster 4000 Series

$2.49

$

Usually ships in 2-5 days

0

19

Kohler X-25-92

Washer
(Superseded to X-25-92-S)

Note: Used in Groundsmaster 4000 Series

$2.99

$

In Stock, only 2 left!

0

20

Kohler 25 403 03

Rectifier-Regulator
(Superseded to 25 403 03-S)

Note: Used in Groundsmaster 4000 Series

$105.99

$

Usually ships in 2-5 days

0

21

Kohler 235173

Clip
(Superseded to 235173-S)

Note: Used in Groundsmaster 4000 Series

$11.99

$

Usually ships in 2-5 days

0

22

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Used in Groundsmaster 4000 Series

$2.49

$

Usually ships in 2-5 days

0

23

Kohler 12 132 02

Plug-Spark
(Superseded to 12 132 02-S)

Note: Used in Groundsmaster 4000 Series

$3.99

$

Usually ships in 2-6 days

0

24

Kohler 48 154 02

Clip
(Superseded to 48 154 02-S)

Note: Used in Groundsmaster 4000 Series

$16.99

$

Usually ships in 2-5 days

0

2551828

Lead-Black

Note: Used in Groundsmaster 4000 Series

$

$

Not available

2551828

Lead-Black

Note: Not illustrated

$

$

Not available

2417608

Harness, wiring

Note: Not illustrated

$

$

Not available

2417608

Harness, wiring

Note: Used in Groundsmaster 4000 Series

$

$

Not available

Kohler 24 176 49

Harness, wiring (Includes 3connectors)
(Superseded to 24 176 49-S)

Note: Not illustrated

$25.99

$

Usually ships in 2-5 days

0

Kohler 24 176 49

Harness, wiring (Includes 3connectors)
(Superseded to 24 176 49-S)

Note: Used in Groundsmaster 4000 Series

$25.99

$

Usually ships in 2-5 days

0

Kohler 236602

Connector
(Superseded to 236602-S)

Note: Used in Groundsmaster 4000 Series

$31.99

$

In Stock, Qty 14

0

Kohler 236602

Connector
(Superseded to 236602-S)

Note: Not illustrated

$31.99

$

In Stock, Qty 14

0

1515501

Connector

Note: Not illustrated

$

$

Not available

1515501

Connector

Note: Used in Groundsmaster 4000 Series

$

$

Not available

5215504

Connector

Note: Used in Groundsmaster 4000 Series

$

$

Not available

5215504

Connector

Note: Not illustrated

$

$

Not available

Kohler 24 126 71

Bracket-Wire, Stator
(Superseded to 24 126 71-S)

Note: Not illustrated

$15.99

$

Usually ships in 2-5 days

0

Kohler 24 126 71

Bracket-Wire, Stator
(Superseded to 24 126 71-S)

Note: Used in Groundsmaster 4000 Series

$15.99

$

Usually ships in 2-5 days

0

2508643

Screw-Set

Note: Used in Groundsmaster 4000 Series

$

$

Not available

2508643

Screw-Set

Note: Not illustrated

$

$

Not available

Kohler X-22-11

Washer
(Superseded to X-22-11-S)

Note: Used in Groundsmaster 4000 Series

$2.49

$

In Stock, only 2 left!

0

Kohler X-22-11

Washer
(Superseded to X-22-11-S)

Note: Not illustrated

$2.49

$

In Stock, only 2 left!

0

4115503

Connector

Note: Not illustrated

$

$

Not available

4115503

Connector

Note: Used in Groundsmaster 4000 Series

$

$

Not available

Kohler 277563

Connector
(Superseded to 277563-S)

Note: Not illustrated

$6.49

$

Usually ships in 2-5 days

0

Kohler 277563

Connector
(Superseded to 277563-S)

Note: Used in Groundsmaster 4000 Series

$6.49

$

Usually ships in 2-5 days

0

Kohler X-67-3

Screw
(Superseded to X-67-3-S)

Note: Not illustrated

$3.49

$

Usually ships in 2-5 days

0

Kohler X-67-3

Screw
(Superseded to X-67-3-S)

Note: Used in Groundsmaster 4000 Series

$3.49

$

Usually ships in 2-5 days

0
