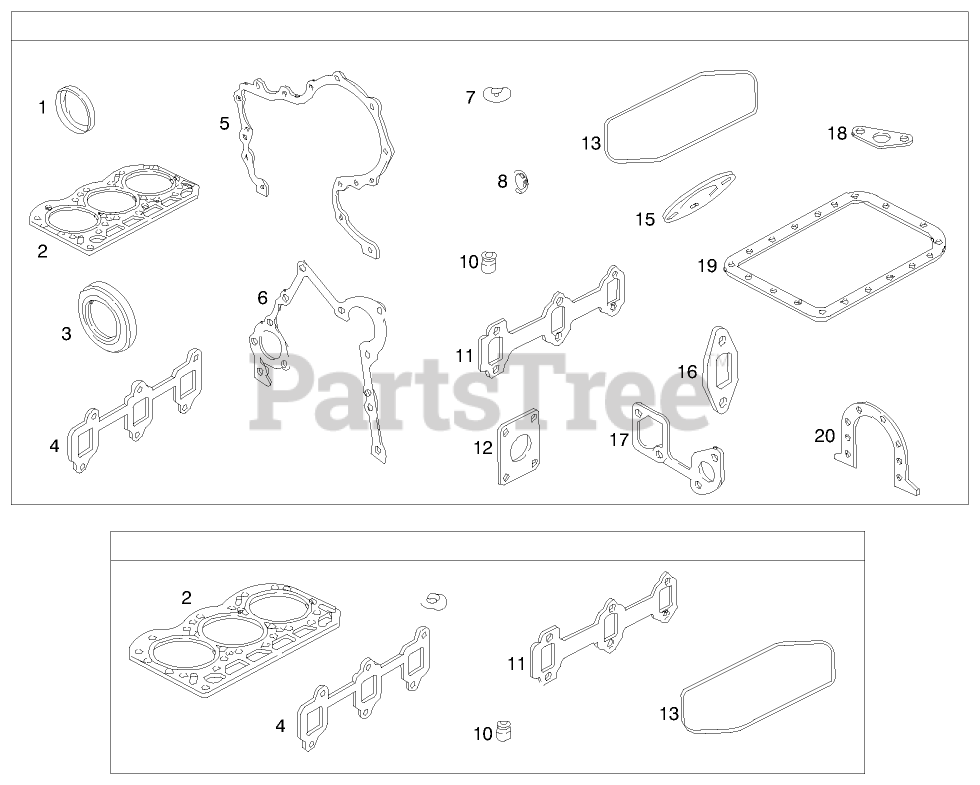

73590 (523 Dxi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) Engine Assembly (serial No. 99000001-9900130)(model 73590) 12 Parts Diagram

Garden Tractor

Engine Assembly (serial No. 99000001-9900130)(model 73590) 12 Parts Diagram

  • Title

1

Toro 99-9003

SEAL-OIL

$146.99

$

Usually ships in 3-6 days

0

2

Toro 99-9673

GASKET-CYLINDER HEAD

$

$

Not available

3

Toro 99-9126

See Supercession: 115-2291
(Superseded to 115-2291)

$114.99

$

Usually ships in 3-6 days

0

4

Toro 99-9662

GASKET-INTAKE

$32.99

$

Usually ships in 3-6 days

0

5

Toro 99-9653

GASKET-COVER, GEAR

$53.99

$

Usually ships in 3-6 days

0

6

Toro 99-9136

GASKET-COVER, GEAR REDUCTION

$48.99

$

Usually ships in 3-6 days

0

7

Toro 99-9063

WASHER-SEAL

$36.99

$

Usually ships in 3-6 days

0

8

Toro 99-9645

See Supercession: 99-9249
(Superseded to 99-9249)

$14.99

$

In Stock, only 4 left!

0

9

Toro 99-9678

See Supercession: 115-2339
(Superseded to 115-2339)

$

$

Not available

10

Toro 99-9643

SEAL-VALVE

$

$

Not available

11

Toro 99-9178

GASKET-EXHAUST

$70.99

$

Usually ships in 3-6 days

0

12

Toro 99-9179

GASKET-EXHAUST

$66.99

$

Usually ships in 3-6 days

0

13

Toro 99-9073

GASKET-COVER, ROCKER

$64.99

$

In Stock, only 1 left!

0

14

Toro 99-9679

See Supercession: 107-9907
(Superseded to 107-9907)

$

$

Not available

15

Toro 99-9163

GASKET-HOUSING, OUTLET

$16.99

$

Usually ships in 3-6 days

0

16

Toro 99-9166

GASKET-HOUSING, INLET

$21.99

$

Usually ships in 3-6 days

0

17

Toro 99-9168

GASKET-PUMP, WATER

$19.99

$

Usually ships in 3-6 days

0

18

Toro 99-9120

GASKET-STRAINER, OIL

$

$

Not available

19

Toro 99-9121

GASKET-PAN, OIL

$86.99

$

In Stock, only 1 left!

0

20

Toro 99-9021

GASKET-RETAINER

$19.99

$

Usually ships in 3-6 days

0
