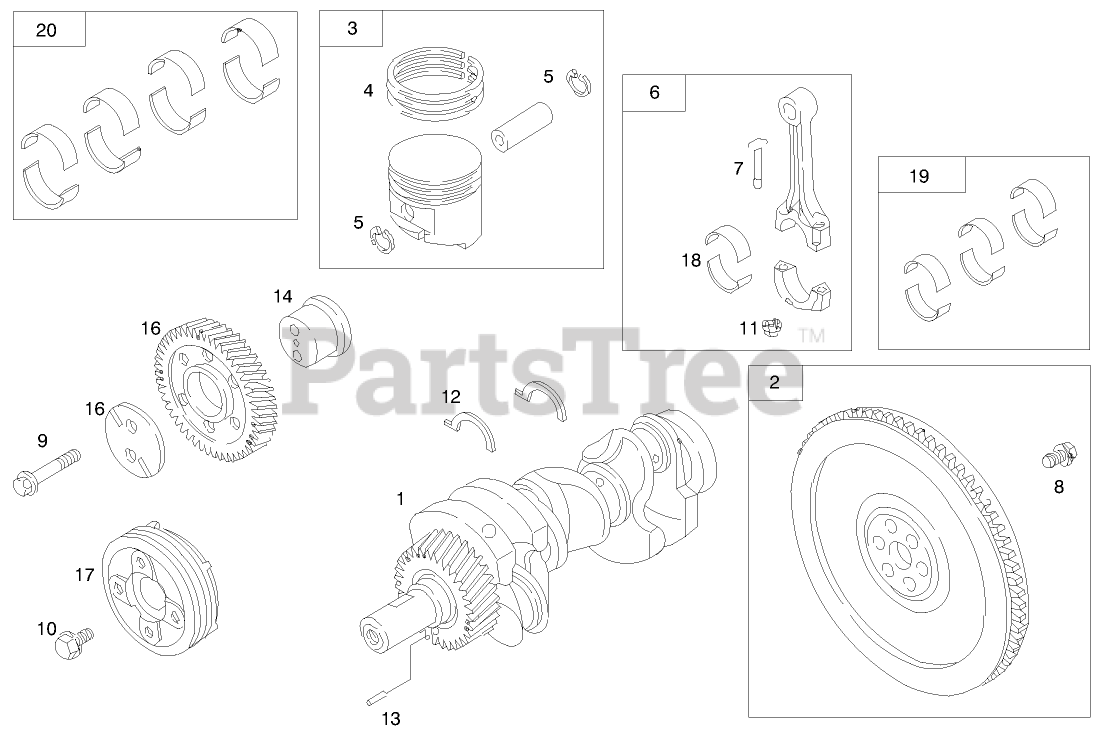

73590 (523 Dxi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) Engine Assembly (serial No. 99000001 Up)(model 73552) Engine Assembly (serial No. 99001001 Up)(model 73590) 2 Parts Diagram

Garden Tractor

Engine Assembly (serial No. 99000001 Up)(model 73552) Engine Assembly (serial No. 99001001 Up)(model 73590) 2 Parts Diagram

  • Title

1

Toro 99-9603

See Supercession: 105-9339
(Superseded to 105-9339)

$3293.99

$

Usually ships in 3-6 days

0

2

Toro 99-9604

See Supercession: 99-9267
(Superseded to 99-9267)

$654.99

$

Usually ships in 3-6 days

0

3

Toro 99-9605

PISTON ASM

$

$

Not available

4

Toro 99-9606

RING SET

$209.99

$

Usually ships in 3-6 days

0

5

Toro 99-9607

LOCK-PIN, PISTON

$15.99

$

Usually ships in 3-6 days

0

6

Toro 99-9608

SEE PARTS BULLETIN #949

$

$

Not available

7

Toro 99-9030

SCREW

$23.99

$

Usually ships in 3-6 days

0

8

Toro 99-9031

SCREW-HEX

$27.99

$

Usually ships in 3-6 days

0

9

Toro 99-9032

SCREW-HEX

$

$

Not available

10

Toro 99-9033

SCREW-HEX

$

$

Not available

11

Toro 99-9034

NUT-HEX

$12.99

$

Usually ships in 3-6 days

0

12

Toro 99-9035

SHIM-ENDPLAY

$116.99

$

Usually ships in 3-6 days

0

13

Toro 99-9037

PIN-LOCATING

$21.99

$

Usually ships in 3-6 days

0

14

Toro 99-9609

GEAR-DRIVE

$420.99

$

Usually ships in 3-6 days

0

15

Toro 99-9039

SHAFT-GEAR

$

$

Not available

16

Toro 99-9040

PLATE-GEAR, IDLER

$24.99

$

Usually ships in 3-6 days

0

17

Toro 99-9692

See Supercession: 99-9041
(Superseded to 99-9041)

$224.99

$

Usually ships in 3-6 days

0

18

Toro 99-9042

See Supercession: 117-4893
(Superseded to 117-4893)

$125.99

$

In Stock, only 1 left!

0

19

Toro 99-9043

See Supercession: 117-4893
(Superseded to 117-4893)

$125.99

$

In Stock, only 1 left!

0

20

Toro 99-9045

MAIN BEARING SET (SET OF 8)

$

$

Not available
