73590 (523 Dxi) - Toro Garden Tractor (SN: 210000001 - 210999999) (2001) ENGINE ASSEMBLY Parts Diagram

Garden Tractor

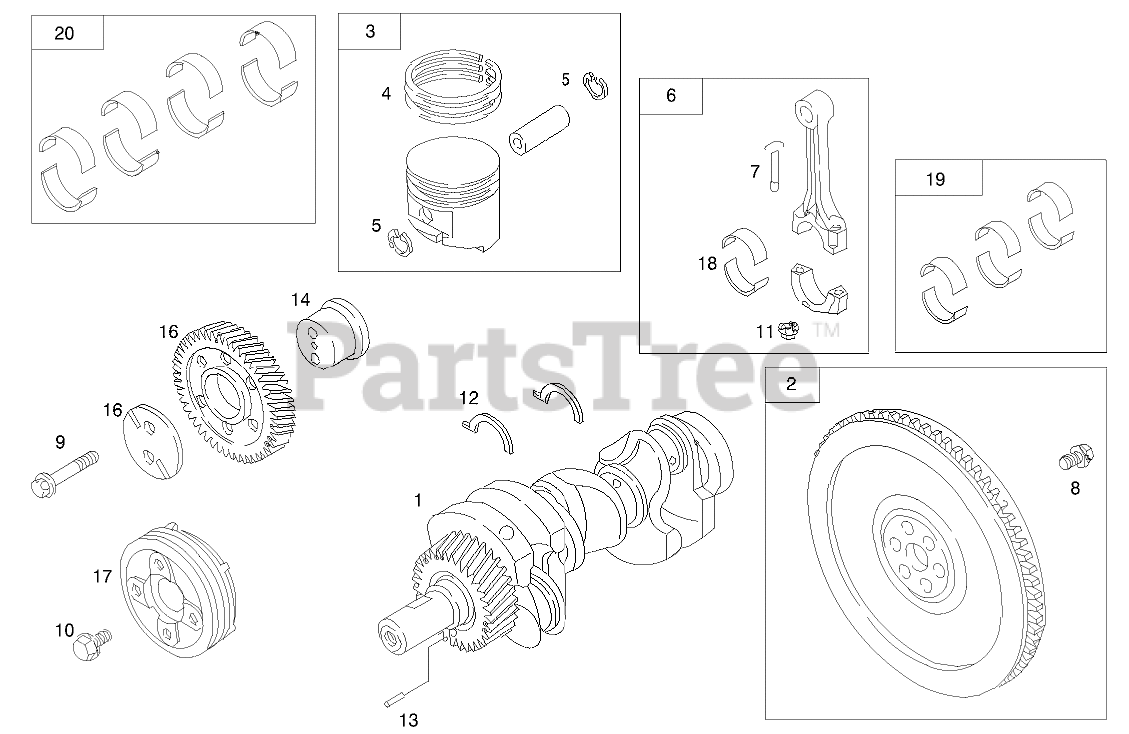

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 99-9603

Crankshaft
(Superseded to 105-9339)

$2709.99

$

Usually ships in 3-6 days

0

2

Toro 99-9024

FLYWHEEL
(Superseded to 99-9267)

$638.99

$

Usually ships in 3-6 days

0

3

Toro 99-9605

PISTON ASM

$402.99

$

Usually ships in 3-6 days

0

4

Toro 99-9606

RING SET

$191.99

$

Usually ships in 3-6 days

0

4

Toro 100-5222

NIPPLE ASM

$

$

Not available

5

Toro 99-9607

LOCK-PIN, PISTON

$14.99

$

Usually ships in 3-6 days

0

5

Toro 100-5230

VALVE ASM

$

$

Not available

6

Toro 99-9608

ROD-CONNECTING

$

$

Not available

7

Toro 99-9030

SCREW-ROD, CONNECTING

$22.99

$

Usually ships in 3-6 days

0

8

Toro 99-9031

SCREW-HEX

$26.99

$

Usually ships in 3-6 days

0

9

Toro 99-9032

SCREW-HEX

$12.99

$

Usually ships in 3-6 days

0

9

Toro 99-9667

GASKET-SET

$545.99

$

Usually ships in 3-6 days

0

10

Toro 99-9033

SCREW-HEX

$

$

Not available

11

Toro 99-9034

NUT-HEX

$11.99

$

Usually ships in 3-6 days

0

12

Toro 99-9035

WASHER-THRUST

$114.99

$

Usually ships in 3-6 days

0

13

Toro 99-9037

PIN-LOCATING

$20.99

$

Usually ships in 3-6 days

0

14

Toro 99-9609

GEAR-DRIVE

$384.99

$

Usually ships in 3-6 days

0

14

Toro 99-9668

VALVE OVERHAUL KIT

$313.99

$

Usually ships in 3-6 days

0

15

Toro 99-9039

SHAFT-GEAR

$180.99

$

Usually ships in 3-6 days

0

16

Toro 99-9040

PLATE-GEAR, IDLER

$22.99

$

Usually ships in 3-6 days

0

17

Toro 99-9692

Pulley-Crankshaft
(Superseded to 99-9041)

$184.99

$

Usually ships in 3-6 days

0

18

Toro 99-9042

BEARING-ROD
(Superseded to 117-4893)

$103.99

$

In Stock, only 1 left!

0

19

Toro 99-9043

SET-BEARING, ROD
(Superseded to 117-4893)

$103.99

$

In Stock, only 1 left!

0

20

Toro 99-9045

SET-BEARING, MAIN (SET OF 8)

$

$

Not available
