73590 (523 Dxi) - Toro Garden Tractor (SN: 210000001 - 210999999) (2001) ENGINE ASSEMBLY Parts Diagram

Garden Tractor

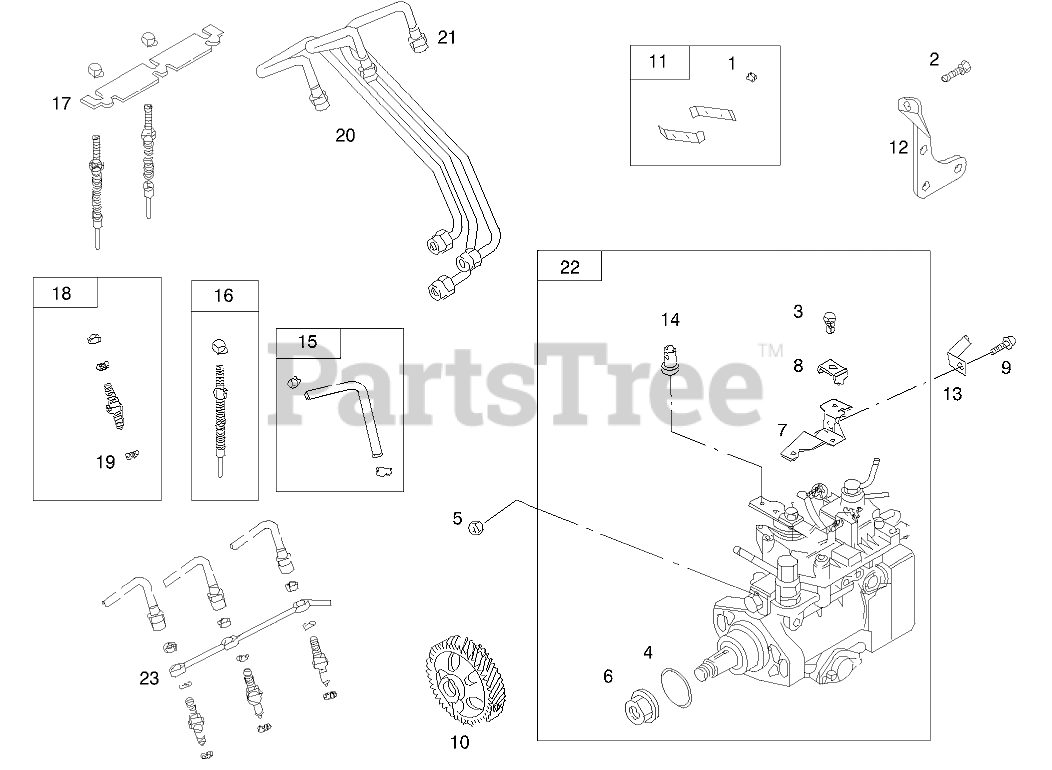

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 99-9004

SCREW-HEX

$14.99

$

Usually ships in 3-6 days

0

2

Toro 99-9616

SCREW-HEX

$11.99

$

Usually ships in 3-6 days

0

3

Toro 99-9056

SCREW-HEX

$11.99

$

Usually ships in 3-6 days

0

4

Toro 99-9618

O-RING

$13.99

$

Usually ships in 3-6 days

0

4

Toro 100-5222

NIPPLE ASM

$

$

Not available

5

Toro 99-9619

NUT-HEX, METRIC

$9.49

$

Usually ships in 3-6 days

0

5

Toro 100-5230

VALVE ASM

$

$

Not available

6

Toro 99-9620

NUT-HEX, METRIC

$10.99

$

Usually ships in 3-6 days

0

7

Toro 99-9621

BRACKET-CLAMP, CASING

$

$

Not available

8

Toro 99-9194

CLAMP-CASING

$5.99

$

Usually ships in 3-6 days

0

9

Toro 99-9623

SCREW-HEX

$11.99

$

Usually ships in 3-6 days

0

9

Toro 99-9667

GASKET-SET

$545.99

$

Usually ships in 3-6 days

0

10

Toro 99-9624

GEAR-DRIVE

$390.99

$

Usually ships in 3-6 days

0

11

Toro 99-9625

CLAMP

$50.99

$

Usually ships in 3-6 days

0

12

Toro 99-9626

BRACKET-SUPPORT

$

$

Not available

13

Toro 99-9627

Bracket-Support
(Superseded to 99-9647)

$30.99

$

In Stock, Qty 16

0

14

Toro 99-9628

CLAMP-SWIVEL

$18.99

$

Usually ships in 3-6 days

0

14

Toro 99-9668

VALVE OVERHAUL KIT

$313.99

$

Usually ships in 3-6 days

0

15

Toro 99-9629

HOSE / CLAMP ASM

$58.99

$

Usually ships in 3-6 days

0

15

Toro 99-9039

SHAFT-GEAR

$180.99

$

Usually ships in 3-6 days

0

16

Toro 99-9630

PLUG-GLOW
(Superseded to 114-4695)

$167.99

$

Usually ships in 3-6 days

0

17

Toro 99-9631

STRAP-PLUG, GLOW

$45.99

$

Usually ships in 3-6 days

0

18

Toro 99-9632

NOZZLE-INJECTOR

$618.99

$

Usually ships in 3-6 days

0

19

Toro 99-9633

SEAT-INJECTOR

$14.99

$

Usually ships in 3-6 days

0

20

Toro 99-9634

PIPE-INJECTOR, NO. 2

$111.99

$

Usually ships in 3-6 days

0

21

Toro 99-9635

PIPE-INJECTOR, NO. 3

$87.99

$

Usually ships in 3-6 days

0

22

Toro 99-9636

PUMP-INJECTION

$9375.99

$

Usually ships in 3-6 days

0

23

Toro 99-9637

PIPE-RETURN, FUEL

$83.99

$

Usually ships in 3-6 days

0
