7360 SS (590-603-100) - Cub Cadet Compact Tractor Axle, Rear Parts Diagram

Compact Tractor

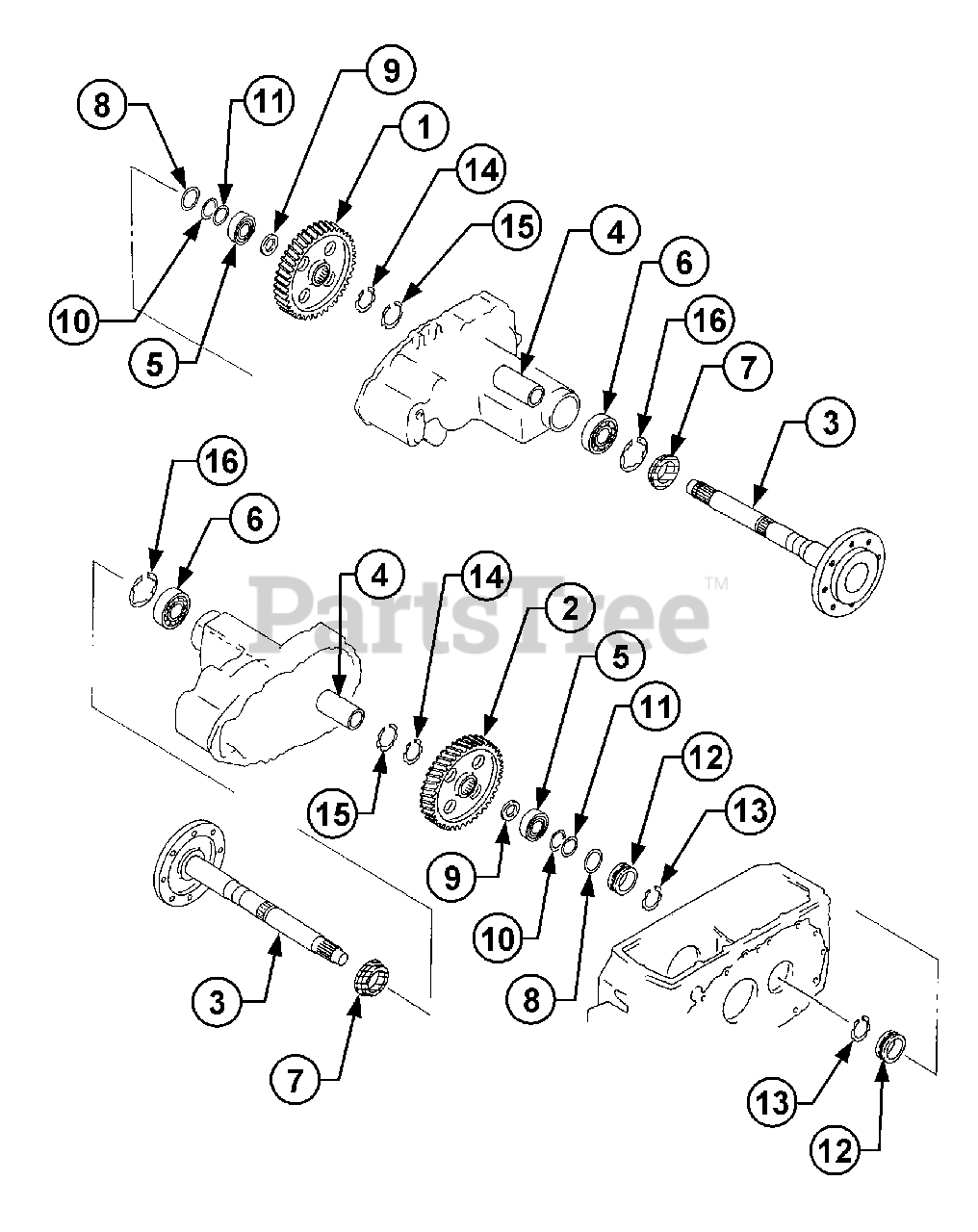

Axle, Rear Parts Diagram

  • Title

1

Cub Cadet MA-10311535000

Gear 59T

$

$

Not available

2

Cub Cadet MA-10311536000

Gear 59T

$

$

Not available

3

Cub Cadet MA-19611537AG0

Shaft

$

$

Not available

4

Cub Cadet MA-10311538000

Collar

$

$

Not available

5

Cub Cadet MA-10371521000

Bearing

$

$

Not available

6

Cub Cadet MA-07510660120

Bearing

$

$

Not available

7

Cub Cadet MA-10311541000

Seal, Oil

$

$

Not available

8

Cub Cadet MA-07300006216

Liner, t=1.6

$

$

Not available

9

Cub Cadet MA-10311542000

Liner, t=4.0

$

$

Not available

10

Cub Cadet MA-07300005202

Liner, t=0.2

$

$

Not available

11

Cub Cadet MA-07300005204

Liner, t=0.4

$

$

Not available

12

Cub Cadet MA-10311546000

Ring

$

$

Not available

13

Cub Cadet MA-07400005000

C-Ring

$

$

Not available

14

Cub Cadet MA-07400005501

C-Ring

$

$

Not available

15

Cub Cadet MA-07400006001

C-Ring

$

$

Not available

16

Cub Cadet MA-07410009501

C-Ring

$

$

Not available
