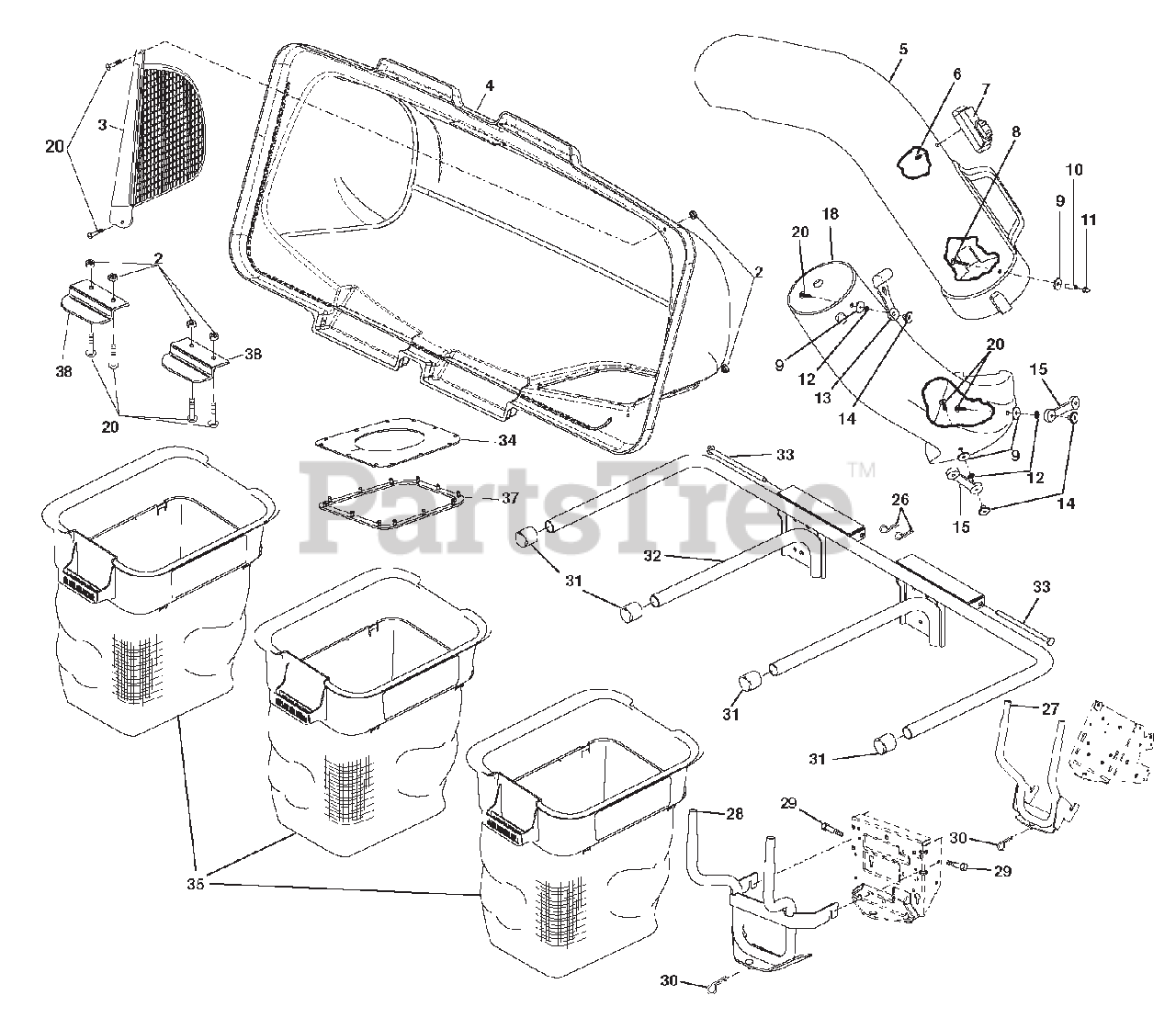

736021 - Ariens 54" Mower Grass Catcher Repair Parts Parts Diagram

54" Mower Grass Catcher

Repair Parts Parts Diagram

  • Title

2

Ariens 21546919

Nut, Crown lock #10-24

$

$

Not available

3

Ariens 21546953

Screen, Cover

$

$

Not available

4

Ariens 21546956

Cover Assembly (Includes 34, 3

Note: (Includes 34,37)

$

$

Not available

5

Ariens 21546949

Chute, Upper

$

$

Not available

6

Ariens 21546974

Screw, Special #10-14x1/2

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 21547018

FULL BAG INDICATROR

$

$

Not available

8

Ariens 21548036

SCREW #10-24 X 1-1/8"
(Superseded to 21546920)

$9.49

$

Usually ships in 4-12 days

0

9

Ariens 21546917

Washer 3/16x3/4x16 Ga.
(Superseded to 06400004)

$2.49

$

In Stock, Qty 5

0

10

Ariens 21548038

SPACER, SPLIT

$6.49

$

In Stock, Qty 8

0

11

Ariens 21548037

ACORN NUT #10-24
(Superseded to 06541300)

$3.99

$

In Stock, Qty 8

0

12

Ariens 21547022

LOCK WASHER

$4.99

$

In Stock, Qty 20+

0

13

Ariens 21547023

CHUTE LATCH, HUSQ BAGGER

$4.99

$

In Stock, Qty 20+

0

14

Ariens 21546924

Nut, Weld

$

$

Not available

15

Ariens 21546936

Latch Hook
(Superseded to 597000601)

$4.99

$

In Stock, Qty 12

0

18

Ariens 21546950

Chute, Lower

$155.99

$

Usually ships in 4-12 days

0

20

Ariens 21546976

Screw #10-24 x 5/8
(Superseded to 06111100)

$0.99

$

In Stock, Qty 16

0

26

Ariens 21547907

RETAINER.SPRING

$

$

Not available

27

Ariens 21546964

Support Assembly

$

$

Not available

28

Ariens 21548039

SUPPORT ASSEMBLY

$

$

Not available

29

Ariens 21546943

Shoulder Bolt,Self Tapping

$

$

Not available

30

Ariens 21547196

Retainer Spring Yellow

$

$

Not available

31

Ariens 21546742

Clip, Hairpin
(Superseded to 06712900)

$5.99

$

In Stock, only 4 left!

0

32

Ariens 21546963

Bagger, Frame

$

$

Not available

33

Ariens 21546954

Pin, Hinge

$

$

Not available

34

Ariens 21546951

Gasket, Cover

$17.99

$

Usually ships in 4-12 days

0

35

Ariens 21546957

Container

$100.99

$

Usually ships in 4-12 days

0

37

Ariens 21546952

Seal, Cover

$9.99

$

Usually ships in 4-12 days

0

38

Ariens 21546929

Latch Handle, Cover

$

$

Not available

- -

Ariens 21546971

Owner's Manual, English/French

$

$

Not available

- -

Ariens 21546972

Owner's Manual, Spanish

$

$

Not available
