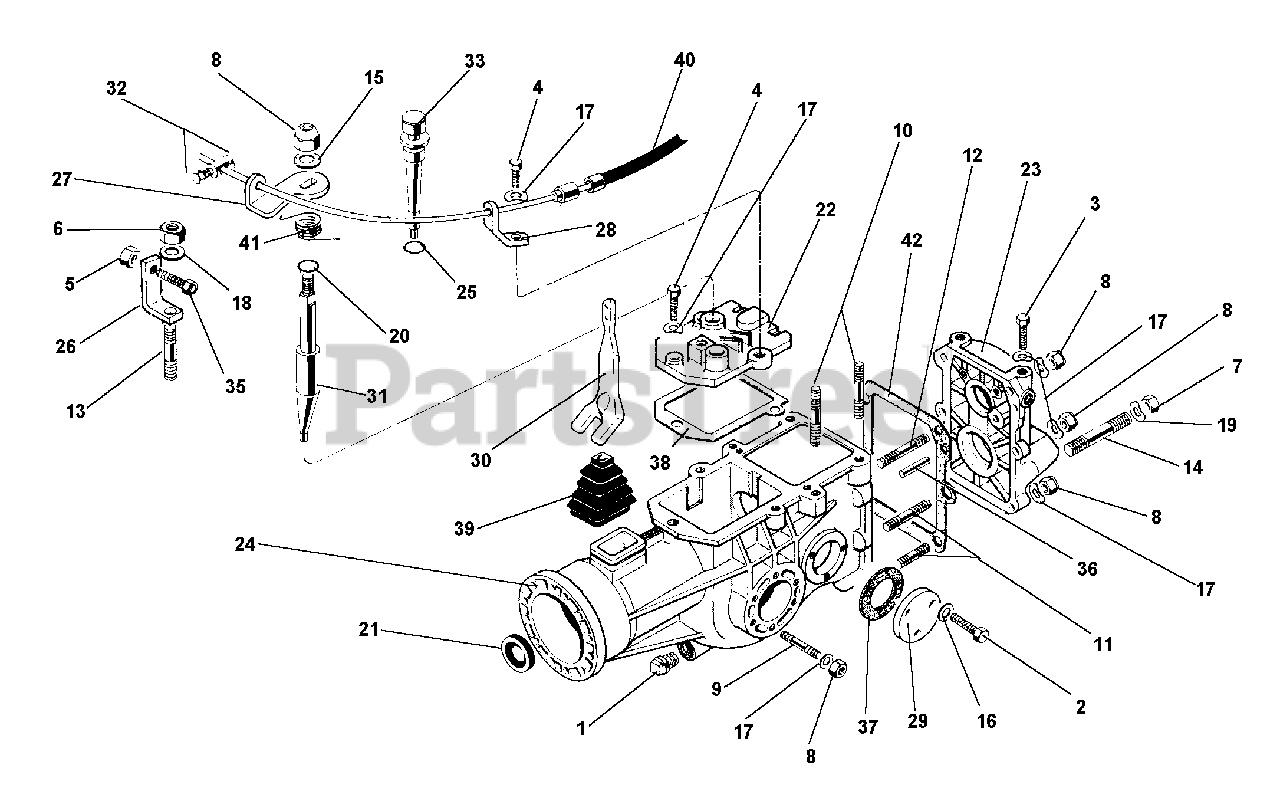

737 - BCS America Two-Wheeled Tractor Gearbox (SN: 14276 - Above) Parts Diagram

Two-Wheeled Tractor

Gearbox (SN: 14276 - Above) Parts Diagram

  • Title

1

BCS America 300.40001

PLUG 1/4 GAS

$5.49

$

In Stock, only 2 left!

0

2

BCS America 31111090

SCREW TE M6 X 10 UNI 5739 5S

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 31112150

SCREW M8 X 20

$1.49

$

In Stock, only 2 left!

0

4

BCS America 311.12152

SCREW TE M8 X 30

$1.49

$

In Stock, Qty 5

0

5

BCS America 31211080

NUT M8

$0.99

$

In Stock, Qty 11

0

6

BCS America 31211100

NUT M10

$1.49

$

In Stock, only 2 left!

0

7

BCS America 312.21121

NUT M12 X 1.25

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

9

BCS America 31312080

STUD M8 X 46 X 20 X 12

$1.99

$

In Stock, only 1 left!

0

10

BCS America 313.12082

STUD M8 X 38 X 14 X 20

$1.99

$

In Stock, only 3 left!

0

11

BCS America 313.12083

STUD M8 X 46 X 16 X 16

$2.99

$

In Stock, Qty 6

0

12

BCS America 313.12084

STUD M8 X 58 X 16 X 16

$2.49

$

Usually ships in 5-8 days

0

13

BCS America 313.12101

STUD M10 X 37 X 19 X 15

$7.99

$

Usually ships in 5-8 days

0

14

BCS America 313.12125

STUD

$4.49

$

In Stock, only 3 left!

0

15

BCS America 314.11084

FLAT WASHER 8.4

$0.99

$

In Stock, only 4 left!

0

16

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

17

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 11

0

18

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, only 3 left!

0

19

BCS America 31423130

WASHER, LOCK 13

$1.49

$

Usually ships in 5-8 days

0

20

BCS America 38111400

O-RING 2056 14.00 X 1.78

$0.99

$

Usually ships in 5-8 days

0

21

BCS America 38211500

OIL SEAL

$8.49

$

In Stock, only 1 left!

0

22

BCS America 531.43875

GEARBOX COVER

$85.99

$

In Stock, only 1 left!

0

23

BCS America 531.47477

REAR COVER

$167.00

$

Usually ships in 5-8 days

0

24

BCS America 531.496

GEAR BOX

$

$

Currently unavailable

25

BCS America 551.02678

RUBBER RING

$1.49

$

In Stock, Qty 5

0

26

BCS America 561.43878

BRACKET CLUTCH CONTRAST

$33.99

$

Usually ships in 5-8 days

0

27

BCS America 56143880

LEVER RELEASE

$18.99

$

Usually ships in 5-8 days

0

28

BCS America 561.43883

CONTRAST DIFFERENTIAL SHEATH

$14.99

$

Usually ships in 5-8 days

0

29

BCS America 56147520

SIDE COVER

$11.99

$

Usually ships in 5-8 days

0

30

BCS America 562.43113

CLUTCH LEVER

$40.99

$

Usually ships in 5-8 days

0

31

BCS America 564.43871

ROD

$111.99

$

Usually ships in 5-8 days

0

32

BCS America 580.02429

CLAMP, CABLE

$5.99

$

Usually ships in 5-8 days

0

33

BCS America 580.02666

CAP, WITH MEASURING ROD

$28.99

$

Usually ships in 5-8 days

0

34

BCS America 580.42167

END, CABLE

$2.99

$

Usually ships in 5-8 days

0

35

BCS America 580.42202

SCREW, ADJUSTING M8

$6.99

$

Usually ships in 5-8 days

0

36

BCS America 580.43053

PARALLEL PIN D 6 X 20

$1.49

$

Usually ships in 5-8 days

0

37

BCS America 580.43069

GASKET

$1.99

$

In Stock, only 4 left!

0

38

BCS America 580.43117

GASKET, COVER

$2.99

$

In Stock, only 2 left!

0

39

BCS America 580.43129

BELLOWS

$24.99

$

In Stock, only 1 left!

0

40

BCS America 580.43216

CABLE CLUTCH

$25.99

$

In Stock, only 3 left!

0

41

BCS America 580.43881

SPRING

$7.99

$

Usually ships in 5-8 days

0

42

BCS America 580.49604

COVER GASKET

$

$

Not available
