737 - BCS America Two-Wheeled Tractor Steering Column (SN: 10000 - 14275) Parts Diagram

Two-Wheeled Tractor

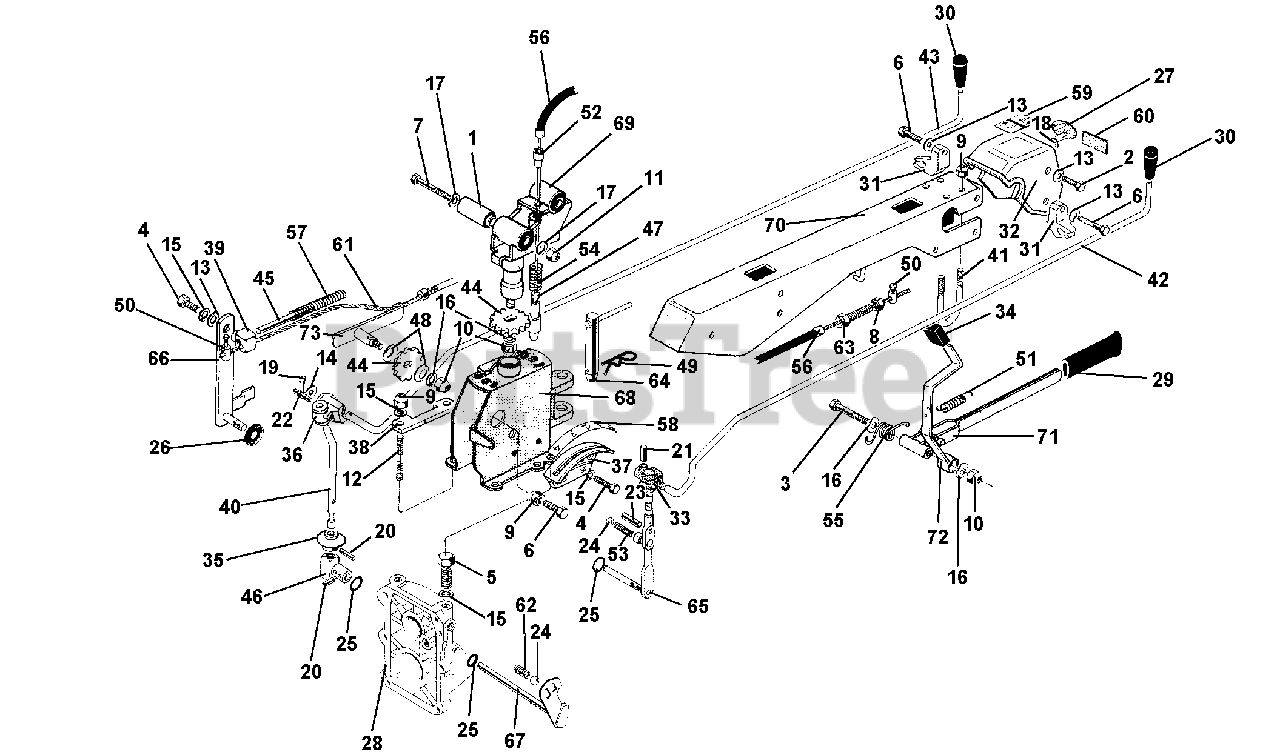

Steering Column (SN: 10000 - 14275) Parts Diagram

  • Title

1

BCS America 30010120

SILENTBLOCK

$35.99

$

In Stock, only 1 left!

0

2

BCS America 311.11151

SCREW M8 X 16

$1.99

$

In Stock, only 4 left!

0

3

BCS America 311.11225

SCREW TE M10 X 90

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 311.12149

SCREW M8 X 12

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 31112150

SCREW M8 X 20

$1.49

$

In Stock, only 2 left!

0

6

BCS America 311.12153

SCREW M8 X 35

$1.49

$

In Stock, Qty 5

0

7

BCS America 311.12295

SCREW TE M12 X 95 5739 8G

$2.49

$

Usually ships in 5-8 days

0

8

BCS America 31211060

NUT M6

$0.99

$

In Stock, Qty 8

0

9

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

10

BCS America 312.41101

NUT, SELF LOCKING M10 LOW

$1.49

$

Usually ships in 5-8 days

0

11

BCS America 312.41121

NUT, SELF LOCKING M12 LOW

$1.49

$

Usually ships in 5-8 days

0

12

BCS America 313.12082

STUD M8 X 38 X 14 X 20

$1.99

$

In Stock, only 3 left!

0

13

BCS America 314.11084

WASHER, FLAT 8.4

$0.99

$

In Stock, Qty 5

0

14

BCS America 314.11104

WASHER P10.5 X 18

$0.99

$

In Stock, Qty 9

0

15

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

16

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, only 3 left!

0

17

BCS America 31423130

WASHER, LOCK 13

$1.49

$

In Stock, only 2 left!

0

18

BCS America 314.40004

WASHER, LOCK FOR PINS

$0.99

$

In Stock, Qty 10

0

19

BCS America 341.10028

COTTER PIN

$0.99

$

In Stock, Qty 9

0

20

BCS America 34213020

LOCKING PIN 4 X 20 SPIRAL

$1.49

$

In Stock, Qty 5

0

21

BCS America 342.13022

PIN, LOCKING SW 3 X 22 SPIRAL

$1.49

$

In Stock, only 4 left!

0

22

BCS America 342.13024

LOCKING PIN 4 X 24 SPIRAL

$1.49

$

In Stock, Qty 5

0

23

BCS America 342.13025

LOCKING PIN SPIRAL

$1.49

$

In Stock, only 4 left!

0

24

BCS America 379.11532

BALL 15/32 RIV RB-11.906

$1.49

$

In Stock, only 3 left!

0

25

BCS America 381.11191

O-RING 115 11.91 X 2.62

$0.99

$

In Stock, only 3 left!

0

26

BCS America 382.11201

SEAL, OIL 12 X 19 X 5 STANDARD

$6.49

$

Usually ships in 5-8 days

0

27

BCS America 530.48656

MARK OVAL

$10.99

$

Usually ships in 5-8 days

0

28

BCS America 531.47476

REAR COVER

$257.99

$

Usually ships in 5-8 days

0

29

BCS America 551.02714

KNOB

$14.99

$

Usually ships in 5-8 days

0

30

BCS America 551.42076

KNOB

$5.99

$

Usually ships in 5-8 days

0

31

BCS America 55243340

SUPPORT CONTROL ROD CUT

$

$

Not available

32

BCS America 552.47636

STEERING COLUMN INSTRUM. PANEL

$32.99

$

Usually ships in 5-8 days

0

33

BCS America 552.47644

GEARBOX ARTICULATION

$24.99

$

Usually ships in 5-8 days

0

34

BCS America 552.48072

KNOB REDUCTION UNIT LEVER

$5.49

$

Usually ships in 5-8 days

0

35

BCS America 552.48378

P.T.O. STOP RING

$32.99

$

Usually ships in 5-8 days

0

36

BCS America 552.48379

P.T.O. ARTICULATION

$8.99

$

In Stock, only 3 left!

0

37

BCS America 56147550

GEARBOX SELECTOR

$51.99

$

Usually ships in 5-8 days

0

38

BCS America 56147560

REVERSE SPEED LEVER DOG

$9.99

$

Usually ships in 5-8 days

0

39

BCS America 561.47574

REVERSER BLOCK

$31.99

$

Usually ships in 5-8 days

0

40

BCS America 561.47581

PTO CONTROL LEVER

$45.99

$

Usually ships in 5-8 days

0

41

BCS America 561.47641

HANDLEBAR U-BOLT

$6.49

$

Usually ships in 5-8 days

0

42

BCS America 561.47646

GEARBOX CONTROL ROD

$52.99

$

In Stock, only 1 left!

0

43

BCS America 561.47648

PTO CONTROL ROD

$45.99

$

Usually ships in 5-8 days

0

44

BCS America 561.47664

REVERSE GEAR

$19.99

$

Usually ships in 5-8 days

0

45

BCS America 561.47672

GUIDE PIN

$10.99

$

Usually ships in 5-8 days

0

46

BCS America 563.47578

P.T.O. JOINT

$40.99

$

In Stock, only 1 left!

0

47

BCS America 564.47607

STEERING COLUMN PIN

$49.99

$

Usually ships in 5-8 days

0

48

BCS America 571.48509

PROTECTION END D 32

$4.49

$

Usually ships in 5-8 days

0

49

BCS America 580.02052

PIN

$1.99

$

In Stock, only 3 left!

0

50

BCS America 580.02429

CLAMP, CABLE

$5.99

$

Usually ships in 5-8 days

0

51

BCS America 580.26321

LEVER RETURN SPRING

$57.99

$

Usually ships in 5-8 days

0

52

BCS America 580.42167

END, SHEATH

$2.99

$

In Stock, only 1 left!

0

53

BCS America 580.43176

SPRING

$2.49

$

Usually ships in 5-8 days

0

54

BCS America 580.47606

STEERING COLUMN RELEASE SPRING

$78.99

$

Usually ships in 5-8 days

0

55

BCS America 580.47624

HANDLEBAR RELEASE SPRING

$8.20

$

Usually ships in 5-8 days

0

56

BCS America 580.47628

WIRE AND SHEATH L 90

$5.99

$

Usually ships in 5-8 days

0

57

BCS America 580.47671

REVERSER SPRING

$16.99

$

Usually ships in 5-8 days

0

58

BCS America 580.47728

SPEED STICKER

$

$

Currently unavailable

59

BCS America 580.47729

DECAL FOR STEERING COLUMN

$

$

Currently unavailable

60

BCS America 580.47737

DECAL 737

$9.99

$

Usually ships in 5-8 days

0

61

BCS America 580.48297

WIRE SHEATH L-1280 CLUTCH/BR.

$29.99

$

Usually ships in 5-8 days

0

62

BCS America 580.48369

P.T.O. SPRING

$45.99

$

Usually ships in 5-8 days

0

63

BCS America 581.47704

ADJUSTING SCREW

$9.49

$

In Stock, only 1 left!

0

64

BCS America 590.42768

PIN

$37.99

$

Usually ships in 5-8 days

0

65

BCS America 590.47553

GEARBOX LEVER

$63.40

$

Usually ships in 5-8 days

0

66

BCS America 59047570

REVERSER LEVER

$71.99

$

Usually ships in 5-8 days

0

67

BCS America 590.47575

PTO PIN

$68.26

$

Usually ships in 5-8 days

0

68

BCS America 590.47585

STEERING COLUMN SUPPORT

$

$

Currently unavailable

69

BCS America 590.47595

STEERING COLUMN COUPLING

$

$

Currently unavailable

70

BCS America 59047610

STEERING COLUMN

$294.99

$

Usually ships in 5-8 days

0

71

BCS America 59047620

HANDLEBAR RELEASE LEVER

$117.99

$

Usually ships in 5-8 days

0

72

BCS America 590.47625

STEERING COLUMN LOCKING LEVER

$57.99

$

Usually ships in 5-8 days

0

73

BCS America 590.47666

REVERSER POSITION LEVER

$39.99

$

Usually ships in 5-8 days

0
