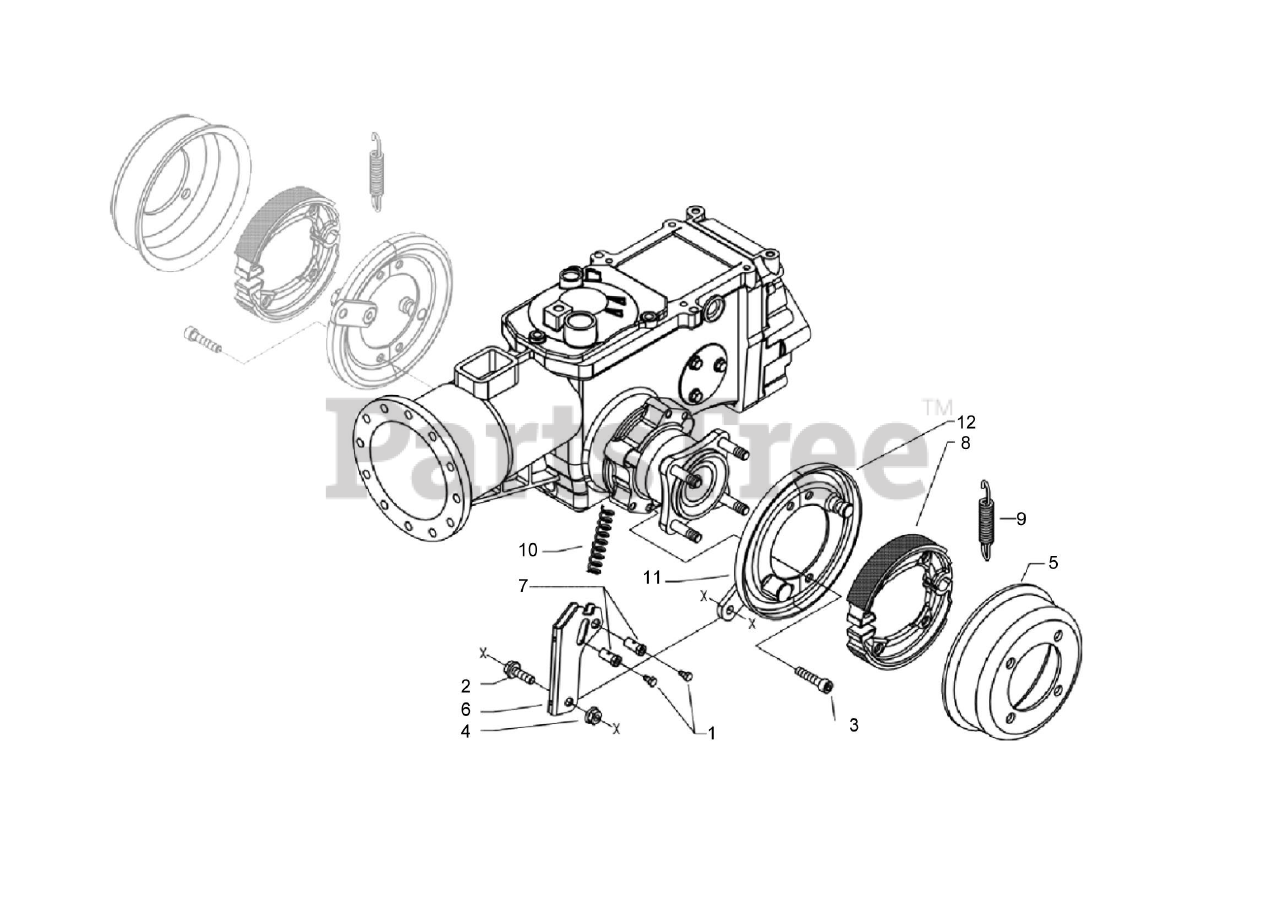

739 (739 PS) - BCS America Two-Wheeled Tractor, Power Safe Brakes (SN: 918324 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Brakes (SN: 918324 & Above) Parts Diagram

  • Title

1

BCS America 31112090

CAPSCREW M6X16

Note:

$0.99

$

In Stock, Qty 10

0

2

BCS America 31112166

SCREW TE M8X25

Note:

$1.49

$

Usually ships in 5-8 days

0

3

31152085

CAPSCREW M8X25

Note:

$

$

Not available

4

BCS America 31241084

LOCKNUT M8 FLANGED

Note:

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 56148218N

BRAKE DRUM

Note:

$

$

Currently unavailable

6

BCS America 56156831Z

FORK

Note:

$

$

Currently unavailable

7

56356840

SCREW, CLAMPING

Note:

$

$

Not available

8

58048214

SHOE

Note:

$

$

Not available

9

58048215

SPRING

Note:

$

$

Not available

10

BCS America 58056918

SPRING, STEERING COLUMN

Note:

$4.49

$

Usually ships in 5-8 days

0

11

BCS America 59048200N

LEVER,HALF DISC COMPLETE

Note:

$

$

Currently unavailable

12

BCS America 59048208N

PIN, HALF DISC COMPLETE

Note:

$

$

Currently unavailable
